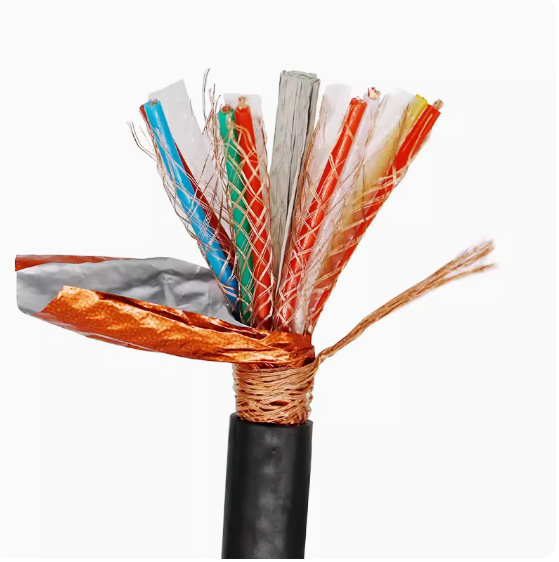

- 產品名稱：計算機電纜DJYPV Computer cable DJYPV
- 瀏覽：
- 添加時間：2024-03-19 16:38:51
- 推薦度：
簡介：
本產品適用于額定電壓500V及以下對于防干擾性要求較高的電子計算機[1]和自動化連接用電纜。電纜地線芯絕緣采用具有抗氧化性能的K型B類。
低密度聚乙烯聚乙烯的絕緣電阻高，耐電壓好，介電系數小和介質損耗溫度和變頻率的影響也小，不但能滿足傳輸性能的要求，而且能確保電纜的使用壽命。
為了減少回路間的相互串?dāng)_和外部干擾，電纜采用屏蔽結構。電纜的屏蔽要求是根據不同場合分別采用：對絞組合屏蔽、對絞組成電纜的總屏蔽、對絞組合屏蔽后總屏蔽等方法。
Introduction:
This product is suitable for electronic computers with a rated voltage of 500V and below, as well as cables for automation connections that require high anti-interference requirements. The insulation of the cable ground wire core adopts K-type B class with oxidation resistance.
Low density polyethylene has high insulation resistance, good voltage resistance, low dielectric coefficient, and minimal influence of medium loss temperature and frequency variation. It not only meets the requirements of transmission performance, but also ensures the service life of the cable.
In order to reduce mutual crosstalk and external interference between circuits, the cable adopts a shielding structure. The shielding requirements for cables are based on different occasions, using methods such as twisted pair combination shielding, total shielding of twisted pair composed cables, and total shielding after twisted pair combination shielding.
cable
屏蔽材料有圓銅線，銅帶、鋁帶/塑料復合帶三種。屏蔽對與屏蔽對具有較好的絕緣性能，電纜在使用中若屏蔽對屏蔽對之間出現電位差時，不會影響信號的傳輸質量There are three types of shielding materials: round copper wire, copper strip, aluminum strip/plastic composite strip. Shielded pairs have good insulation performance, and if there is a potential difference between shielded pairs during cable use, it will not affect the transmission quality of the signal.
技術參數：
DJYPVPR: Polyethylene insulated twisted copper wire braided shielded and overall shielded PVC sheathed flexible cable
產品額定電壓（U0/U）:300/500V
長期工作溫度為70℃
敷設時環境溫度不低于:固定敷設-40℃,非固定敷設-15℃
最小彎曲半徑：無鎧裝層應小于電纜外徑的6倍，帶鎧裝層的電纜應不小于電纜外徑的12倍
Technical parameters:
Rated voltage of the product (U0/U): 300/500V
Long term working temperature of 70 ℃
The ambient temperature during installation shall not be lower than -40 ℃ for fixed installation and -15 ℃ for non fixed installation
Minimum bending radius: The non armored layer should be less than 6 times the outer diameter of the cable, and the armored layer of the cable should be no less than 12 times the outer diameter of the cable
在20℃時用直流500V電壓試驗穩定充電1min后
絕緣電阻
應不小于2500MΩ·Km
各對絞屏蔽之間以及對絞屏蔽與總屏蔽之間應不斷路
After stable charging for 1 minute with a DC 500V voltage test at 20 ℃
insulation resistance
Should not be less than 2500M Ω· Km
There should be no open circuit between each twisted pair shield and between the twisted pair shield and the total shield
電纜的線芯和線芯之間以及屏蔽之間應經受50HZ，交流2000V電壓試驗5min不擊穿
The core of the cable, as well as the shielding between the cores, should withstand a 50Hz, 2000V AC voltage test for 5 minutes without breakdown
DJYPV：聚乙烯絕緣對絞銅線編織分屏蔽聚氯乙烯護套電纜
DJYPV: Polyethylene insulated twisted copper wire braided shielded PVC sheath cable
DJYVP：聚乙烯絕緣對絞銅線編織總屏蔽聚氯乙烯護套電纜
DJYVP: Polyethylene insulated twisted copper wire braided total shielding PVC sheath cable
DJYP2V：聚乙烯絕緣對絞銅帶分屏蔽聚氯乙烯護套電纜
DJYP2V: Polyethylene insulated twisted copper tape shielded PVC sheath cable
DJYVP2：聚乙烯絕緣對絞銅帶總屏蔽聚氯乙烯護套電纜
DJYVP2: Polyethylene insulated twisted copper tape with overall shielding and polyvinyl chloride sheath cable
DJYP2VP2：聚乙烯絕緣對絞銅帶分屏蔽及總屏蔽聚氯乙烯護套電纜
DJYP2VP2: Polyethylene insulated twisted copper tape with separate shielding and overall shielding PVC sheath cable
DJYP2VP2：聚乙烯絕緣對絞銅帶分屏蔽及總屏蔽聚氯乙烯護套電纜
DJYP2VP2: Polyethylene insulated twisted copper tape with separate shielding and overall shielding PVC sheath cable
DJYP3V：聚乙烯絕緣對絞鋁塑復合帶分屏蔽聚氯乙烯護套電纜
DJYP3V: Polyethylene insulated twisted aluminum-plastic composite tape with divided shielding PVC sheath cable
DJYVP3：聚乙烯絕緣對絞鋁塑復合帶總屏蔽聚氯乙烯護套電纜
DJYVP3: Polyethylene insulated twisted aluminum-plastic composite tape with overall shielding PVC sheath cable
DJYP3VP3：聚乙烯絕緣對絞鋁塑復合帶分屏蔽及總屏蔽聚氯乙烯護套電纜
DJYP3VP3: Polyethylene insulated twisted aluminum-plastic composite tape with partial shielding and total shielding PVC sheathed cable
DJYPVR：聚乙烯絕緣對絞銅線編織分屏蔽聚氯乙烯護套軟電纜
DJYPVR: Polyethylene insulated twisted copper wire braided shielded PVC sheathed flexible cable
DJYVPR：聚乙烯絕緣對絞銅線編織總屏蔽聚氯乙烯護套軟電纜
DJYVPR: Polyethylene insulated twisted copper wire braided total shielding PVC sheathed flexible cable
DJYPVPR：聚乙烯絕緣對絞銅線編織分屏蔽及總屏蔽聚氯乙烯護套軟電纜
DJYPVPR: Polyethylene insulated twisted copper wire braided shielded and overall shielded PVC sheathed flexible cable
DJYPVPR：聚乙烯絕緣對絞銅線編織分屏蔽及總屏蔽聚氯乙烯護套軟電纜
DJYPVPR: Polyethylene insulated twisted copper wire braided shielded and overall shielded PVC sheathed flexible cable
DJYP2VR：聚乙烯絕緣對絞銅帶分屏蔽聚氯乙烯護套軟電纜
DJYP2VR: Polyethylene insulated twisted copper tape shielded PVC sheathed flexible cable
