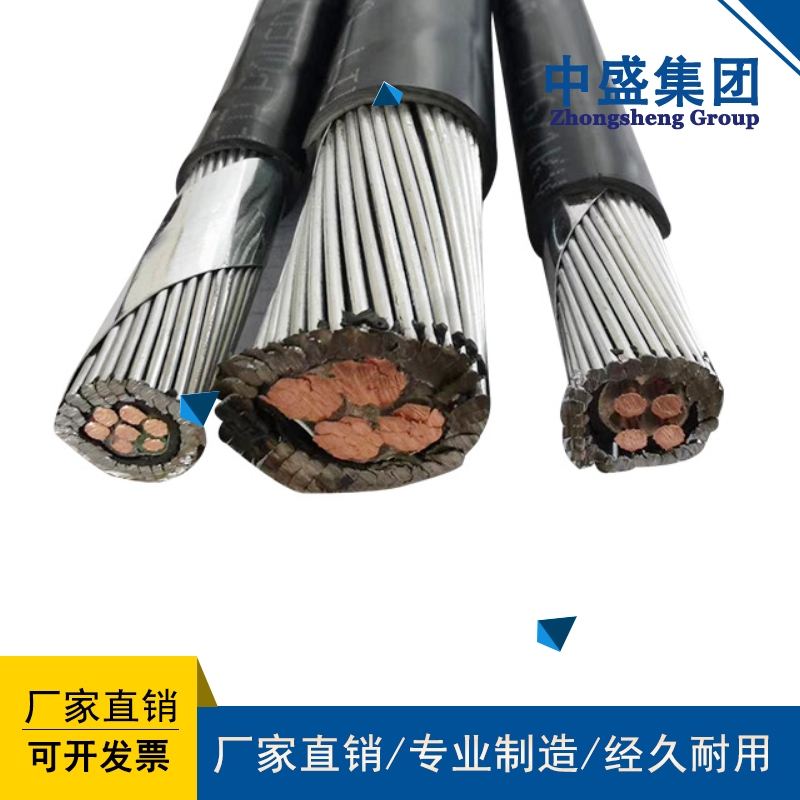

• 產品名稱：鎧裝控制軟電纜KVVRP3-32 Steel wire armored control flexible cable
• 瀏覽：
• 添加時間：2024-03-21 16:12:08
• 推薦度：
•

ZR-KVVRP32 3*1.5鋼絲鎧裝阻燃控制電纜 產品特點及用途

本產品按GB9330《塑料絕緣控制電纜》，IEC60227《額定電壓450/750V及以下聚氯乙烯絕緣電纜》以及IEC60502《額定電壓1-30kV擠包絕緣電力電纜及附件》等標準制造。
ZR-KVVRP32 3*1.5鋼絲鎧裝阻燃控制電纜-適用范圍
聚氯乙烯絕緣聚氯乙烯護套控制電纜適用于額定電壓450/750V及以下或0.6/1kV及以下控制、信號、保護及測量系統接線之用。

Product characteristics and applications of ZR-KVVRP32 3 * 1.5 steel wire armored flame-retardant control cable

This product is manufactured in accordance with standards such as GB9330 Plastic Insulated Control Cables,

IEC60227 PVC Insulated Cables with Rated Voltages of 450/750V and Below, and IEC60502 Squeezed Insulated

 Power Cables and Accessories with Rated Voltages of 1-30kV.

ZR-KVVRP32 3 * 1.5 steel wire armored flame-retardant control cable - Scope of application

PVC insulated PVC sheathed control cables are suitable for wiring control, signal, protection,

and measurement systems with rated voltages of 450/750V and below or 0.6/1kV and below.

ZR-KVVRP32 3*1.5鋼絲鎧裝阻燃控制電纜-使用特性

●工頻額定電壓Uo/U為450/750V或0.6/1kV?！耠娎|導體的允許長期***高工作溫度為70℃。
●電纜敷設時環境溫度應不低于0℃，若環境溫低于0℃時，應對電纜進行預熱。
●電纜的推薦允許彎曲半徑如下：
無鎧裝電纜，應不低于電纜外徑的6倍；
鎧裝或銅帶屏蔽電纜，應不低于電纜外徑的12倍；
屏蔽軟電纜，應不低于電纜外徑的6倍。

ZR-KVVRP32 3 * 1.5 steel wire armored flame-retardant control cable - Service characteristics

The rated power frequency voltage Uo/U is 450/750V or 0.6/1kV.

The maximum allowable long-term working temperature for cable conductors is 70 ℃.

When laying cables, the ambient temperature should not be lower than 0 ℃.

If the ambient temperature is lower than 0 ℃, the cables should be preheated.

The recommended allowable bending radius for cables is as follows:

Unarmored cables should not be less than 6 times the outer diameter of the cable;

Armored or copper tape shielded cables should not be less than 12 times the outer diameter of the cable;

Shielded flexible cables should not be less than 6 times the outer diameter of the cable.

阻燃控制電纜-電纜的型號、名稱

Flame retardant control cable - cable model and name

model

name

KVV

Copper core PVC insulated PVC sheathed control cable

KVVP

Copper core PVC insulated PVC sheathed braided shielded control cable

KVVP2

Copper core PVC insulated PVC sheathed copper tape shielded control cable

KVV22

Copper core PVC insulated PVC sheathed steel strip armored control cable

KVV32

Copper core PVC insulated PVC sheathed fine steel wire armored control cable

KVVR

Copper core PVC insulated PVC sheathed control flexible cable

KVVRP

Copper core PVC insulated PVC sheathed braided shielded control flexible cable

KVVP-22

Copper core PVC insulated PVC sheathed copper wire braided shielded steel tape armored control cable

KVVP2-22

Copper core PVC insulated PVC sheathed copper tape shielded steel tape armored control flexible cable

阻燃控制電纜-生產范圍 Flame retardant control cables - Production scope
