- 產品名稱：ZC-KX-HSFP2FP2高溫補償電纜High temperature compensation cable
- 瀏覽：
- 添加時間：2024-03-21 17:17:57
- 推薦度：

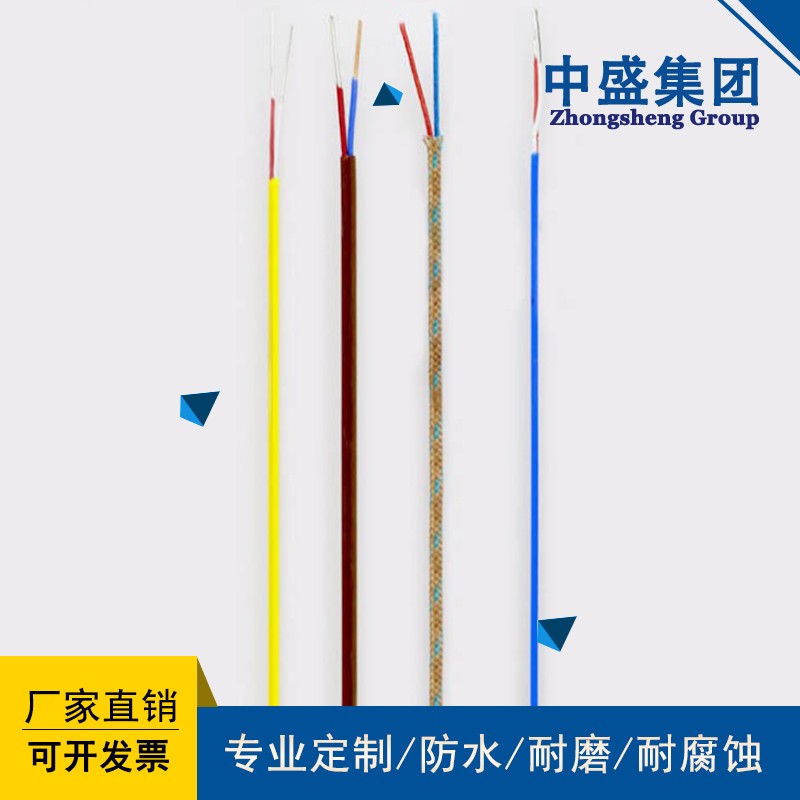

ZC-KX-HSFP2FP2高溫補償電纜具有與所匹配的熱電偶的熱電動勢的標稱值相同的一對帶有絕緣層的導線，用它們連接熱電偶與測量裝置，以補償它們與熱電偶連接處的溫度變化所產生的誤差。分為延長型和補償型兩種。
The ZC-KX-HSFP2FP2 high-temperature compensation cable has a pair of insulated wires with the same nominal value as the thermoelectric electromotive force of the matched thermocouple, which are used to connect the thermocouple to the measuring device to compensate for the errors caused by temperature changes at their connection with the thermocouple. It is divided into two types: extension type and compensation type.
適用于電力、冶金、石油、化工、輕紡等工業(yè)以及國防、科研等部門自動化測溫儀表的單點或多點連接。
Suitable for single or multi-point connection of automated temperature measuring instruments in industries such as power, metallurgy, petroleum, chemical, light textile, as well as national defense, scientific research, and other departments.
ZC-KX-HSFP2FP2高溫補償電纜使用特性：
使用溫度：耐熱級： -65 ℃ ~+200 ℃及 -65 ℃ ~+260 ℃兩種；
普通級： -40 ℃ ~+70 ℃及 -40 ℃ ~+105 ℃兩種；
***小彎曲半徑：補償導線：不小于導體外徑 8 倍；
補償電纜：有鎧裝時不小于電纜外徑 12 倍，無鎧裝時不小于電纜外徑6倍。
Usage characteristics of ZC-KX-HSFP2FP2 high-temperature compensation cable:
Usage temperature: Heat resistance level: -65 ℃~+200 ℃ and -65 ℃~+260 ℃;
Ordinary level: -40 ℃~+70 ℃ and -40 ℃~+105 ℃;
Minimum bending radius: Compensation wire: not less than 8 times the outer diameter of the conductor;
Compensation cable: not less than 12 times the outer diameter of the cable with armor, and not less
than 6 times the outer diameter of the cable without armor.
ZC-KX-HSFP2FP2高溫補償電纜規(guī)格參數：High temperature compensation cable specification parameters:
型號 model | 使用 分類 apply classification | 溫度范圍℃temperature range | 熱電動勢允差μV Thermoelectric electromotive force tolerance μ V | 測量端 溫度 Measurement end temperature ℃ | 往復電阻20℃長度為1m不大于Ω Reciprocating resistance at 20 ℃, with a length of 1m and no more than Ω | ||||
普通級Common | 準確級accuracy class | 0.5mm2 | 1.0mm2 | 1.5mm2 | 2.5mm2 | ||||
SC | G | 0～100 | ±60(±5.0℃) | ±30(±5.0℃) | 1000 | 0.10 | 0.05 | 0.03 | 0.02 |
H | 0～200 | ||||||||
KCA | G | 0～100 | ±100(±2.5℃) | ±60(±1.5℃) | 1000 | 1.40 | 0.70 | 0.47 | 0.28 |
H | 0～200 | 900 | |||||||
KCB | G | 0～100 | 900 | 1.04 | 0.70 | 0.47 | 0.28 | ||
KX | G | -20～100 | 900 | 2.20 | 1.10 | 0.73 | 0.44 | ||
H | -25～200 | 900 | |||||||
EX | G | -20～100 | ±200(±2.5℃) | ±120(±1.5℃) | 500 | 2.50 | 1.25 | 0.83 | 0.50 |
H | -25～200 | 500 | |||||||
JX | G | -20～100 | ±140(±2.5℃) | ±85(±1.5℃) | 500 | 1.30 | 0.65 | 0.43 | 0.26 |
H | -25～200 | 500 | |||||||
TX | G | -20～100 | ±60(±1.0℃) | ±30(±0.5℃) | 300 | 1.04 | 0.52 | 0.35 | 0.21 |
H | -25～200 | ±90(±1.5℃) | ±48(±0.8℃) | 300 | |||||
NC | G | 0～100 | ±100(±2.5℃) | ±60(±1.5℃) | 900 | 1.50 | 0.75 | 0.50 | 0.30 |
H | 0～200 | 900 | |||||||
NX | G | -20～100 | 900 | 2.86 | 1.43 | 0.95 | 0.57 | ||
H | -25～200 | 900 | |||||||
