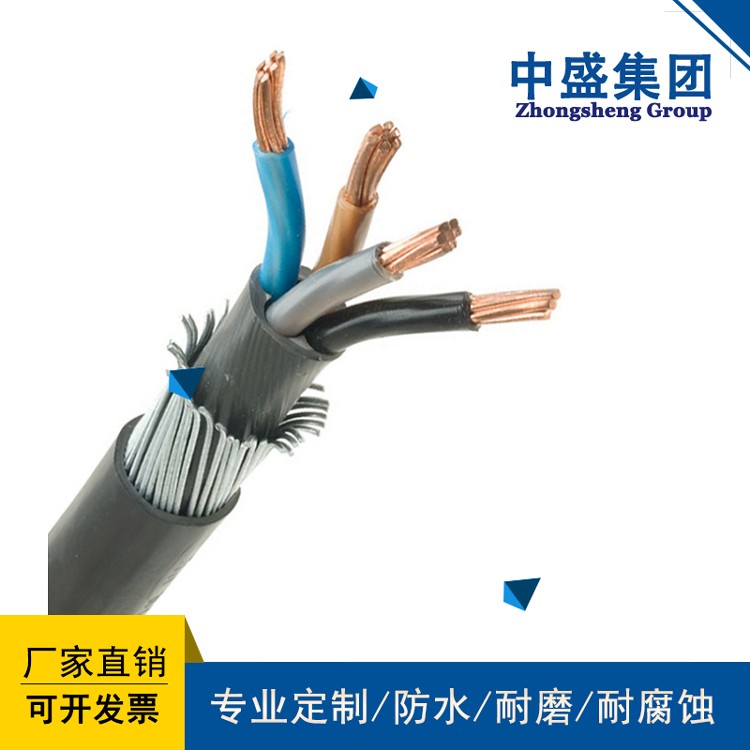

- 產品名稱：DJVP3VP3-32鎧裝計算機電纜Armored computer cable
- 瀏覽：
- 添加時間：2024-03-22 15:56:43
- 推薦度：
計算機電纜用途：本產品適用于額定電壓30/500v及以下防干擾性能要求較高的電子計算機、檢測儀器、儀表的連接。
使用條件：
Computer cable usage: This product is suitable for connecting electronic computers, testing instruments,
and instruments with high anti-interference performance requirements for rated voltage of 30/500V and below.
Usage conditions:
1.電纜導體的長期工作溫度：聚氯乙烯有70℃、105℃兩種；聚乙烯絕緣為70℃；交聯聚氯乙烯絕緣為90℃。1. Long term working temperature of cable conductors: PVC has two types: 70 ℃ and 105 ℃;
Polyethylene insulation at 70 ℃; Crosslinked polyvinyl chloride insulation is at 90 ℃.
2.電纜允許在環境溫度-40℃～50℃的條件下固定敷設使用，敷設時的環境應不底于0℃ 銅帶屏蔽結構的電纜，
敷設時的彎曲半徑應不小于電纜外徑的12倍，其他電纜敷設時的彎曲半徑應不小于電纜外徑的6倍2. Cables are allowed to be fixed an
d laid in environments with temperatures ranging from -40 ℃ to 50 ℃.
The laying environment should not be lower than that of cables with copper tape shielding structures at 0 ℃,
The bending radius during laying should not be less than 12 times the outer diameter of the cable,
and the bending radius during laying other cables should not be less than 6 times the outer diameter of the cable.
3. DJVP3VP3計算機電纜DJVP3VP3R計算機電纜價格
型號及結構特征 阻燃計算機屏蔽電纜也就是絞對屏蔽電纜
型號規格說明表序號項目代號說明
3. DJVP3VP3 Computer Cable DJVP3R Computer Cable Price
Model and structural characteristics: flame-retardant computer shielded cable, also known as twisted pair
shieldedcableModel Specification Description Table Number Item Code Description
1阻燃代號ZR
ZR
DZR一般阻燃
阻燃
低煙低鹵阻燃
1. Flame retardant code ZR
ZR
DZR general flame retardant
Flame retardant
Low smoke and low halogen flame retardant
2系列代號DJ電子計算機和電動儀表用
2 series code DJ for electronic computers and electric instruments
3絕緣材料Y
V
F聚乙烯PE
聚氯乙烯PVC
聚全氟乙丙烯
3 Insulation material Y
V
F polyethylene PE
Polyvinyl chloride PVC
Polyfluoroethylene propylene
4屏蔽材料P
P2
P3
A鋼絲編織
銅帶
鋁箔/塑料薄膜復合膜
涂塑鋁帶粘結屏蔽涂塑鋁帶粘結屏蔽
4 Shielding material P
P2
P3
A steel wire weaving
Copper strip
Aluminum foil/plastic film composite film
Plastic coated aluminum tape bonding shielding
5護套材料Y
V
F聚乙烯PE
聚氯乙烯PVC
聚全氟乙丙烯
5. Sheath material Y
V
F polyethylene PE
Polyvinyl chloride PVC
Polyfluoroethylene propylene
6鎧裝材料22
32
53鋼帶鎧裝
鋼絲鎧裝
6 Armor Materials 22
thirty-two
53 steel strip armor
Steel wire armor
7規格-填寫對數（單元芯數導體截面）
對數 N:1、2、3、……61
單元芯數 N：2、3：
導體截面 S：0.75、1.0、1.5（mm2）
7 Specifications - Fill in logarithm (number of cores per unit, conductor cross-section)
Logarithmic N: 1, 2, 3,... 61
Number of unit cores N: 2, 3:
Conductor cross-section S: 0.75, 1.0, 1.5 (mm2)
DJVP3VP3銅芯聚氯乙烯絕緣鋁箔/塑料薄膜復合帶分屏蔽及總屏蔽聚氯乙烯護套阻燃計算機電纜
DJVP3VP3 Copper core PVC insulated aluminum foil/plastic film composite tape with separate shielding
and overall shielding PVC sheathed flame-retardant computer cable
