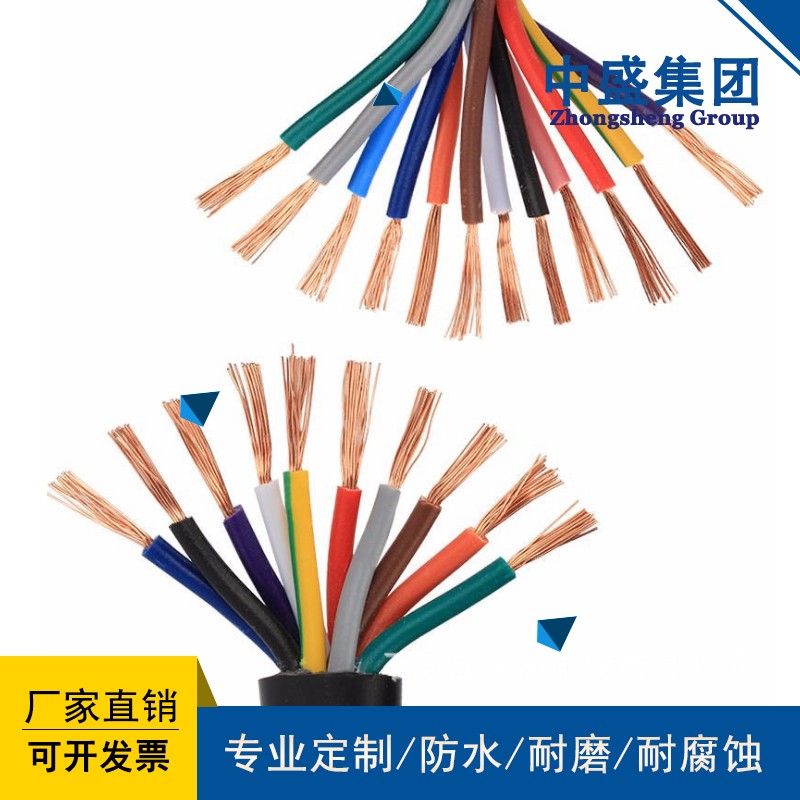

- 產品名稱：阻燃控制電纜ZRA-KYJVPR
- 瀏覽：
- 添加時間：2024-04-01 14:28:51
- 推薦度：
用于交流額定電壓450V/750V及以下控制監控回路及保護線路等場合。其中屏蔽型控制電纜，由于具有良好的評比性能得到電廠、電站的大量使用，電纜意義敷設在市內、電纜溝、管道、直埋、豎井等能承受較大機械拉里的固定場合。
Used for control and monitoring circuits and protection circuits with rated AC voltage of 450V/750V and below. Among them, shielded control cables are widely used in power plants and power stations due to their excellent performance evaluation. The significance of cables is to be laid in fixed places such as urban areas, cable trenches, pipelines, direct burial, and vertical shafts that can withstand large mechanical loads.
導體材料：銅導體、分(1類獨股導體、2類7根交合導體)
絕緣材料：聚氯乙烯絕緣加數字編碼
填充材料：塑料填充物
屏蔽材料：/
鎧裝材料：/
護套材料：聚氯乙烯護套
額定電壓：450/750V
Conductor material: Copper conductor, divided into (Class 1 single stranded conductor, Class 2 7intersectingconductors)
Insulation material: PVC insu
lation with digital coding
Filler material: plastic filler
Shielding material:/
Armor material:/
Sheath material: PVC sheath
Rated voltage: 450/750V
使用特性
1、電纜導體的長期允許工作溫度為70℃。
2 、電纜的敷設溫度應不低于0 ℃，推薦的允許彎曲半徑：無鎧裝層的電纜，應不小于電纜外徑的6 倍。有鎧裝或銅帶屏蔽結構的電纜，
應不小于電纜外徑的12倍。有屏蔽層結構的軟電纜，應不小于電纜外徑的6 倍。
Usage characteristics
1. The long-term allowable working temperature for cable conductors is 70 ℃.
2. The laying temperature of the cable should not be lower than 0 ℃, and the recommended allowable bending radius is: for cables without armor layer, it should not be less than 6 times the outer diameter of the cable. Cables with armored or copper tape shielding structures,
It should not be less than 12 times the outer diameter of the cable. Soft cables with a shielding layer structure should not be less than 6 times the outer diameter of the cable.
型號名稱說明
ZRA-KVV銅芯控制電纜
ZRA-KVVR銅芯控制軟電纜
ZRA-KVVP銅芯屏蔽控制電纜
ZRA-KVVRP銅芯屏蔽控制軟電纜
ZRA-KVVP2銅芯銅帶屏蔽控制電纜
ZRA-KVVP22銅芯鋼帶控制電纜
ZRA-KYJV銅芯控制電纜
ZRA-KVJVR銅芯控制軟電纜
Model name description
ZRA-KVV copper core control cable
ZRA-KVVR copper core control flexible cable
ZRA-KVVP copper core shielded control cable
ZRA-KVVRP copper core shielded control flexible cable
ZRA-KVVP2 Copper Core Copper Strip Shielded Control Cable
ZRA-KVVP22 Copper Core Steel Strip Control Cable
ZRA-KYJV Copper Core Control Cable
ZRA-KVJVR copper core control flexible cable
ZRA-KYJVP銅芯屏蔽控制電纜
ZRA-KYJVRP銅芯屏蔽控制軟電纜
ZRA-KYJVP2銅芯銅帶屏蔽控制電纜
ZRA-KYJVRP2銅芯銅帶屏蔽控制軟電纜
ZRA-KYJV22銅芯鋼帶凱裝控制電纜
ZRA-KYJVR22銅芯鋼帶凱裝控制軟電纜
ZRA-KYJVP22銅芯屏蔽鋼帶凱裝控制電纜
ZRA-KYJVRP22銅芯屏蔽鋼帶凱裝控制軟電纜
ZRA-KYJVP Copper Core Shielded Control Cable
ZRA-KYJVRP copper core shielded control flexible cable
ZRA-KYJVP2 Copper Core Copper Strip Shielded Control Cable
ZRA-KYJVRP2 Copper Core Copper Strip Shielded Control Flexible Cable
ZRA-KYJV22 Copper Core Steel Strip Kai Install Control Cable
ZRA-KYJVR22 Copper Core Steel Strip Kai Install Control Flexible Cable
ZRA-KYJVP22 Copper Core Shielded Steel Strip Kai Install Control Cable
ZRA-KYJVRP22 Copper Core Shielded Steel Strip Kai Install Control Soft Cable
ZRA-KYDYD銅芯無鹵低煙控制電纜
ZRA-KYDYDR銅芯無鹵低煙控制軟電纜
ZRA-KYDYDP銅芯無鹵低煙屏蔽控制電纜
ZRA-KYDYDRP銅芯無鹵低煙屏蔽控制軟電纜
ZRA-KYDYDRP2銅芯無鹵低煙銅帶屏蔽控制軟電纜
ZRA-KYDPYDP2銅芯無鹵低煙銅帶屏蔽控制電纜
ZRA-KYDYD22銅芯無鹵低煙阻鋼帶凱裝控制電纜
ZRA-KYDYDR22銅芯無鹵低煙鋼帶凱裝控制軟電纜
ZRA-KYDYD copper core halogen-free low smoke control cable
ZRA-KYDYDR copper core halogen-free low smoke control flexible cable
ZRA-KYDYDP copper core halogen-free low smoke shielded control cable
ZRA-KYDYDRP copper core halogen-free low smoke shielded control flexible cable
ZRA-KYDYDRP2 copper core halogen-free low smoke copper tape shielded control flexible cable
ZRA-KYDPYDP2 copper core halogen-free low smoke copper tape shielded control cable
ZRA-KYDYD22 Copper core halogen-free low smoke resistance steel strip Kai installed control cable
ZRA-KYDYDR22 Copper core halogen-free low smoke steel strip Kai installed control flexible cable
