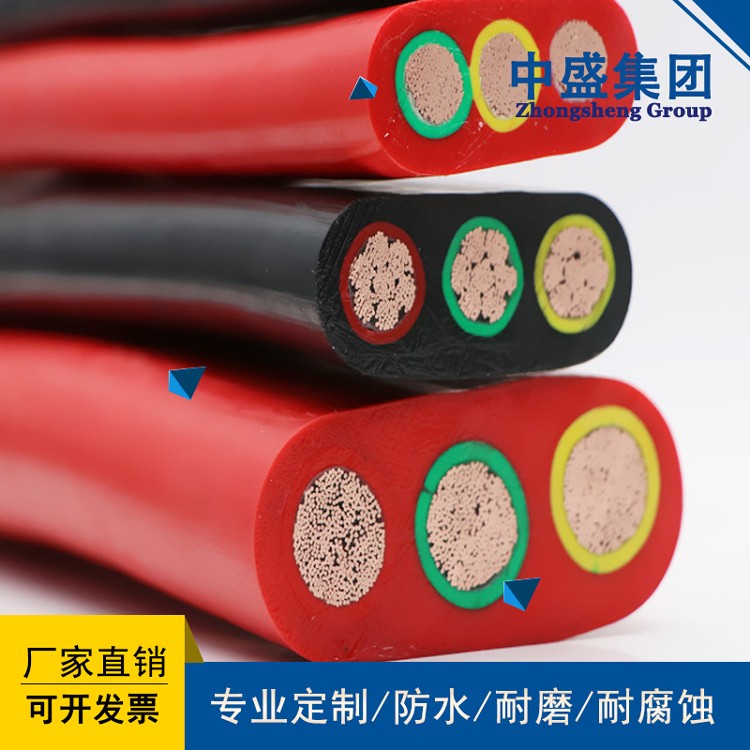

- 產(chǎn)品名稱：High tensile silicone rubber flat special cable ZR-YGGRL
- 瀏覽：
- 添加時間：2024-04-02 09:40:52
- 推薦度：
The tensile silicone rubber flat special cable ZR-YGGRL is mainly used for electrical connections between mobile electrical equipment in harsh environments such as power generation, metallurgy, chemical industry, ports, and mines. Executive standard: Q/HX18 Usage characteristics: Rated voltage: 0.6/1kV Working temperature: -60~+180 ℃
2. High tensile silicone rubber flat special cable ZR-YGGRL is mainly used as an electrical connection between mobile electrical equipment in harsh environments such as power generation, metallurgy, chemical industry, ports, and mines. Executive standard: Q/HX18 Usage characteristics: Rated voltage: 0.6/1kV Working temperature: -60~+180 ℃
1. Multi stranded tinned soft copper wire or soft copper wire conductor
2. High tensile silicone rubber insulation
3. High tensile silicone rubber sheath
At 20 ℃, the conductor resistance shall not exceed Ω/km for Class A and B 36.0 24.5 18.1 12.1 7.41 4.61 3.08
Class R 39.0 26.0 19.5 13.3 7.98 4.95 3.30
Insulation resistance constant ≥ 3.67M Ω km at 90 ℃
AC test voltage 50Hz 2.5kV/5min without breakdown
Main product specifications
Type of conductor, nominal cross-sectional area mm2, number of cores
0.5 0.75 1.0 1.5 2.5 4 6
Conductor structure
B 7/0.3 7/0.37 7/0.43 7/0.52 7/0.68 7/0.85 7/1.04 2-37 cores
R 16/0.20 24/0.20 32/0.20 32/0.25 49/0.25 56/0.30 84/0.30
