- 產(chǎn)品名稱：DJYPVP22 Armored Computer Cable
- 瀏覽：
- 添加時間：2024-04-02 16:44:58
- 推薦度：

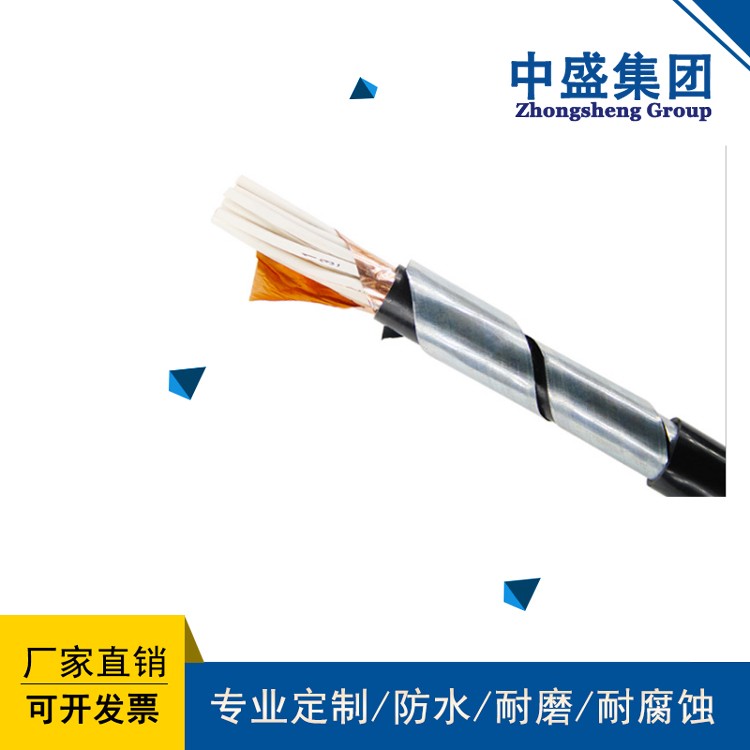

Copper core polyethylene insulated polyvinyl chloride sheathed split screen and total shielded steel tape armored computer cable
product mix
Product model: DJYPVP22
● Conductor: Single bare copper conductor
(Compliant with IEC60228cl.1 standard)
● Insulation: Polyethylene insulation PE mixture
● Twisted: Wrapped with polyester tape or other tape materials
● Sub shielding: Copper wire braided shielding
● Cable formation: wrapped with polyester tape or other tape materials
● Overall shielding: Copper wire braided shielding
● Inner sheath: PVC mixture
● Armor: Galvanized steel strip gap wrapped armor
● Outer sheath: PVC mixture
● Sheath colors: gray, black, green, blue
Technical characteristics
Rated voltage: 300/500V
● Test voltage: 1500V/1min (between wire cores); 1000V/1min (between wire core and shielding or armor)
● Temperature range for use: -5 ℃ to+70 ℃
(Mobile installation) Bending radius: 15 × D
● Temperature range for use: -15 ℃ to+70 ℃
(Fixed laying) Bending radius: 12 × D
Flame retardant characteristics: comply with IEC332-1 standard
Application scenarios
Suitable for signal transmission and connection of detection instruments and instruments in electronic computer systems, monitoring circuits, and automation control systems; Used for road surfaces, small equipment in factories, or places where vehicles pass through.
