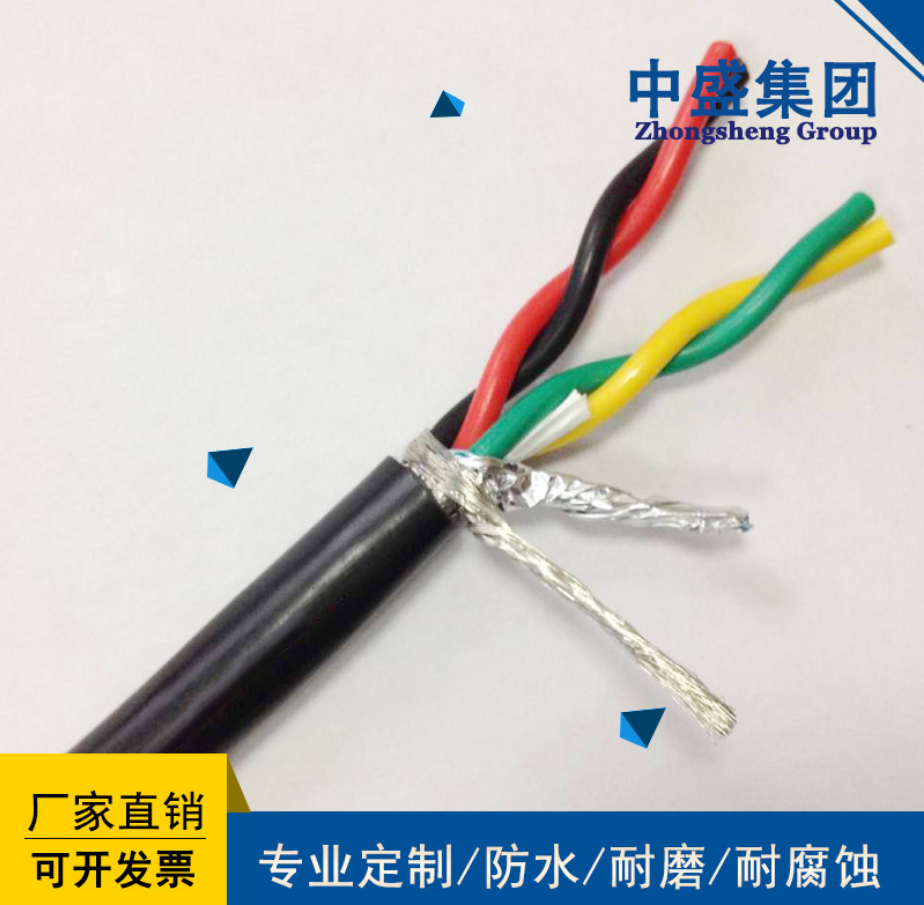

ZR-RVSP阻燃屏蔽雙絞電纜
ZR-RVSP flame-retardant shielded twisted pair cable
RVSP系列在RVS的基礎上再加上一層銅絲屏蔽網,因此在減少信號的傳輸損耗,屏蔽外界干擾方面比RVS系列效果更好,但
The RVSP series adds a layer of copper wire shielding mesh on top of the RVS, which reduces signal transmission loss and shields external interference better than the RVS series. However
由于增加了銅絲屏蔽網,它的成本也比RVS系列高出許多.常被用于那些對傳輸?shù)男盘?hào)要求很高的場合.
Due to the addition of copper wire shielding mesh, its cost is also much higher than the RVS series. It is often used in situations where high signal transmission requirements are required
技術指標:聚氯乙烯絕緣電纜長期允許工作溫度不超過70℃,電纜的敷設溫度應不低于0℃,外徑(D)小于25mm電纜的允許彎曲半徑,應不小于電纜外徑的4倍；外徑(D)為25mm及以上的電纜的允許彎曲半徑,應不小于電纜外徑的6倍.
Technical indicators: The long-term allowable working temperature of PVC insulated cables shall not exceed 70 ℃, and the laying temperature of the cable shall not be lower than 0 ℃. The outer diameter (D) shall be less than the allowable bending radius of the cable, which shall not be less than 4 times the outer diameter of the cable; The allowable bending radius of cables with an outer diameter (D) of 25mm and above should not be less than 6 times the outer diameter of the cable
產品說明:本產品適用于交流額定電壓450/750V及以下的動力,日用電器,儀器,儀表,電訊設備,照明電路以及自動化
Product Description: This product is suitable for power, daily appliances, instruments, meters, telecommunications equipment, lighting circuits, and automation with rated AC voltage of 450/750V and below
裝置的固定敷設,連接用軟線,安裝用軟線以及干擾較強的場合用屏蔽電線,根據使用環境的需要還可生產此類電線電纜
The fixed installation of the device, the use of flexible wires for connection, installation, and shielded wires for occasions with strong interference can also be produced according to the needs of the usage environment
型號 model
| 額定電壓V Rated voltage V
| 芯數 Number of cores
| 標稱截面mm2 Nominal cross-section
|
RV
| 300/500
| 1
| 0.5-95
|
ZR-RV
| 300/500
| 1
| 0.5-95
|
RVV
| 300/500
| 2-60
| 0.3-10
|
RVVP
| 300/500
| 2-60
| 0.3-0.25
|
RVS
| 300/500
| 2
| 0.5-6.0
|
ZR-RVS
| 300/500
| 2
| 0.5-6.0
|
RVSP
| 300/500
| 2
| 0.5-6
|
ZR-RVSP
| 300/500
| 2
| 0.5-6
|
ZR-RVV
| 300/550
| 2-60
| 0.5-6
|
