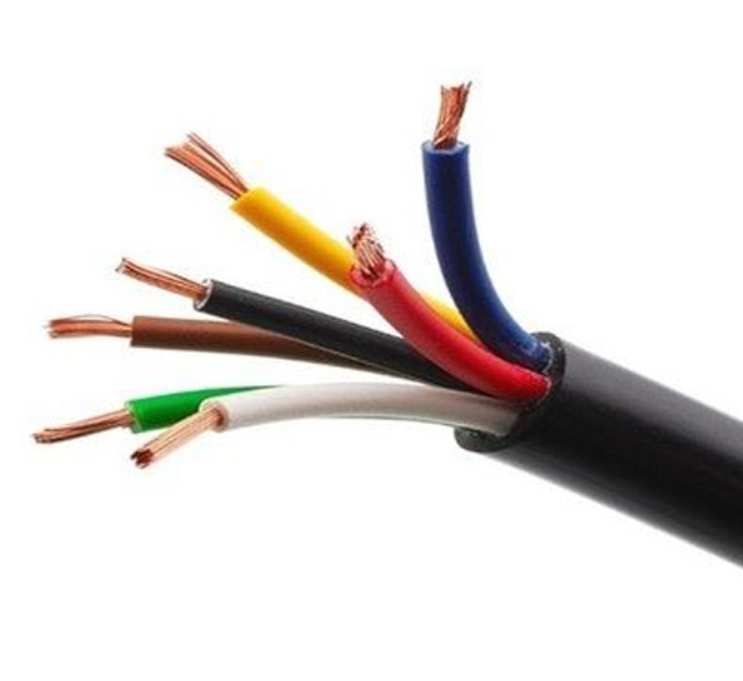

- 產品名稱：KVV control cable
- 瀏覽：
- 添加時間：2024-04-16 16:35:42
- 推薦度：
用于交流額定電壓450V/750V及以下控制監控回路及保護線路等場合。其中屏蔽型控制電纜，由于具有良好的屏蔽性能得到電廠、電站的大量使用，電纜意義敷設在室內、電纜溝、管道、直埋、豎井等能承受較大機械拉力的固定場合。
Used for control and monitoring circuits and protection circuits with rated AC voltage of 450V/750V and below. Among them, shielded control cables are widely used in power plants and power stations due to their excellent shielding performance. The significance of cables is to be laid in fixed situations that can withstand significant mechanical tension, such as indoor, cable trenches, pipelines, direct burial, and vertical shafts.
使用特性
Usage characteristics
1、電纜導體的長期允許工作溫度為70℃。
1. The long-term allowable working temperature for cable conductors is 70 ℃.
2 、電纜的敷設溫度應不低于0 ℃，推薦的允許彎曲半徑：無鎧裝層的電纜，應不小于電纜外徑的6 倍。有鎧裝或銅帶屏蔽結構的電纜，應不小于電纜外徑的12倍。有屏蔽層結構的軟電纜，應不小于電纜外徑的6 倍。
2. The laying temperature of the cable should not be lower than 0 ℃, and the recommended allowable bending radius is: for cables without armor layer, it should not be less than 6 times the outer diameter of the cable. Cables with armored or copper tape shielding structures should not be less than 12 times the outer diameter of the cable. Soft cables with a shielding layer structure should not be less than 6 times the outer diameter of the cable.
基本型號說明
Basic model description
型號
model
型號名稱說明
Model name description
KVV
KVV
銅芯聚氯乙烯絕緣聚氯乙烯護控制電纜
Copper core PVC insulated PVC protective control cable
KVVR
KVVR
銅芯聚氯乙烯絕緣聚氯乙烯護套控制軟電纜
Copper core PVC insulated PVC sheathed control flexible cable
KVVP
KVVP
銅芯聚氯乙烯絕緣聚氯乙烯護套銅線編織屏蔽控制電纜
Copper core PVC insulated PVC sheathed copper wire braided shielded control cable
KVVRP
KVVRP
銅芯聚氯乙烯絕緣聚氯乙烯護套銅線編織屏蔽控制軟電纜
Copper core PVC insulated PVC sheathed copper wire braided shielded control flexible cable
KVVP2
KVVP2
銅芯聚氯乙烯絕緣聚氯乙烯護套銅線銅帶屏蔽控制電纜
Copper core PVC insulated PVC sheathed copper wire and copper tape shielded control cable
KVVP22
KVVP22
銅芯聚氯乙烯絕緣聚氯乙烯護套銅線編織屏蔽、鋼帶控制電纜
Copper core PVC insulated PVC sheathed copper wire braided shielding, steel strip control cable
KYJV
KYJV
銅芯聚氯乙烯絕緣聚氯乙烯護套控制電纜
Copper core PVC insulated PVC sheathed control cable
KVJVR
KVJVR
銅芯聚氯乙烯絕緣聚氯乙烯護套控制軟電纜
Copper core PVC insulated PVC sheathed control flexible cable
KYJVP
KYJVP
銅芯聚氯乙烯絕緣聚氯乙烯護套控銅線編織屏蔽控制電纜
Copper core PVC insulated PVC sheathed control copper wire braided shielded control cable
KYJVRP
KYJVRP
銅芯聚氯乙烯絕緣聚氯乙烯護套控銅線編織屏蔽控制軟電纜
Copper core PVC insulated PVC sheathed control copper wire braided shielded control flexible cable
KYJVP2
KYJVP2
銅芯聚氯乙烯絕緣聚氯乙烯護套銅帶屏蔽控制電纜
Copper core PVC insulated PVC sheathed copper tape shielded control cable
KYJVRP2
KYJVRP2
銅芯聚氯乙烯絕緣聚氯乙烯護套銅帶屏蔽控制軟電纜
Copper core PVC insulated PVC sheathed copper tape shielded control flexible cable
KYJV22
KYJV22
銅芯聚氯乙烯絕緣聚氯乙烯護套鋼帶鎧裝控制電纜
Copper core PVC insulated PVC sheathed steel strip armored control cable
KYJVR22
KYJVR22
銅芯聚氯乙烯絕緣聚氯乙烯護套鋼帶鎧裝控制軟電纜
Copper core PVC insulated PVC sheathed steel strip armored control flexible cable
KYJVP22
KYJVP22
銅芯聚氯乙烯絕緣聚氯乙烯護套銅線編織屏蔽、鋼帶鎧裝控制電纜
Copper core PVC insulated PVC sheathed copper wire braided shielding, steel tape armored control cable
KYJVRP22
KYJVRP22
銅芯聚氯乙烯絕緣聚氯乙烯護套銅線編織屏蔽、鋼帶鎧裝控制軟電纜
Copper core PVC insulated PVC sheathed copper wire braided shielding, steel tape armored control flexible cable
