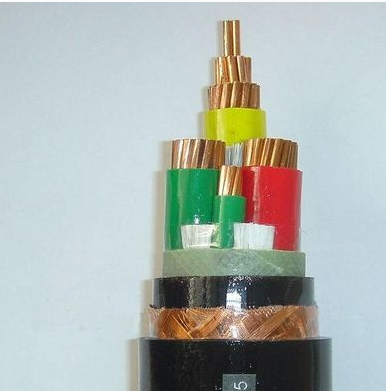

- 產品名稱：Frequency converter cable BPYJVP
- 瀏覽：
- 添加時間：2024-04-17 13:53:22
- 推薦度：
產品用途
Product Usage
變頻電纜主要用于變頻電源和變頻電機之間連接用的電纜,以及額定電壓1KV及以下的輸配電線路中,作輸送電能用.尤其適用于造紙、冶金、金屬加工、礦山、鐵路和食品加工等行業。
Variable frequency cables are mainly used for connecting variable frequency power supplies and variable frequency motors, as well as in transmission and distribution lines with a rated voltage of 1KV and below, for transmitting electrical energy. They are particularly suitable for industries such as papermaking, metallurgy, metal processing, mining, railways, and food processing.
使用條件
Usage conditions
1、 額定電壓U0/U：0.6/1KV.
1. Rated voltage U0/U: 0.6/1KV
2、 電纜導體長期允許最高溫度為90度,短路時最高溫度250度
2. The maximum allowable long-term temperature for cable conductors is 90 degrees Celsius, and the maximum temperature during short circuits is 250 degrees Celsius
3、 安裝敷設環境溫度不低于0度,固定敷設時環境溫度不低于-10度.
3. The installation and laying environment temperature shall not be lower than 0 degrees, and the fixed laying environment temperature shall not be lower than -10 degrees
4、 電纜允許最小彎曲半徑不小于15D(D-電纜外徑,mm)
4. The minimum allowable bending radius of the cable shall not be less than 15D (D-cable outer diameter, mm)
產品性能
Product performance
1、 BRYJVP12R-TK、ZRBPYJVP12R-TK型設計采用符合GB/T3956-1997規定的第5類軟絞合銅導體。
1. The BRYJVP12R-TK and ZRBPYJVP12R-TK designs use Class 5 soft stranded copper conductors in accordance with GB/T3956-1997.
2、 交聯聚乙烯絕緣、耐溫耐候性好。
2. Crosslinked polyethylene insulation, good temperature and weather resistance.
3、 低傳輸阻抗，電磁兼容性好。
3. Low transmission impedance, good electromagnetic compatibility.
4、 低工作電容
4. Low working capacitance
5、 良好的抗干擾和低輻射性能。
5. Good anti-interference and low radiation performance.
6、 對稱的三芯電纜結構設計，具有比四芯電纜更好的傳輸性能。
6. The symmetrical three core cable structure design has better transmission performance than four core cables.
型號名稱
Model name
BPYJVTP2-TK 銅芯交聯聚乙烯絕緣聚氯乙烯護套銅絲纏繞銅帶繞包屏蔽變頻器用回路電纜。
BPYJVTP2-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper wire wrapped copper tape wrapped shielded frequency converter circuit cable.
ZRBPYJVTP2-TK銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套銅絲纏繞銅帶繞包屏蔽變頻器用回路電纜。
ZRBPYJVTP2-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper wire wrapped copper tape wrapped shielded frequency converter circuit cable.
BPYJVP12-TK銅芯交聯聚乙烯絕緣聚氯乙烯護套銅帶繞包銅絲編織雙重屏蔽變頻器用回路電纜。
BPYJVP12-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped with copper wire braided double shielded frequency converter circuit cable.
ZRBPYJVP12-TK銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套銅帶繞包銅絲編織雙重屏蔽變頻器用回路電纜。
ZRBPYJVP12-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper tape wrapped with copper wire braided double shielded frequency converter circuit cable.
BPYJVPX12R-TK銅芯交聯聚乙烯絕緣聚氯乙烯護套銅帶繞包鍍錫銅絲編織雙重屏蔽變頻器用回路電纜。
BPYJVPX12R-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped with tin plated copper wire braided double shielded frequency converter circuit cable.
ZRBPYJVPX12R-TK銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套銅帶繞包鍍錫銅絲編織雙重屏蔽變頻器用回路電纜。
ZRBPYJVPX12R-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper tape wrapped with tin plated copper wire braided double shielded frequency converter circuit cable.
