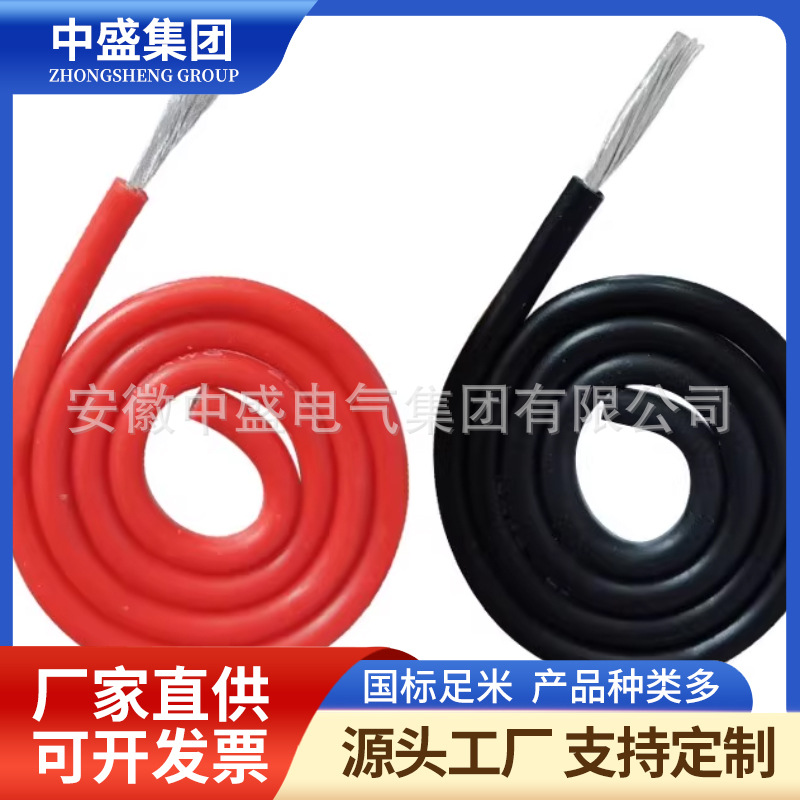

- 產品名稱：High temperature control cableKFF
- 瀏覽：
- 添加時間：2024-06-05 10:36:34
- 推薦度：
本產品適用于冶金、石油、化工以及發電廠等工礦企業，在高溫條件下和惡劣環境中（如酸、堿、油水低溫條件）作為各種電器、儀表及自動裝置之連接線，供交流額定電壓450／750伏及以下控制、監控及保護電路行裝場合下使用。
This product is suitable for industrial and mining enterprises such as metallurgy, petroleum, chemical industry, and power plants. It is used as a connecting wire for various electrical appliances, instruments, and automatic devices under high temperature conditions and harsh environments (such as acid, alkali, and oil-water low temperature conditions). It is suitable for use in control, monitoring, and protection circuit equipment with AC rated voltage of 450/750 volts and below.
絕緣：F46（工作溫度200℃）、PFA（工作溫度250℃）
Insulation: F46 (working temperature 200 ℃), PFA (working temperature 250 ℃)
護套：F46（工作溫度200℃）、PFA（工作溫度250℃）、PVC（工作溫度70℃、90℃、105℃）
Sheath: F46 (working temperature 200 ℃), PFA (working temperature 250 ℃), PVC (working temperature 70 ℃, 90 ℃, 105 ℃)
使用特性：
Usage characteristics:
1、額定電壓：交流Uo／U；450／750V
1. Rated voltage: AC Uo/U; 450/750V
2、工作溫度：
2. Working temperature:
序號1～4 -60～＋200℃及-60～＋250℃
Serial numbers 1-4-60~+200 ℃ and -60~+250 ℃
序號5～14 -15～＋105℃
Number 5-14-15+105 ℃
3、絕緣電阻（20℃）不低于50MΩ?km
3. Insulation resistance (20 ℃) not less than 50M Ω ? km
4、導體線芯直流電阻（20℃）符合GB3956-97規定
4. The DC resistance of the conductor core (20 ℃) complies with the provisions of GB3956-97
5、KFF 耐高溫控制電纜無鎧裝電纜允許彎曲半徑不小于電纜外徑的6倍，鎧裝電纜允許彎曲半徑不小于電纜外徑的12倍。
5. KFF high-temperature resistant control cable allows for a bending radius of no less than 6 times the outer diameter of the cable for unarmored cables, and a bending radius of no less than 12 times the outer diameter of the cable for armored cables.

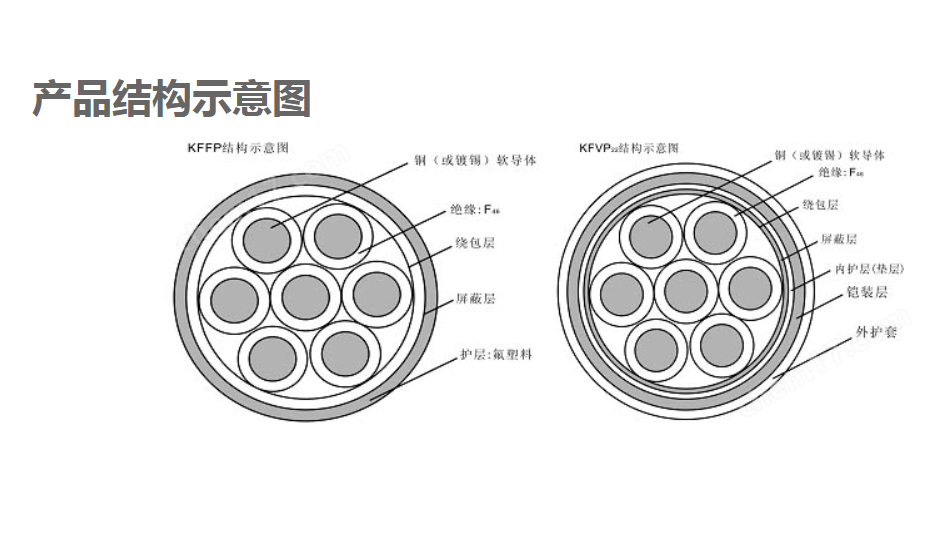

![D)~Q]NLCY$E8{DGOB3W_GMX.png](/upload/images/202406/17175551076625.png "17175551076625.png")
