- 產品名稱：High temperature control cableKFFR
- 瀏覽：
- 添加時間：2024-06-05 15:39:00
- 推薦度：

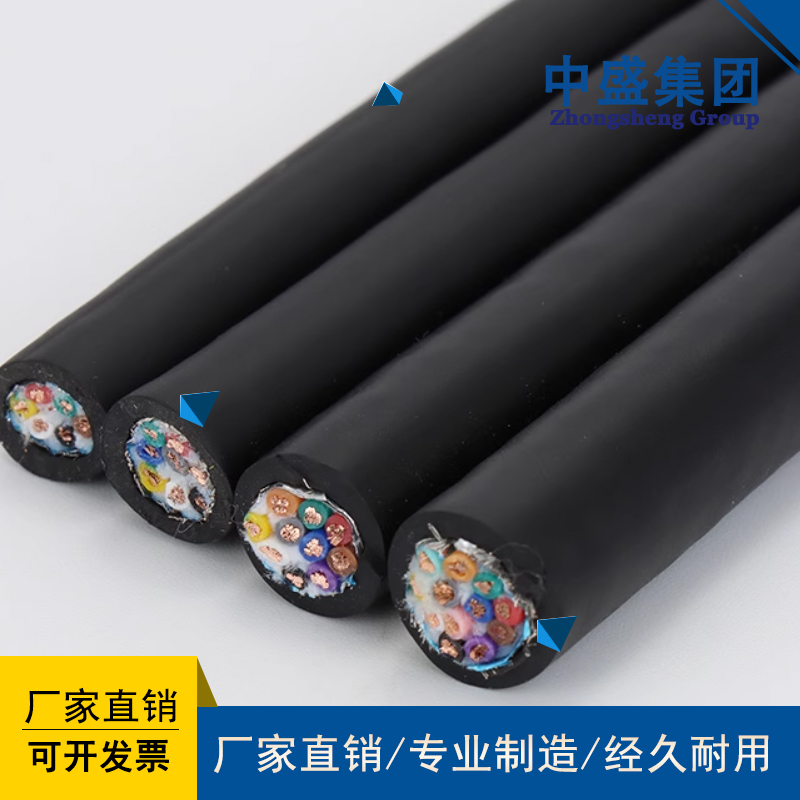

耐高溫電纜應用于航天航空、電力、石油、化工、冶金等行業中有電磁干擾環境的控制、監控回路及配電裝置中信號傳輸、控制及測量的連接，電器儀表、自動化設備、成套控制柜、機械工程、照明工程等需要彎曲移動的場合
High temperature resistant cables are used in industries such as aerospace, power, petroleum, chemical, metallurgy, etc. for the control and monitoring of electromagnetic interference environments, as well as the connection of signal transmission, control, and measurement in distribution devices. They are also used in electrical instruments, automation equipment, complete control cabinets, mechanical engineering, lighting engineering, and other situations that require bending and movement
產品結構：
Product structure:
導體：多股裸銅絲絞合(鍍錫或鍍銀銅絲可選)，符合GB/T 3956-2008及IEC 60228：2004第5類導體
Conductors: Stranded bare copper wire (tin or silver plated copper wire optional), in accordance with GB/T 3956-2008 and IEC 60228:2004 Class 5 conductors
絕緣：聚全氟乙丙烯/聚四氟乙烯/其它氟塑料
Insulation: perfluoroethylene propylene/polytetrafluoroethylene/other fluoroplastics
芯線：芯線絞合成纜，芯線顏色符合GB/T 5023.1及JB/T 8734.1中的優先色譜選用
Core wire: The core wire is twisted into a cable, and the color of the core wire complies with the priority chromatographic selection in GB/T 5023.1 and JB/T 8734.1
彩色或編碼芯線，3芯以上帶黃綠雙色線（可選）
Colored or coded core wire, 3 or more cores with yellow green dual color wire (optional)
屏蔽：鍍錫或鍍銀銅線編織，編織密度≥80%
Shielding: Tin or silver plated copper wire weaving, weaving density ≥ 80%
護套：聚全氟乙丙烯/聚四氟乙烯/其它氟塑料
Sheath: perfluoroethylene propylene/polytetrafluoroethylene/other fluoroplastics
護套顏色：黑色或紅色，可根據客戶需要定制各種顏色
Sheath color: black or red, various colors can be customized according to customer needs
KFFRP高溫電纜規格
KFFRP High Temperature Cable Specifications
高溫控制電纜
High temperature control cable
KFFRP-450/750-2*0.5
KFFRP-450/750-2*0.5
高溫控制電纜
High temperature control cable
KFFRP-450/750-2*0.75
KFFRP-450/750-2*0.75
高溫控制電纜
High temperature control cable
KFFRP-450/750-2*1.0
KFFRP-450/750-2*1.0
高溫控制電纜
High temperature control cable
KFFRP-450/750-2*1.5
KFFRP-450/750-2*1.5
高溫控制電纜
High temperature control cable
KFFRP-450/750-2*2.5
KFFRP-450/750-2*2.5
高溫控制電纜
High temperature control cable
KFFRP-450/750-2*4
KFFRP-450/750-2*4
高溫控制電纜
High temperature control cable
KFFRP-450/750-2*6
KFFRP-450/750-2*6
高溫控制電纜
High temperature control cable
KFFRP-450/750-2*10
KFFRP-450/750-2*10
