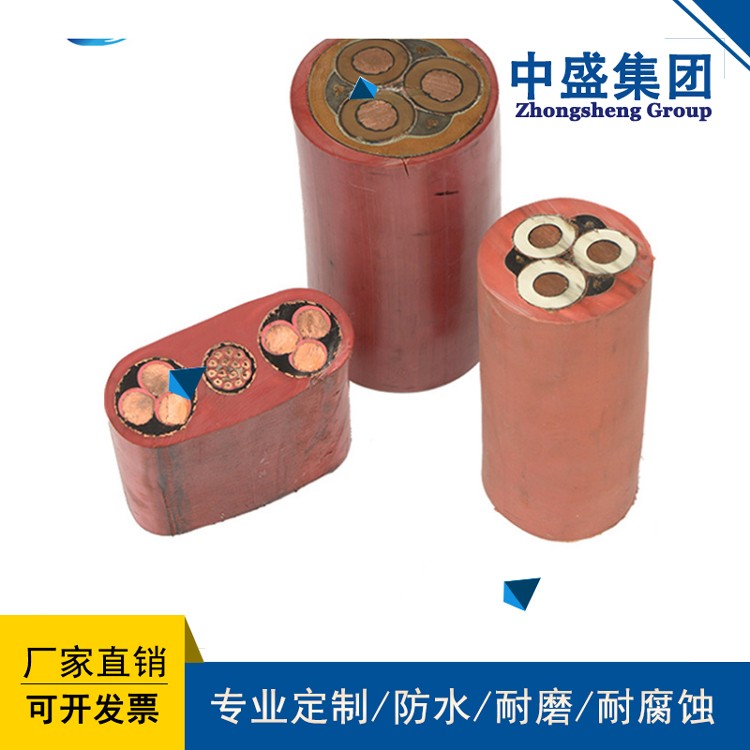

- 產品名稱：Reel cable YJGCFRP
- 瀏覽：
- 添加時間：2024-06-07 15:20:54
- 推薦度：
產品特點及用途
Product features and uses
本產品為高壓卷筒圓電纜適用于交流額定電壓6/10KV料場、碼頭、礦山、港口的堆取料機及港機上變壓器連接用高壓圓電纜，導體采用鍍錫軟芯結構，導體絕緣采用進口硅橡膠絕緣材料，電纜具有耐高溫、耐寒、耐油、耐腐蝕、防油、耐磨等特性。產品廣泛用于冶金、礦山、電力、石油化、船舶工業、港口及移動設備制造等行業。
This product is a high-voltage drum round cable suitable for connecting the stacker reclaimer and transformer on the AC rated voltage of 6/10KV material yards, docks, mines, and ports. The conductor adopts a tinned soft core structure, and the insulation of the conductor uses imported silicone rubber insulation material. The cable has characteristics such as high temperature resistance, cold resistance, oil resistance, corrosion resistance, oil resistance, and wear resistance. The product is widely used in industries such as metallurgy, mining, electricity, petrochemicals, shipbuilding, ports, and mobile equipment manufacturing.
基本電纜規格及結構參數
移動設備卷筒用6KV高壓軟電纜(圓)
| 型號 | 電壓KV | 電纜規格mm2 | 電纜外型尺寸㎜ | 電纜彎曲半徑㎜ | 電纜參考重量kg/m |
| YJGCFRP | 6 | 3×16+3×16/3 | 43.2 | 648 | 1.8480 |
| YJGCFRP | 6 | 3×25+3×16/3 | 51.0 | 765 | 2.6320 |
| YJGCFRP | 6 | 3×35+3×16/3 | 56.0 | 840 | 3.2239 |
| YJGCFRP | 6 | 3×50+3×16/3 | 62.1 | 931.5 | 4.1220 |
| YJGCFRP | 6 | 3×70+3×16/3 | 66.6 | 999 | 4.9434 |
| YJGCFRP | 6 | 3×95+3×16/3 | 72.0 | 1080 | 6.0060 |
| YJGCFRP | 6 | 4×16 | 49.5 | 742.5 | 2.5413 |
| YJGCFRP | 6 | 4×25 | 56.1 | 841.5 | 3.3030 |
| YJGCFRP | 6 | 4×35 | 61.6 | 924 | 4.0710 |
| YJGCFRP | 6 | 4×50 | 68.4 | 1026 | 5.2150 |
| YJGCFRP | 6 | 4×70 | 73.4 | 1101 | 6.2900 |
| YJGCFRP | 6 | 4×95 | 81.0 | 1215 | 7.8330 |
| YJGCFRP | 6 | 3×16+1×10 | 48.3 | 724.5 | 2.4850 |
| YJGCFRP | 6 | 3×25+1×10 | 55.0 | 825 | 3.2360 |
| YJGCFRP | 6 | 3×35+1×16 | 60.2 | 903 | 3.9570 |
| YJGCFRP | 6 | 3×50+1×25 | 67.1 | 1006.5 | 5.1540 |
| YJGCFRP | 6 | 3×70+1×35 | 72.0 | 1080 | 6.1760 |
| YJGCFRP | 6 | 3×95+1×35 | 79.8 | 1197 | 7.6840 |
移動設備卷筒用10KV高壓軟電纜(圓)
| 型號 | 電壓KV | 電纜規格mm2 | 電纜外型尺寸㎜ | 電纜彎曲半徑㎜ | 電纜參考重量kg/m |
| YJGCFRP | 10 | 3×16+3×16/3 | 45.4 | 681 | 1.9900 |
| YJGCFRP | 10 | 3×25+3×16/3 | 55.5 | 832.5 | 2.9720 |
| YJGCFRP | 10 | 3×35+3×16/3 | 58.2 | 873 | 3.4040 |
| YJGCFRP | 10 | 3×50+3×16/3 | 66.6 | 999 | 4.5240 |
| YJGCFRP | 10 | 3×70+3×16/3 | 71.1 | 1066.5 | 5.3690 |
| YJGCFRP | 10 | 3×95+3×16/3 | 75.1 | 1126.5 | 6.2300 |
| YJGCFRP | 10 | 4×16 | 52.0 | 780 | 2.7340 |
| YJGCFRP | 10 | 4×25 | 61.1 | 916.5 | 3.7370 |
| YJGCFRP | 10 | 4×35 | 64.1 | 961.5 | 4.3010 |
| YJGCFRP | 10 | 4×50 | 73.4 | 1101 | 5.7300 |
| YJGCFRP | 10 | 4×70 | 78.4 | 1176 | 6.8360 |
| YJGCFRP | 10 | 4×95 | 83.5 | 1252.5 | 8.1260 |
| YJGCFRP | 10 | 3×16+1×10 | 51.1 | 766.5 | 2.5670 |
| YJGCFRP | 10 | 3×25+1×10 | 59.2 | 888 | 3.5510 |
| YJGCFRP | 10 | 3×35+1×16 | 63.0 | 945 | 4.1380 |
| YJGCFRP | 10 | 3×50+1×25 | 72.8 | 1092 | 5.4760 |
| YJGCFRP | 10 | 3×70+1×35 | 76.7 | 1150.5 | 6.6190 |
| YJGCFRP | 10 | 3×95+1×35 | 82.6 | 1239 | 7.8980 |
