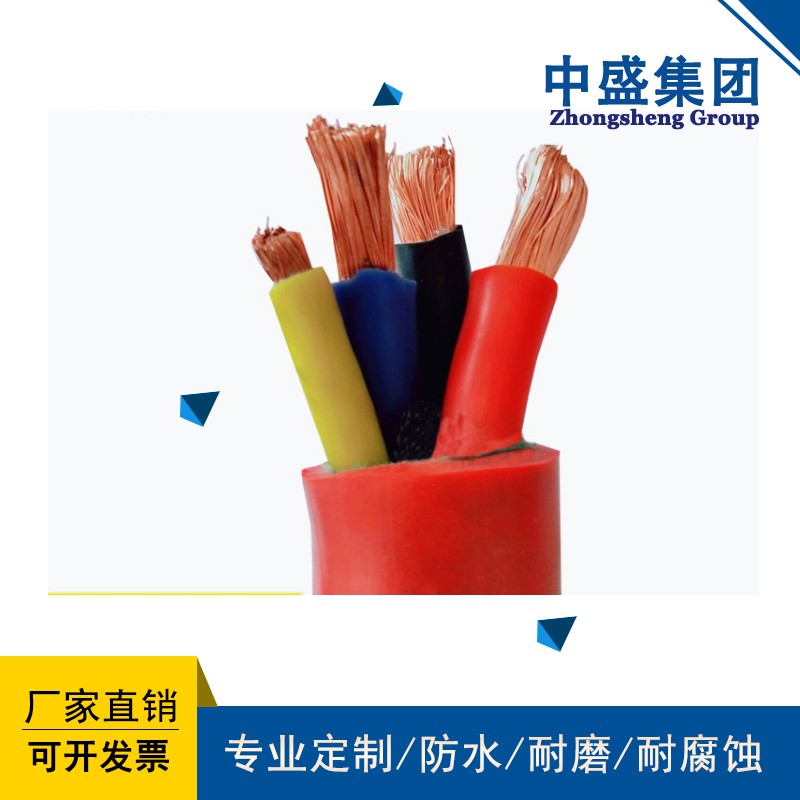

- 產品名稱：Silicone rubber variable frequency cableBPGGP
- 瀏覽：
- 添加時間：2024-06-21 09:53:12
- 推薦度：
產品簡介
Product Introduction
BPGGP變頻電纜主要用于變頻電源和變頻電機之間連接用的電纜,以及額定電壓1KV及以下的輸配電線路中,作輸送電能用.尤其適用于造紙、冶金、金屬加工、礦山、鐵路和食品加工等行業
BPGGP variable frequency cables are mainly used for connecting variable frequency power supplies and variable frequency motors, as well as in transmission and distribution lines with a rated voltage of 1KV and below, for transmitting electrical energy. They are particularly suitable for industries such as papermaking, metallurgy, metal processing, mining, railways, and food processing
詳情介紹
Details Introduction
BPGGP變頻電纜產品詳細介紹
Detailed Introduction to BPGGP Variable Frequency Cable Products
BPGGP變頻電纜產品用途
Application of BPGGP Variable Frequency Cable Product
變頻電纜主要用于變頻電源和變頻電機之間連接用的電纜,以及額定電壓1KV及以下的輸配電線路中,作輸送電能用.尤其適用于造紙、冶金、金屬加工、礦山、鐵路和食品加工等行業。
Variable frequency cables are mainly used for connecting variable frequency power supplies and variable frequency motors, as well as in transmission and distribution lines with a rated voltage of 1KV and below, for transmitting electrical energy. They are particularly suitable for industries such as papermaking, metallurgy, metal processing, mining, railways, and food processing.
使用條件
Usage conditions
1、 額定電壓U0/U：0.6/1KV.
1. Rated voltage U0/U: 0.6/1KV
2、 電纜導體長期允許zui高溫度為90度,短路時zui高溫度250度
2. The cable conductor is allowed to have a high temperature of 90 degrees Celsius for a long time, and a high temperature of 250 degrees Celsius during a short circuit
3、 安裝敷設環境溫度不低于0度,固定敷設時環境溫度不低于-10度.
3. The installation and laying environment temperature shall not be lower than 0 degrees, and the fixed laying environment temperature shall not be lower than -10 degrees
4、 電纜允許zui小彎曲半徑不小于15D(D-電纜外徑,mm)
4. The allowable small bending radius of the cable is not less than 15D (D-cable outer diameter, mm)
產品性能
Product performance
1、 設計采用符合GB/T3956-1997規定的第5類軟絞合銅導體。
1. The design adopts Class 5 soft stranded copper conductors that comply with GB/T3956-1997 regulations.
2、 交聯聚乙烯絕緣、耐溫耐候性好。
2. Crosslinked polyethylene insulation, good temperature and weather resistance.
3、 低傳輸阻抗，電磁兼容性好。
3. Low transmission impedance, good electromagnetic compatibility.
4、 低工作電容
4. Low working capacitance
5、 良好的抗干擾和低輻射性能。
5. Good anti-interference and low radiation performance.
6、 對稱的三芯電纜結構設計，具有比四芯電纜更好的傳輸性能
6. Symmetrical three core cable structure design, with better transmission performance than four core cables
型號名稱
Model name
BPGGP
BPGGP
硅橡膠絕緣和護套銅絲編織屏蔽耐高溫變頻電力電纜。
Silicone rubber insulated and sheathed copper wire braided shielded high temperature resistant variable frequency power cables.
BPGGP2
BPGGP2
硅橡膠絕緣和護套銅帶繞包屏蔽耐高溫變頻電力電纜。
Silicone rubber insulated and sheathed copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPGGPP2
BPGGPP2
硅橡膠絕緣和護套銅絲編織銅帶繞包屏蔽耐高溫變頻電力電纜。
Silicone rubber insulated and sheathed copper wire woven copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPGGP3
BPGGP3
硅橡膠絕緣和護套鋁聚酯復合膜繞包屏蔽耐高溫變頻電力電纜。
Silicone rubber insulated and sheathed aluminum polyester composite film wrapped and shielded high-temperature resistant variable frequency power cables.
BPGVFP
BPGVFP
硅橡膠絕緣丁腈護套銅絲編織屏蔽耐高溫變頻電力電纜。
Silicone rubber insulated nitrile sheathed copper wire braided shield high-temperature resistant variable frequency power cable.
BPGVFP2
BPGVFP2
硅橡膠絕緣丁腈護套銅帶繞包屏蔽耐高溫變頻電力電纜。
Silicone rubber insulated nitrile sheathed copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPGVFPP2
BPGVFPP2
硅橡膠絕緣丁腈護套銅絲編織銅帶繞包屏蔽耐高溫變頻電力電纜。
Silicone rubber insulated nitrile sheathed copper wire braided copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPGVFP3
BPGVFP3
硅橡膠絕緣丁腈護套鋁聚酯復合膜繞包屏蔽耐高溫變頻電力電纜。
Silicon rubber insulated nitrile sheathed aluminum polyester composite film wrapped and shielded high-temperature resistant variable frequency power cables.
BPFFP
BPFFP
氟46絕緣和護套銅絲編織屏蔽耐高溫變頻電力電纜。
Fluorine 46 insulated and sheathed copper wire braided shielded high-temperature resistant variable frequency power cable.
BPFFP2
BPFFP2
氟46絕緣和護套銅帶繞包屏蔽耐高溫變頻電力電纜。
Fluorine 46 insulated and sheathed copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPFFPP2
BPFFPP2
氟46絕緣和護套銅絲編織銅帶繞包屏蔽耐高溫變頻電力電纜
Fluorine 46 insulated and sheathed copper wire braided copper tape wrapped and shielded high-temperature resistant variable frequency power cable
BPFFP3
BPFFP3
氟46絕緣和護套鋁聚酯復合膜繞包屏蔽耐高溫變頻電力電纜。
Fluorine 46 insulated and sheathed aluminum polyester composite film wrapped and shielded high-temperature resistant variable frequency power cables.
BPVVP
BPVVP
聚氯乙烯絕緣和護套銅絲編織屏蔽變頻電力電纜。
PVC insulated and sheathed copper wire braided shielded variable frequency power cables.
BPVVP2
BPVVP2
聚氯乙烯絕緣和護套銅帶繞包屏蔽變頻電力電纜。
PVC insulated and sheathed copper tape wrapped shielded variable frequency power cables.
BPVVPP2
BPVVPP2
聚氯乙烯絕緣和護套銅絲編織銅帶繞包屏蔽變頻電力電纜。
PVC insulated and sheathed copper wire woven copper tape wrapped and shielded variable frequency power cables.
BPVVP3
BPVVP3
聚氯乙烯絕緣和護套鋁聚酯復合膜繞包屏蔽變頻電力電纜。
PVC insulated and sheathed aluminum polyester composite film wrapped and shielded variable frequency power cables.
BPYJVP
BPYJVP
交聯聚乙烯絕緣聚氯乙烯護套銅絲編織屏蔽變頻電力電纜。
Cross linked polyethylene insulated polyvinyl chloride sheathed copper wire braided shielded variable frequency power cable.
BPYJVP2
BPYJVP2
交聯聚乙烯絕緣聚氯乙烯護套銅帶繞包屏蔽變頻電力電纜。
Cross linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped and shielded variable frequency power cables.
BPYJVPP2
BPYJVPP2
交聯聚乙烯絕緣聚氯乙烯護套銅絲編織銅帶繞包屏蔽變頻電力電纜。
Cross linked polyethylene insulated polyvinyl chloride sheathed copper wire braided copper tape wrapped shielding variable frequency power cable.
BPYJVP3
BPYJVP3
交聯聚乙烯絕緣聚氯乙烯護套鋁聚酯復合膜繞包屏蔽變頻電力電纜。
Cross linked polyethylene insulated polyvinyl chloride sheathed aluminum polyester composite film wrapped shielding variable frequency power cable.
四：基本型號及名稱
4： Basic model and name
BPGGP
BPGGP
硅橡膠絕緣和護套銅絲編織屏蔽耐高溫變頻電力電纜。
Silicone rubber insulated and sheathed copper wire braided shielded high temperature resistant variable frequency power cables.
BPGGP2
BPGGP2
硅橡膠絕緣和護套銅帶繞包屏蔽耐高溫變頻電力電纜。
Silicone rubber insulated and sheathed copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPGGPP2
BPGGPP2
硅橡膠絕緣和護套銅絲編織銅帶繞包屏蔽耐高溫變頻電力電纜。
Silicone rubber insulated and sheathed copper wire woven copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPGGP3
BPGGP3
硅橡膠絕緣和護套鋁聚酯復合膜繞包屏蔽耐高溫變頻電力電纜。
Silicone rubber insulated and sheathed aluminum polyester composite film wrapped and shielded high-temperature resistant variable frequency power cables.
BPGVFP
BPGVFP
硅橡膠絕緣丁腈護套銅絲編織屏蔽耐高溫變頻電力電纜。
Silicone rubber insulated nitrile sheathed copper wire braided shield high-temperature resistant variable frequency power cable.
BPGVFP2
BPGVFP2
硅橡膠絕緣丁腈護套銅帶繞包屏蔽耐高溫變頻電力電纜。
Silicone rubber insulated nitrile sheathed copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPGVFPP2
BPGVFPP2
硅橡膠絕緣丁腈護套銅絲編織銅帶繞包屏蔽耐高溫變頻電力電纜。
Silicone rubber insulated nitrile sheathed copper wire braided copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPGVFP3
BPGVFP3
硅橡膠絕緣丁腈護套鋁聚酯復合膜繞包屏蔽耐高溫變頻電力電纜。
Silicon rubber insulated nitrile sheathed aluminum polyester composite film wrapped and shielded high-temperature resistant variable frequency power cables.
BPFFP
BPFFP
氟46絕緣和護套銅絲編織屏蔽耐高溫變頻電力電纜。
Fluorine 46 insulated and sheathed copper wire braided shielded high-temperature resistant variable frequency power cable.
BPFFP2
BPFFP2
氟46絕緣和護套銅帶繞包屏蔽耐高溫變頻電力電纜。
Fluorine 46 insulated and sheathed copper tape wrapped and shielded high-temperature resistant variable frequency power cables.
BPFFPP2
BPFFPP2
氟46絕緣和護套銅絲編織銅帶繞包屏蔽耐高溫變頻電力電纜
Fluorine 46 insulated and sheathed copper wire braided copper tape wrapped and shielded high-temperature resistant variable frequency power cable
BPFFP3
BPFFP3
氟46絕緣和護套鋁聚酯復合膜繞包屏蔽耐高溫變頻電力電纜。
Fluorine 46 insulated and sheathed aluminum polyester composite film wrapped and shielded high-temperature resistant variable frequency power cables.
BPVVP
BPVVP
聚氯乙烯絕緣和護套銅絲編織屏蔽變頻電力電纜。
PVC insulated and sheathed copper wire braided shielded variable frequency power cables.
BPVVP2
BPVVP2
聚氯乙烯絕緣和護套銅帶繞包屏蔽變頻電力電纜。
PVC insulated and sheathed copper tape wrapped shielded variable frequency power cables.
BPVVPP2
BPVVPP2
聚氯乙烯絕緣和護套銅絲編織銅帶繞包屏蔽變頻電力電纜。
PVC insulated and sheathed copper wire woven copper tape wrapped and shielded variable frequency power cables.
BPVVP3
BPVVP3
聚氯乙烯絕緣和護套鋁聚酯復合膜繞包屏蔽變頻電力電纜。
PVC insulated and sheathed aluminum polyester composite film wrapped and shielded variable frequency power cables.
BPYJVP
BPYJVP
交聯聚乙烯絕緣聚氯乙烯護套銅絲編織屏蔽變頻電力電纜。
Cross linked polyethylene insulated polyvinyl chloride sheathed copper wire braided shielded variable frequency power cable.
BPYJVP2
BPYJVP2
交聯聚乙烯絕緣聚氯乙烯護套銅帶繞包屏蔽變頻電力電纜。
Cross linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped and shielded variable frequency power cables.
BPYJVPP2
BPYJVPP2
交聯聚乙烯絕緣聚氯乙烯護套銅絲編織銅帶繞包屏蔽變頻電力電纜。
Cross linked polyethylene insulated polyvinyl chloride sheathed copper wire braided copper tape wrapped shielding variable frequency power cable.
BPYJVP3
BPYJVP3
交聯聚乙烯絕緣聚氯乙烯護套鋁聚酯復合膜繞包屏蔽變頻電力電纜。
Cross linked polyethylene insulated polyvinyl chloride sheathed aluminum polyester composite film wrapped shielding variable frequency power cable.
型號說明
Model Description
項目 代號 說明
Project code description系列代號 BP 變頻電纜
Series code BP variable frequency cable
絕緣代號 YJ 交聯聚乙烯絕緣
Insulation code YJ cross-linked polyethylene insulation
護套代號 V 聚氯乙烯護套
Sheath code V PVC sheath
護套代號 E 無鹵低煙聚烯烴護套
Sheath code E halogen-free low smoke polyolefin sheath
屏蔽代號 TP2 同心導體+銅帶屏蔽結構
Shielding code TP2 concentric conductor+copper tape shielding structure
屏蔽代號 P12 銅帶屏蔽+銅絲編織雙重屏蔽
Shielding code P12: Copper tape shielding+copper wire weaving dual shielding
屏蔽代號 PX12 銅帶屏蔽+鍍錫銅絲編織雙重屏蔽
Shielding code PX12 copper tape shielding+tin plated copper wire braided dual shielding
鎧裝代號 22 鋼帶鎧裝
Armor code 22 Steel strip armor
阻燃代號 ZR 阻燃型
Flame retardant code ZR Flame retardant type
