- 產品名稱：Video Cable SYV-75-5-1
- 瀏覽：
- 添加時間：2024-07-03 10:13:06
- 推薦度：

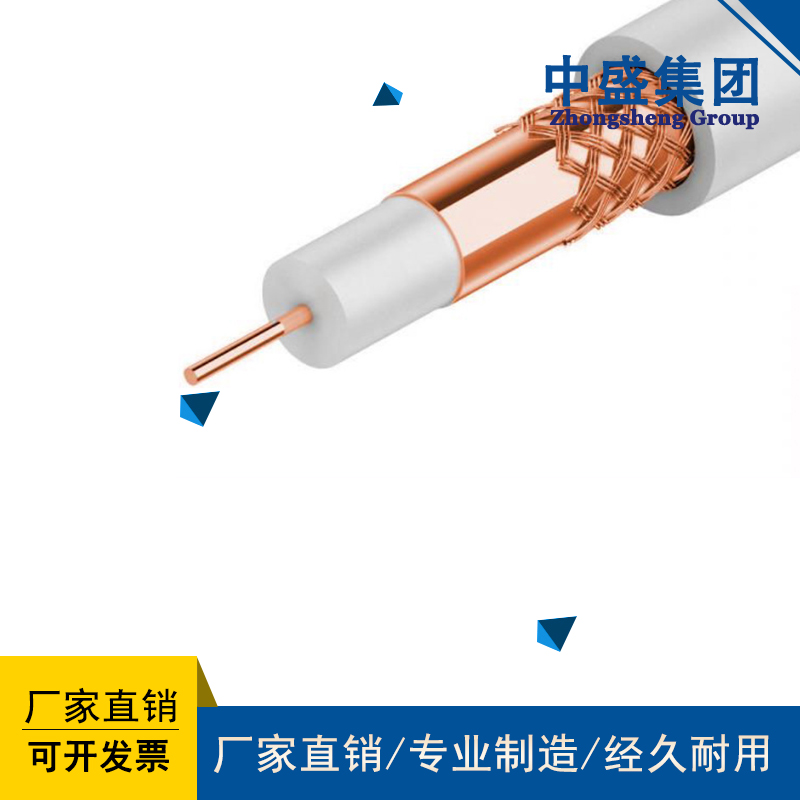

SYV-75-5-1實心聚乙烯絕緣射頻電纜
SYV-75-5-1 Solid Polyethylene Insulated RF Cable
產品介紹：
Product Introduction:
SYV-75-5-1用途：監控工程,網絡工程,通信工程,無線電工程
SYV-75-5-1 Application: Monitoring engineering, network engineering, communication engineering, wireless engineering
使用濕度：-40℃－70℃
Operating humidity: -40 ℃ -70 ℃
參考標準號：GB／T14864－1993等
Reference standard number: GB/T14864-1993, etc
SYV-75-5-1結構數據及主要性能
Structural data and main performance of SYV-75-5-1
實心聚乙烯絕緣射頻電纜
Solid polyethylene insulated RF cable
執行標準：GB/T 14864-1993使用特性工作條件：工作溫度允許在-40℃~+65℃范圍內，相對濕度：溫度為+40℃時98%，安裝時敷設溫度不低于-15℃。主要技術性能：1）絕緣電阻：不小于1000MΩ·km 2) 50Ω電容不大于115PF/m，75Ω電容不大于76PF/m 3)允許最小彎曲半徑；室內使用時不小于5倍電纜外徑室外使用時不小于10倍電纜外徑產品用途 本產品適用于無線電通訊設備和采用類似技術的電子裝置的有關無線電子設備中傳輸射頻信號。
Executive standard: GB/T 14864-1993 Usage characteristics Working conditions: Working temperature allowed within the range of -40 ℃~+65 ℃, relative humidity: 98% at a temperature of+40 ℃, installation temperature not lower than -15 ℃. Main technical performance: 1) Insulation resistance: not less than 1000M Ω· km 2) 50 Ω capacitance not exceeding 115PF/m, 75 Ω capacitance not exceeding 76PF/m 3) Minimum allowable bending radius; When used indoors, it should not be less than 5 times the outer diameter of the cable. When used outdoors, it should not be less than 10 times the outer diameter of the cable. This product is suitable for transmitting radio frequency signals in wireless communication equipment and electronic devices using similar technologies.
產品信息：
型號 | 內導體根數／直徑mm | 絕緣外徑mm | 電纜外徑mm | 標稱衰減200MHZ dB/m | 標稱特性阻抗Ω | 試驗電壓k |
SYV-50-2-1 | 7/0.15 | 1.5±0.10 | 2.8±0.2 | 0.45 | 50±2 | 2 |
SYV-50-2-41 | 1/0.68 | 2.2±1.10 | 4.0±0.2 | 0.31 | 3 | |
SYV-50-3-1 | 7/0.32 | 2.95±0.13 | 5.0±0.2 | 0.24 | 4 | |
SYV-50-3-3 | 1/0.9 | 2.95±0.13 | 5.0±0.2 | 0.22 | 4 | |
SYV-50-5-1 | 1/1.37 | 4.6±0.2 | 7.1±0.3 | 0.18 | 6.5 | |
SYV-50-7 | 7/0.76 | 7.3±0.25 | 10.2±0.3 | 0.11 | 10 | |
SYV-50-9 | 7/0.95 | 9.0±0.3 | 12.4±0.4 | 0.095 | 12 | |
SYV-50-12 | 7/1.15 | 11.5±0.30 | 15±0.4 | 0.08 | 15 | |
SYV-75-2 | 7/0.08 | 1.5±0.10 | 2.9±0.2 | 0.38 | 75±3 | 1.5 |
SYV-75-3-1 | 1/0.51 | 3.0±0.15 | 5.0±0.2 | 0.28 | 2 | |
SYV-75-3-2 | 7/0.17 | 3.0±0.15 | 5.0±0.2 | 0.28 | 2 | |
SYV-75-4-1 | 1/0.59 | 3.7±0.13 | 6.0±0.2 | 0.22 | 4 | |
SYV-75-4-2 | 7/0.21 | 3.7±0.13 | 6.0±0.2 | 0.22 | 4 | |
SYV-75-5-1 | 1/0.75 | 4.6±0.2 | 7.1±0.2 | 0.16 | 5.5 | |
SYV-75-5-2 | 7/0.26 | 4.6±0.2 | 7.1±0.2 | 0.19 | 5.5 | |
SYV-75-7 | 7/0.4 | 7.25±0.25 | 10.3±0.3 | 0.12 | 8 | |
SYV-75-9 | 1/1.37 | 9.0±0.25 | 12.4±0.4 | 0.088 | 10 | |
SYV-75-12 | 7/0.64 | 11.5±0.3 | 15±0.4 | 0.08 | 12.5 |
