- 產品名稱：Flame retardant computer cable ZR-BAYJYP3
- 瀏覽：
- 添加時間：2024-07-05 08:51:49
- 推薦度：

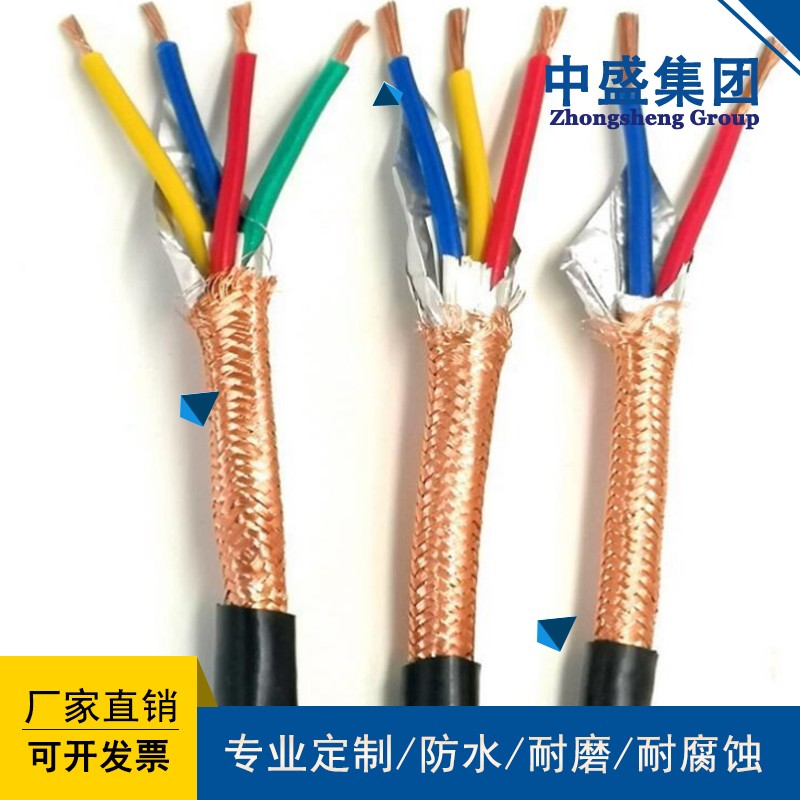

ZR-BAYJYP3電纜
ZR-BAYJYP3 cable
計算機電纜用途：本產品適用于額定電壓30/500v及以下防干擾性能要求較高的電子計算機、檢測儀器、儀表的連接。
Computer cable usage: This product is suitable for connecting electronic computers, testing instruments, and instruments with high anti-interference performance requirements for rated voltage of 30/500V and below.
使用條件：
Usage conditions:
1.
one
電纜導體的長期工作溫度：聚氯乙烯有70℃、105℃兩種；聚乙烯絕緣為70℃；交聯聚氯乙烯絕緣為90℃。
The long-term working temperature of cable conductors: PVC has two types: 70 ℃ and 105 ℃; Polyethylene insulation at 70 ℃; Crosslinked polyvinyl chloride insulation is at 90 ℃.
2.
two
電纜允許在環境溫度-40℃～50℃的條件下固定敷設使用，敷設時的環境應不底于0℃ 銅帶屏蔽結構的電纜，敷設時的彎曲
Cables are allowed to be fixedly laid and used in environments with temperatures ranging from -40 ℃ to 50 ℃. The laying environment should not be lower than 0 ℃ for cables with copper tape shielding structures, and bending during laying should be avoided
于電纜外徑的12倍，其他電纜敷設時的彎曲半徑應不小于電纜外徑的6倍。
When laying other cables, the bending radius should not be less than 6 times the outer diameter of the cable, which is 12 times the outer diameter of the cable.
3.
three
型號及結構特征 阻燃計算機屏蔽電纜也就是絞對屏蔽電纜
Model and structural characteristics: flame-retardant computer shielded cable, also known as twisted pair shielded cable
型號規格說明表
Model Specification Description Table
序號 項目 代號 說明
Item code description
1 阻燃代號 ZR
1. Flame retardant code ZR
ZR
ZR
DZR 一般阻燃
DZR general flame retardant
阻燃
Flame retardant
低煙低鹵阻燃
Low smoke and low halogen flame retardant
2 系列代號 DJ 電子計算機和電動儀表用
2 series code DJ for electronic computers and electric instruments
3 絕緣材料 Y
3 Insulation material Y
V
V
F 聚乙烯PE
F polyethylene PE
聚氯乙烯PVC
Polyvinyl chloride PVC
聚全氟乙丙烯
Polyfluoroethylene propylene
4 屏蔽材料 P
4 Shielding material P
P2
P2
P3
P3
A 鋼絲編織
A steel wire weaving
