- 產品名稱：Variable frequency flexible cable YQB
- 瀏覽：
- 添加時間：2024-07-05 10:27:35
- 推薦度：

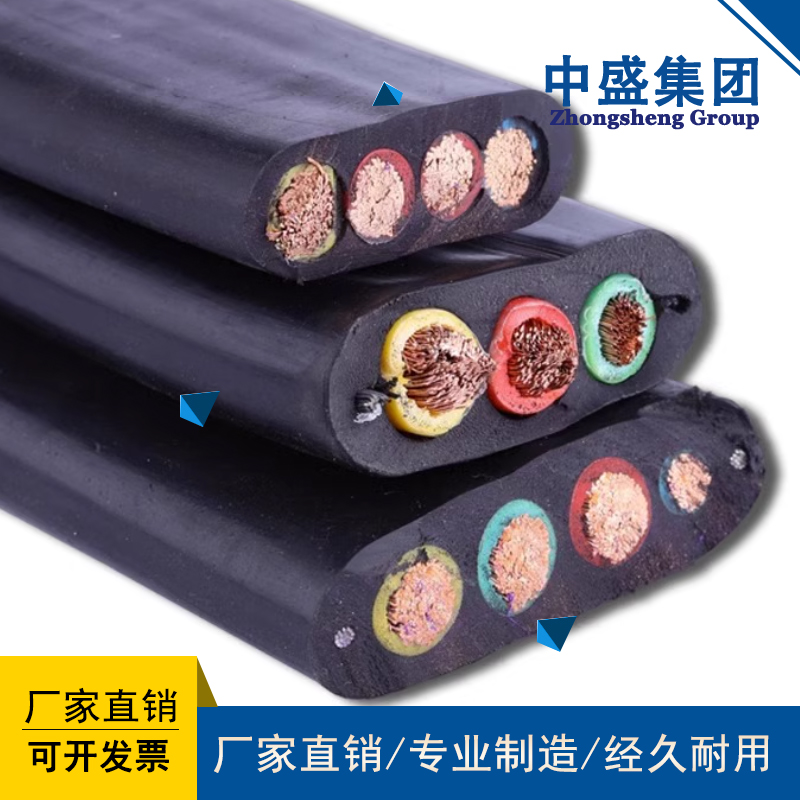

扁平軟電纜YQB、YQWB
Flat flexible cables YQB, YQWB
扁平軟電纜YQB、YQWB線芯長期充許工作溫度要不超過65℃；“W”型電纜具有耐氣候和一定的耐油性能，適合在戶外或接觸油污的場合使用,"B"代表扁平電纜；ZR-型電纜具有阻燃的性能。額定電壓為300/500V（YQWB YZWB型），450/750V（YCWB型）；
The long-term allowable working temperature for the YQB and YQWB cores of flat flexible cables shall not exceed 65 ℃; The "W" type cable has weather resistance and certain oil resistance, and is suitable for use outdoors or in situations where it comes into contact with oil pollution. "B" represents flat cable; ZR type cables have flame retardant properties. The rated voltage is 300/500V (YQWB YZWB type) and 450/750V (YCWB type);
扁平軟電纜YQB、YQWB生產執(zhí)行標準 JB8735.-1998.
The production execution standards for flat flexible cables YQB and YQWB are JB8735.1998
型號、名稱及主要用途
Model, name, and main purpose
型號 | 名稱 | 主在用途 |
YQB、YQWB | 輕型橡套扁電纜 | 用于輕型移動電氣設備和工具Used for lightweight mobile electrical equipment and tools |
YZB、YZWB | 中型橡套扁電纜 | 用于中型移動電氣設備和工具Used for medium-sized mobile electrical equipment and tools |
YCB、YCWB | 重型橡套扁電纜 | 用于各種移動電氣設備，能承受較大的機械外力的作用，特別適用于行車、起重機等電氣設備。Used for various mobile electrical equipment, capable of withstanding large mechanical external forces, especially suitable for electrical equipment such as cranes and cranes. |
規(guī)格范圍
型號 | 額定電壓（V） | 芯數 | 標準截面（Mm2) |
YQB、YQWB | 300/300 | 2,3 | 0.3-0.5 |
YZB、YZWB | 300/300 | 2,3,4,5 3+1 | 1.5-6 |
YCB | 450/750 | 1 | 1.5-240 |
YCBW、YCWB | 450/470 | 2 | 35-95 |
規(guī)格尺寸及技術參數
標準截面(mm2) | 導體結構 | 20℃時導體電阻≤(ΩM) | 電纜外徑參考(mm) | |
根/單線直徑(mm) | 2芯 | 3芯 | ||
0.3 | 16/0.15 | 69.2 | / | / |
0.5 | 28/0.15 | 30.0 | / | / |
YZB YZWB 型300/500V
標稱截面（mm2) | 導體結構 | 20℃時導體直流電阻≤（Ω/KM） | 電纜外徑參考（mm) | ||||
根/單線直徑 | 2芯 | 3芯 | 4芯 | 5芯 | 6芯 | ||
1.5 | 30/0.25 | 13.3 | -- | -- | 20.44*6.76 | -- | 17.76*6.09 |
2.5 | 49/0.25 | 7.98 | -- | -- | 27.1*8.05 | -- | 27.1*8.05 |
4 | 56/0.30 | 4.95 | -- | -- | 33.3*9.6 | -- | 49.1*9.6 |
6 | 84/0.30 | 3.30 | -- | -- | 38.4*11.5 | -- | 56.7*11.5 |
交貨要求
成圈100m,成盤應大于100m;
短段電纜不小于10m,短段電纜的交貨數量應不超過交貨總長度10%，且每個包裝件應不超過五段；
根據雙方協議充許任何長度的電纜交貨，長度誤差為±0.5%；用戶對產品有阻燃特性要求，在合同中需另補充協議
Delivery requirements
Forming a circle of 100m, the circle should be greater than 100m;
Short section cables shall not be less than 10m, and the delivery quantity of short section cables shall not exceed 10% of the total delivery length, and each packaging shall not exceed five sections;
According to the agreement between both parties, any length of cable is allowed to be delivered with a length error of ± 0.5%; Users have requirements for flame retardant properties of the product, and a separate agreement needs to be added in the contract
