- 產品名稱：Bucket wheel cable YJGCFPB 6KV
- 瀏覽：
- 添加時間：2024-07-05 14:56:52
- 推薦度：
一、產品特點及用途
1、 Product features and uses

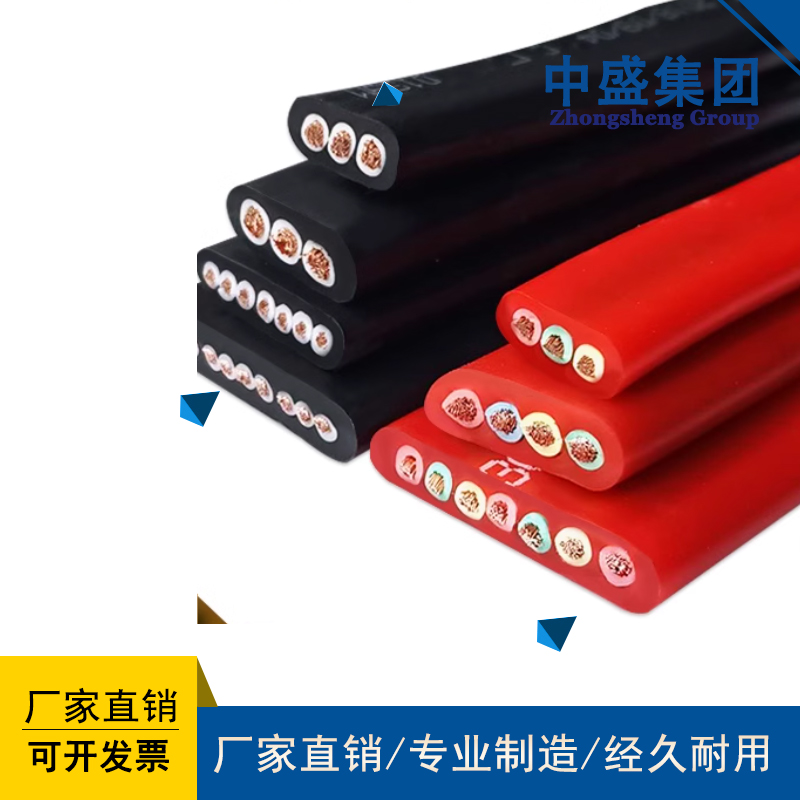

YJGCFPB電纜有抗拉，耐磨等不錯性能，可以當作堆取料機電纜，港機電纜，起重機電纜等大型機械設備電纜使用，如交流額定電壓6/10KV料場、
YJGCFPB cables have good properties such as tensile strength and wear resistance, and can be used as cables for large mechanical equipment such as stacker reclaimer cables, port machinery cables, crane cables, etc., such as AC rated voltage 6/10KV material yards
碼頭的堆取料機及港機上變壓器連接用高壓扁平電纜，導體采用鍍錫軟芯結構，導體絕緣采用進口硅橡膠絕緣材料，電纜具有耐高溫、耐寒、耐
High voltage flat cables are used for connecting the stacker reclaimer at the dock and the transformer on the port machinery. The conductors are made of tin plated soft core structure, and the insulation of the conductors is made of imported silicone rubber insulation material. The cables are resistant to high temperature, cold, and high temperature
油、耐腐蝕以及柔軟耐磨抗拉等特性，電纜可根據用戶需要設計編制加入多芯控制電纜及光纖通訊即制成高壓動力、多芯控制及光纖通訊組合扁
The cable has characteristics such as oil resistance, corrosion resistance, and flexibility, wear resistance, and tensile strength. It can be designed and compiled according to user needs. By adding multi-core control cables and fiber optic communication, it can be made into a combination of high-voltage power, multi-core control, and fiber optic communication flat cables
平電纜。產品廣泛用于電力、冶金、石油化工、礦山、水泥、船舶工業、港口及移動設備制造等行業。
Flat cable. The product is widely used in industries such as electricity, metallurgy, petrochemicals, mines, cement, shipbuilding, ports, and mobile equipment manufacturing.
注：機上固定敷設軟電纜參照第 頁章節阻燃耐熱丁腈電力軟電纜及第 頁第三章節阻燃耐熱丁腈控制軟電纜。
Note: For fixed installation of flexible cables on the machine, please refer to the chapter on flame-retardant and heat-resistant nitrile power flexible cables on page and the chapter on flame-retardant and heat-resistant nitrile control flexible cables on page 3.
二、產品執行標準
2、 Product execution standards
Q/AT2005-4標準
Q/AT2005-4 standard
阻燃性能試驗執行GB12666.5-90規定
The flame retardant performance test shall comply with the provisions of GB12666.5-90
三、基本電纜規格及結構參數
3、 Basic cable specifications and structural parameters
低煙無鹵電纜移動設備卷筒用6KV高壓扁平電纜
6KV high-voltage flat cable for low smoke and halogen-free cable mobile equipment drum
型 號 電 壓 K V 電 纜 規 格 mm2 電 纜 外 型 尺寸 ㎜ 電纜彎曲半徑㎜ 電纜參考重量kg/m YJGCFPB 6 3×16 3×16/3 67×27 540 3.0200 YJGCFPB 6 3×25 3×16/3 78×29 580 4.1700 YJGCFPB 6 3×35 3×16/3 80×31 620 4.6850 YJGCFPB 6 3×50 3×16/3 92×35 700 5.9860 YJGCFPB 6 3×70 3×16/3 95×37 740 6.7120 YJGCFPB 6 3×95 3×16/3 103×39 780 8.0120 YJGCFPB 6 4×16 85×27 540 3.8140 YJGCFPB 6 4×25 101×29 580 5.3210 YJGCFPB 6 4×35 105×31 620 5.9850 YJGCFPB 6 4×50 118×35 700 7.5380 YJGCFPB 6 4×70 127×37 740 8.9760 YJGCFPB 6 3×16 1×10 84×27 540 3.8570 YJGCFPB 6 3×25 1×10 89×29 580 4.9640 YJGCFPB 6 3×35 1×16 91×31 620 5.6810 YJGCFPB 6 3×50 1×25 113×35 700 7.2160 YJGCFPB 6 3×70 1×35 121×37 740 8.3180 YJGCFPB 6 3×95 1×35 127×39 780 9.5430 型號 電壓KV 電纜規格mm2 電纜外型尺寸㎜ 電纜彎曲半徑㎜ 電纜參考重量kg/m YJGCFPB 6 3×16 3×16/3 6FO 81×27 540 3.1489 YJGCFPB 6 3×25 3×16/3 6FO 86×29 580 4.8451 YJGCFPB 6 3×35 3×16/3 6FO 92×31 620 4.9725 YJGCFPB 6 3×50 3×16/3 6FO 106×35 700 6.3520 YJGCFPB 6 3×70 3×16/3 6FO 114×37 740 7.4290 型號 電壓KV 電纜規格mm2 電纜外型尺寸㎜ 電纜彎曲半徑㎜ 電纜參考重量kg/m YJGCFPB 10 3×16 3×16/3 69×28 560 3.0800 YJGCFPB 10 3×25 3×16/3 80×30 600 4.2100 YJGCFPB 10 3×35 3×16/3 82×32 640 4.7120 YJGCFPB 10 3×50 3×16/3 94×36 720 6.0200 YJGCFPB 10 3×70 3×16/3 98×38 760 6.8810 YJGCFPB 10 3×95 3×16/3 106×40 800 8.0740 YJGCFPB 10 4×16 87×28 560 3.9560 YJGCFPB 10 4×25 103×30 600 5.4380 YJGCFPB 10 4×35 108×32 640 6.0460 YJGCFPB 10 4×50 122×36 720 7.6360 YJGCFPB 10 4×70 130×38 760 9.1310 YJGCFPB 10 3×16 1×10 88×28 560 3.9010 YJGCFPB 10 3×25 1×10 93×30 600 5.0980 YJGCFPB 10 3×35 1×16 95×32 640 5.7640 YJGCFPB 10 3×50 1×25 117×36 720 7.3000 YJGCFPB 10 3×70 1×25 125×38 760 8.6340 YJGCFPB 10 3×95 1×35 131×40 800 9.6580
| 型號 | 電壓KV | 電纜規格mm2 | 電纜外型尺寸㎜ | 電纜彎曲半徑㎜ | 電纜參考重量kg/m |
| YJGCFPB | 10 | 3×16 3×16/3 6FO | 84×28 | 560 | 3.2383 |
| YJGCFPB | 10 | 3×25 3×16/3 6FO | 89×30 | 600 | 4.9320 |
| YJGCFPB | 10 | 3×35 3×16/3 6FO | 95×32 | 640 | 5.0130 |
| YJGCFPB | 10 | 3×50 3×16/3 6FO | 109×36 | 720 | 6.4580 |
| YJGCFPB | 10 | 3×70 3×16/3 6FO | 117×38 | 760 | 7.5690 |
