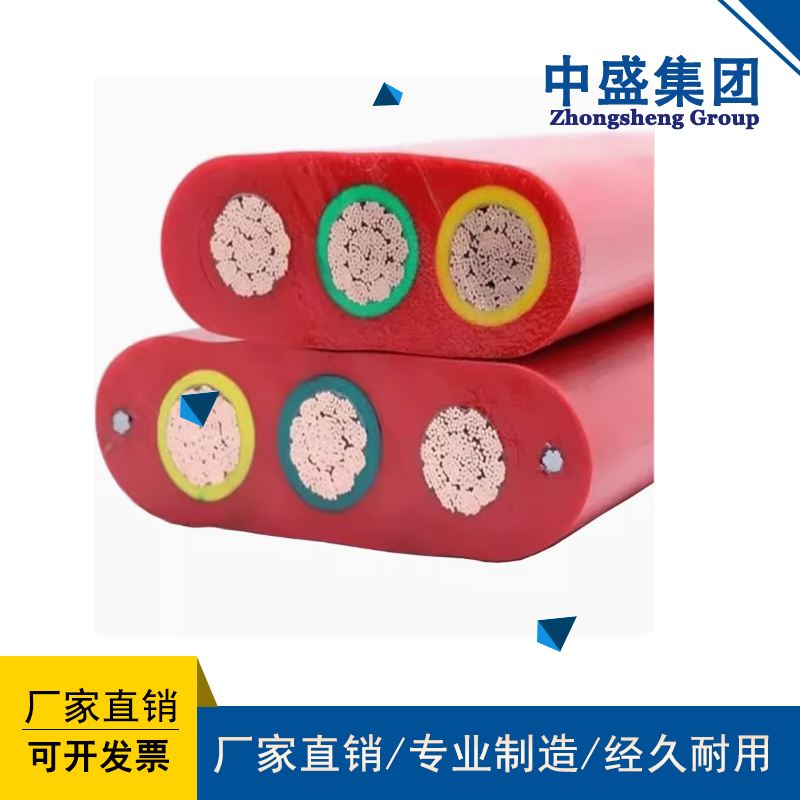

- 產品名稱：Flat flexible cable YEFB YEFPB
- 瀏覽：
- 添加時間：2024-07-05 16:51:42
- 推薦度：
一、產品特點及用途
1、 Product features and uses
該產品具有耐寒、柔軟、耐磨、防油等特性，適用于交流額定電壓0.6/1KV及以下具有耐寒、防油等特殊要求的移動電器
This product has characteristics such as cold resistance, softness, wear resistance, and oil resistance, and is suitable for mobile appliances with special requirements such as cold resistance and oil resistance for AC rated voltage of 0.6/1KV and below
纜，目前本產品已廣泛應用于冶金、電力、船舶、汽車制造等行業。
Cable, this product has been widely used in industries such as metallurgy, power, shipbuilding, and automotive manufacturing.
二、產品執行標準
2、 Product execution standards
企業標準，阻燃性能試驗執行GB/T 19666-2019規定
Enterprise standard, flame retardant performance test in accordance with GB/T 19666-2019 regulations
三、使用特性
3、 Usage characteristics
1.交流額定電壓
1. AC rated voltage
較好工作溫度
Better working temperature
較好環境溫度：固定敷設-40℃
Better ambient temperature: Fixed laying -40 ℃
2.電纜安裝敷設溫度應不低于0℃
2. The installation and laying temperature of cables should not be lower than 0 ℃
3. 電纜允許彎曲半徑：電纜***小為電纜外徑的12倍
3. Cable allowable bending radius: The minimum allowable bending radius of the cable is 12 times the outer diameter of the cable
四：產品基本型號及名稱
4： Basic model and name of the product
YFFB 丁腈聚氯乙烯絕緣及護套扁平軟電纜 0.6/1kV
YFFB nitrile polyvinyl chloride insulated and sheathed flat flexible cable 0.6/1kV
主要用于起重、輸送機、中小型挖掘
Mainly used for lifting, conveyor, and small and medium-sized excavation
機、裝卸機
Machine, loading and unloading machine
YFFR 丁腈聚氯乙烯絕緣及護套復合圓形軟電纜 0.6/1kV
YFFR nitrile polyvinyl chloride insulated and sheathed composite circular flexible cable 0.6/1kV
主要用于大中型野外作業的移動機械，
Mobile machinery mainly used for large and medium-sized field operations,
YEFPB 如起重機，挖掘機，堆取材料機等 乙丙橡膠絕緣丁腈聚氯乙烯絕緣及護套屏蔽型
YEFPB, such as cranes, excavators, stacker material machines, etc., are ethylene propylene rubber insulated, nitrile polyvinyl chloride insulated, and shielded with sheaths
扁平軟電纜
Flat flexible cable
0.6/1kV
0.6/1kV
YFFBJ
YFFBJ
丁腈聚氯乙烯絕緣及護套承拉(鋼絲加強型移
Nitrile polyvinyl chloride insulation and sheath tensile strength (reinforced by steel wire)
動)扁平軟電纜
Dynamic flat flexible cable
0.6/1kV
0.6/1kV
主要用于低層建筑物的電梯和其它移動
Mainly used for elevators and other mobility in low rise buildings
機械的控制電纜
Mechanical control cables
YFFBJL
YFFBJL
丁腈聚氯乙烯絕緣及護套絞合承拉(鋼絲加強型
Nitrile polyvinyl chloride insulation and sheath twisted tensile (steel wire reinforced)
移動)扁平軟電纜
Mobile flat flexible cable
450/750V 主要用于高層建筑物電梯的控制電纜
450/750V is mainly used for control cables of elevators in high-rise buildings
YFFBFJL
YFFBFJL
丁腈聚氯乙烯絕緣及護套絞合承拉、控制、通
Nitrile polyvinyl chloride insulation and sheath twisted tensile, control, and connection
信復合(鋼絲加強型移動)扁平軟電纜N
Xin Composite (Steel Wire Reinforced Mobile) Flat Flexible Cable N
450/750V 主要用于電梯的控制電纜
450/750V is mainly used for elevator control cables
YVFB 聚氯乙烯絕緣丁腈護套移動扁平軟電纜 0.6/1kV
YVFB PVC insulated nitrile sheathed mobile flat flexible cable 0.6/1kV
主要用于起重、輸送機、中小型挖掘
Mainly used for lifting, conveyor, and small and medium-sized excavation
機、裝卸機It
Machine, loading and unloading machine It
YVFR 聚氯乙烯絕緣丁腈護套移動圓形軟電纜 0.6/1kV
YVFR PVC insulated nitrile sheathed mobile circular flexible cable 0.6/1kV
YVFBP
YVFBP
聚氯乙烯絕緣丁腈護套銅編織屏蔽移動扁平軟
PVC insulated nitrile sheathed copper braided shielding mobile flat soft
電纜
Cable
0.6/1kV
0.6/1kV
YVFRP
YVFRP
聚氯乙烯絕緣丁腈護套銅編織屏蔽移動圓形軟
PVC insulated nitrile sheathed copper braided shielding mobile circular soft
電纜
Cable
0.6/1kV
0.6/1kV
