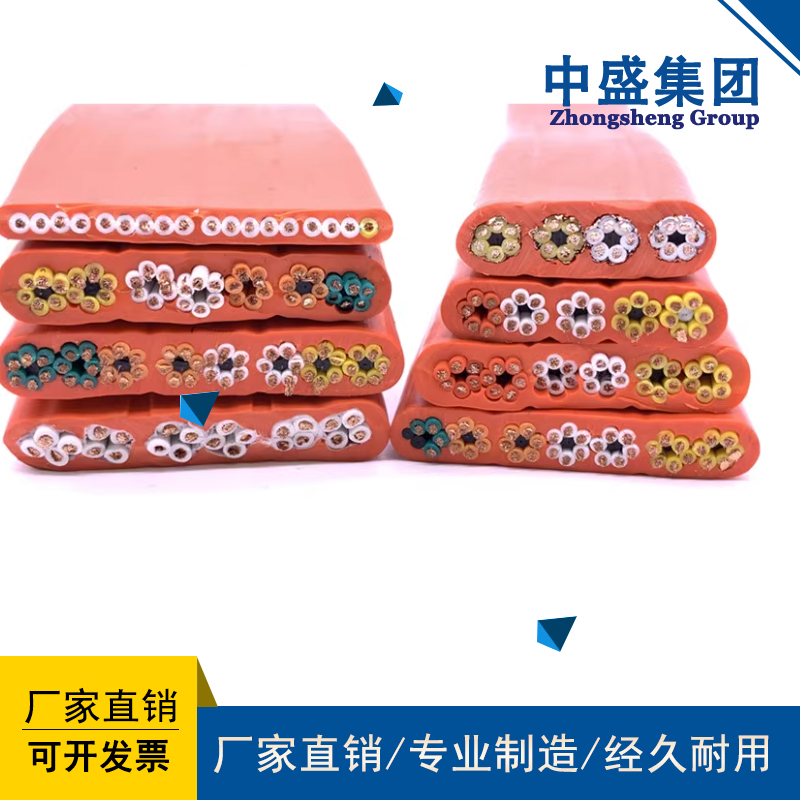

        • 產品名稱：Flat Cable YFFBG
          •

        • 瀏覽：
          •

        • 添加時間：2024-07-05 17:00:25
          •

        • 推薦度：
          •

        •
          •













        介紹：






        本產品適用于交流額定電壓0.6/1KV及以下，是連接各種頻繁移動式電氣設備的銅芯橡皮絕緣橡皮護套軟電纜，尤其適用于卷筒、電動葫蘆、行車等各種移動設備。
        This product is suitable for AC rated voltage of 0.6/1KV and below. It is a copper core rubber insulated rubber sheathed flexible cable used to connect various frequently moving electrical equipment, especially suitable for various mobile devices such as drums, electric hoists, and cranes.

        型  號
        model
        產品名稱
        Product Name
        芯  數
        Number of cores
        標稱截面  mm2
        Nominal cross-section mm2
        YR
        YR
        丁苯絕緣及護套移動型軟電纜
        Butadiene styrene insulated and sheathed mobile flexible cables
        1～60
        1~60
        0.5～240
        0.5～240
        YRP
        YRP
        丁苯絕緣及護套金屬屏蔽移動型軟電纜
        Styrene butadiene insulated and sheathed metal shielded mobile flexible cables
        1～60
        1~60
        0.5～240
        0.5～240
        YRF
        YRF
        丁苯絕緣氯丁護套移動型軟電纜
        Butadiene styrene insulated chloroprene sheathed mobile flexible cable
        1～60
        1~60
        0.5～240
        0.5～240
        YRFG
        YRFG
        丁苯絕緣氯丁護套移動型鋼絲抗拉軟電纜
        Styrene butadiene insulated chloroprene sheathed mobile steel wire tensile flexible cable
        1～60
        1~60
        0.5～240
        0.5～240
        YVFB
        YVFB
        丁晴絕緣丁晴護套移動扁平軟電纜
        Dingqing insulated Dingqing sheathed mobile flat flexible cable
        1～60
        1~60
        0.5～240
        0.5～240
        YVFBG
        YVFBG
        丁晴絕緣、護套移動扁平型鋼絲抗拉軟電纜
        Ding Qing insulated and sheathed mobile flat steel wire tensile soft cable
        1～60
        1~60
        0.5～240
        0.5～240
        YVFBPG
        YVFBPG
        丁晴絕緣、護套屏蔽移動扁平抗拉軟電纜
        Ding Qing insulated and sheathed shielded mobile flat tensile soft cable
        1～60
        1~60
        0.5～240
        0.5～240
        YFFB
        YFFB
        氯丁絕緣氯丁護套扁平移動軟電纜
        Chloroprene insulated chloroprene sheathed flat mobile flexible cable
        1～60
        1~60
        0.5～240
        0.5～240
        YFFBG
        YFFBG
        氯丁絕緣、護套扁平移動型鋼絲抗拉軟電纜
        Chloroprene insulated and sheathed flat mobile steel wire tensile flexible cable
        1～60
        1~60
        0.5～240
        0.5～240
        YFFBPG
        YFFBPG
        氯丁絕緣、護套屏蔽移動扁平鋼絲抗拉軟電纜
        Chloroprene insulated and sheathed shielded mobile flat steel wire tensile flexible cable
        1～60
        1~60
        0.5～240
        0.5～240
        五：主要技術指標
        5： Main technical indicators
        1．成品電纜導體(R類)直流電阻(符合GB3956規定)參照附錄A表2。
        1. The finished cable conductor (Class R) DC resistance (in accordance with GB3956 regulations) shall refer to Appendix A Table 2.
        2．20℃時絕緣電阻不小于50MΩ/KM。
        At 2.20 ℃, the insulation resistance shall not be less than 50M Ω/KM.
        3．成品電纜經受交流50HZ3.5KV/5min電壓試驗不擊穿。
        3. The finished cable shall withstand an AC voltage test of 50Hz, 3.5KV, and 5min without breakdown.
        六：基本電纜規格及結構參數
        6： Basic cable specifications and structural parameters
        線芯*標稱截面(mm2)
        Core * nominal cross-section (mm2)
        導體結構
        Conductor structure
        (根數*直徑)
        (Number of pieces * diameter)
        mm
        mm
        電纜zui大外徑
        Cable diameter (mm)
        YFFB
        YFFB
        2*1.5
        48*0.20
        11.4*7.5
        2*2.5
        51*0.25
        14.0×9.0
        2*4
        82*0.25
        15.8×9.5
        2*6
        123*0.25
        18.2×10.8
        2*10
        204*0.25
        21.5×12.5
        2*16
        323*0.25
        24.2×13.9
        2*25
        513*0.25
        28.5×16.2
        2*35
        722*0.25,
        31.8×18.1
        2*50
        1026*0.25
        36.6×20.5
        2*70
        1406*0.25
        41.6×23.3
        2*95
        486*0.50
        47.3×26.3
        2*120
        608*0.50
        50.8×28.1
        2*150
        760*0.50
        56.3×31.2
        3*1.5
        48*0.20
        15.8*7.5
        3*2.5
        51*0.25
        18.8×9.0
        3*4
        82*0.25
        21.6×9.5
        3*6
        123*0.25
        25.8×11.3
        3*10
        204*0.25
        32.1×13.2
        3*16
        323*0.25
        34.2×14.9
        3*25
        513*0.25
        42.3×18.2
        3*35
        722*0.25
        46.2×19.1
        3*50
        1026*0.25
        55.8×22.0
        3*70
        1406*0.25
        66.8×26.8
        3*95
        486*0.50
        70.2×28.0
        3*120
        608*0.50
        85.5×36.0
        3*150
        760*0.50
        95.0×35.1
        4*1.5
        48*0.20
        20.5*7.5
        4*2.5
        945*0.50
        25.8×9.0
        4*4
        82*0.25
        29.4×9.5
        4*6
        123*0.25
        34.1×11.8
        4*10
        204*0.25
        40.4×12.9
        4*16
        323*0.25
        45.9×15.6
        4*25
        513*0.25
        54.1×18.1
        4*35
        722*0.25
        58.6×, 20, .2
        4*50
        1026*0.25
        83.0×26.5
        3×4+2.5
        82*0.25/51*0.25
        30.6×10.7
        3×6+4
        123*0.25/82*0.25
        31.0×12.8
        3×10+6
        204*0.25/123*0.25
        35.0×12.9
        3×16+6
        323*0.25/123*0.25
        41.3×15.6
        3×25+10
        513*0.25/204*0.25
        49.1×18.1
        3×35+10
        722*0.25/204*0.25
        64.2×20.2
        3×50+16
        1026*0.25/323*0.25
        80.2×23.4
        3×70+25
        1406*0.25/513*0.25
        85.3×27.2
        3×95+35
        486*0.50/722*0.25
        97.6×29.7
        3×120+35
        608*0.50/722*0.25
        107.1×31.9
        5*1.5
        48*0.20
        25.5*7.5
        5*2.5
        51*0.25
        32.0*9.0
        5*4
        82*0.5
        37.5*10
        6*1.5
        48*0.20
        31*7.5
        6*2.5
        51*0.25
        40.9*9.0
        6*4
        82*0.5
        42.0*10
        7*1.5
        48*0.20
        32.0*7.0
        7*2.5
        51*0.25
        41.0*9.0
        7*4
        82*0.25
        44.0*10.0
        8*1.5
        48*0.20
        38.5*7.8
        8*2.5
        51*0.25
        48.0*8.0
        8*4
        82*0.25
        51.0*10.6
        10*1.5
        48*0.20
        44.5*7.8
        10*2.5
        51*0.25
        59.0*9.0
        10*4
        82*0.25
        65.2*11.0
        12*1.5
        48*0.20
        59.5*8.5
        12*2.5
        51*0.25
        70.0*8.5
        12*4
        82*0.25
        80.2*11.0
