- 產品名稱：Silicone rubber cableYGC
- 瀏覽：
- 添加時間：2024-07-11 15:51:34
- 推薦度：
硅橡膠耐高溫電力電纜適用于交流額定電壓0.6/1KV及以下固定敷設用動力傳輸線或移動電器用連接電纜，產品具有耐熱輻射、耐寒、耐酸堿及腐蝕性氣體、防水等特性，電纜結構柔軟，輻射方便，高溫(高寒)環境下電氣性能穩定，抗老化性能突出，使用壽命長，廣泛用于冶金、電力、石化、電子、汽車制造等行業

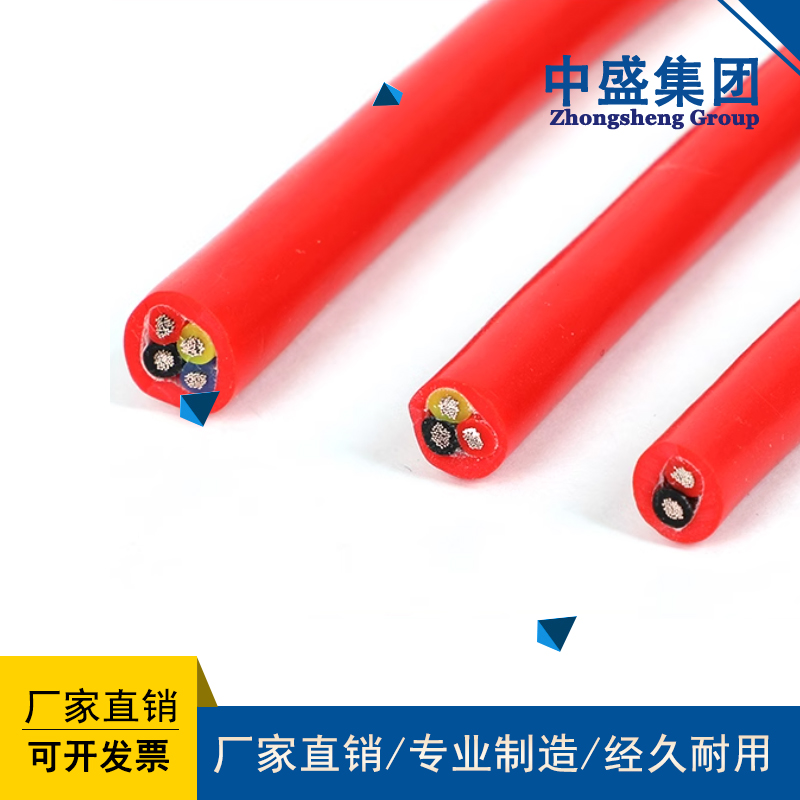

Silicone rubber high temperature resistant power cable is suitable for power transmission lines for fixed laying or connecting cables for mobile appliances with AC rated voltage of 0.6/1KV and below. The product has the characteristics of heat radiation resistance, cold resistance, acid alkali resistance, corrosive gas resistance, waterproof, etc. The cable structure is soft, radiation convenient, and the electrical performance is stable under high temperature (high cold) environment, with outstanding anti-aging performance and long service life. It is widely used in metallurgy, power, petrochemical, electronics, automobile manufacturing and other industries
低煙無鹵電纜硅橡膠耐高溫電力電纜產品結構：
Low smoke halogen-free cable, silicone rubber, high temperature resistant power cable product structure:
導體：多股細絞成束鍍錫銅絲，符合IEC 60228/VDE 0295，5類導體
Conductor: Multiple strands of finely twisted tinned copper wire, compliant with IEC 60228/VDE 0295, Class 5 conductor
絕緣：特制抗撕裂硅橡膠混合材料 無鹵環保
Insulation: Special tear resistant silicone rubber mixed material, halogen-free and environmentally friendly
芯線：芯線絞合成纜，芯線顏色符合VDE 0293
Core wire: The core wire is twisted into a cable, and the color of the core wire complies with VDE 0293
JZ 黑色芯線白色數字編碼，帶黃綠導線
JZ black core wire with white numerical code, with yellow and green wires
JB 彩芯線，帶黃綠導線
JB colored core wire with yellow and green wires
OZ 黑色芯線白色數字編碼， 不帶黃綠導線
OZ black core wire with white numerical encoding, without yellow green wires
OB 彩芯線，不帶黃綠導線
OB color core wire, without yellow green wire
屏蔽: 鍍錫銅絲編織屏蔽。
Shielding: Tin plated copper wire braided shielding.
外護套：覆層 特制抗撕裂硅橡膠混合材料 無鹵環保
Outer sheath: special tear resistant silicone rubber composite material with halogen-free and environmentally friendly coating
外護套顏色：黑色
Outer sheath color: black
硅橡膠耐高溫電力電纜使用特性
Characteristics of use of silicone rubber high temperature resistant power cables
1． 工作溫度： 180℃ 最低環境溫度：固定敷設-60℃交流額定電壓：U0/U 0.6/1KV
1. Working temperature: 180 ℃ Minimum ambient temperature: Fixed installation -60 ℃ AC rated voltage: U0/U 0.6/1KV
2． 電纜安裝敷設溫度應不低于-25℃。
2. The temperature for cable installation and laying should not be lower than -25 ℃.
3． 電纜允許彎曲半徑：電纜最小為電纜外徑的10倍 四：基本型號及名稱
3. Allowable bending radius for cables: The minimum bending radius for cables is 10 times the outer diameter of the cable. 4. Basic model and name
型號
model
產品名稱：YGC22系列 硅橡膠耐高溫電力電纜/天纜電氣就是好用
Product Name: YGC22 Series Silicone Rubber High Temperature Resistant Power Cable/Sky Cable Electrical is Easy to Use
YGC
YGC
硅橡膠絕緣硅橡膠護套電力電纜
Silicone rubber insulated and silicone rubber sheathed power cable
YGCR
YGCR
硅橡膠絕緣硅橡膠護套移動用電力軟電纜
Silicone rubber insulated silicone rubber sheathed mobile power flexible cable
YGCP
YGCP
硅橡膠絕緣硅橡膠護套銅編織屏蔽電力電纜
Silicone rubber insulated, silicone rubber sheathed, copper braided shielded power cable
YGC22
YGC22
硅橡膠絕緣硅橡膠護套鋼帶鎧裝電力電纜
Silicone rubber insulated, silicone rubber sheathed, steel tape armored power cable
JGG
JGG
硅橡膠絕緣硅橡膠護套安裝線
Installation line with silicone rubber insulation and silicone rubber sheath
JGGR
JGGR
硅橡膠絕緣硅橡膠護套移動用安裝軟線
Silicone rubber insulation, silicone rubber sheath, mobile installation flexible wire
JGGP
JGGP
硅橡膠絕緣硅橡膠護套銅編織屏蔽安裝線
Silicone rubber insulation, silicone rubber sheath, copper braided shielding installation wire
JHXG
JHXG
硅橡膠絕緣電機引接線，YGC22系列 硅橡膠耐高溫電力電纜/天纜電氣就是好用
Silicone rubber insulated motor lead wire, YGC22 series silicone rubber high-temperature resistant power cable/overhead cable electrical is easy to use
