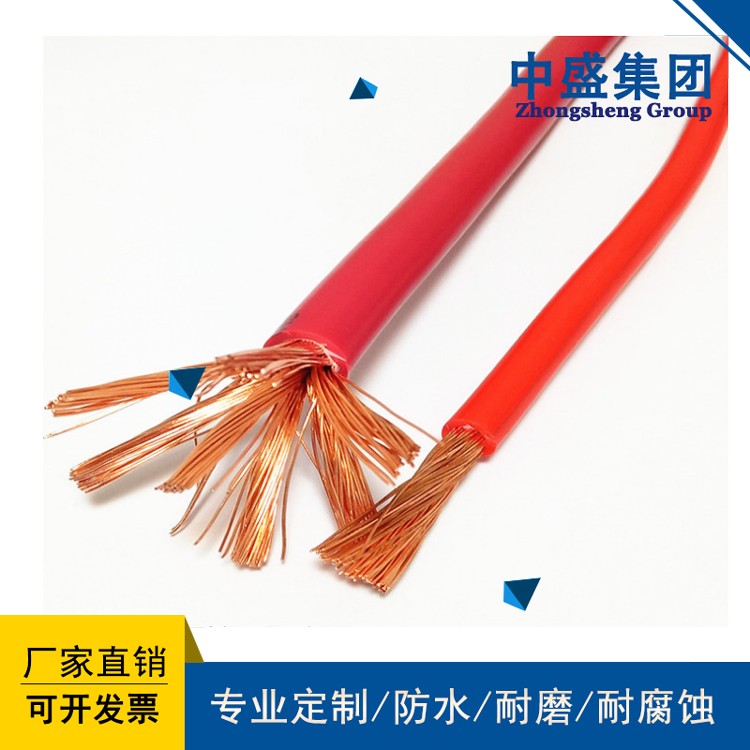

- 產品名稱：Silicone rubber cable JGG
- 瀏覽：
- 添加時間：2024-07-11 16:12:20
- 推薦度：
一：產品特點及用途：
1： Product features and uses:
本產品適用于交流額定電壓0.6/1KV及以下固定敷設用動力傳輸線或移動電器用連接電纜，產品具有耐熱輻射、耐寒、耐酸堿及腐蝕性氣體、防水等特性，電纜結構柔軟，輻射方便，高溫（高寒）環境下電氣性能穩定，抗老化性能突出，使用壽命長，廣泛用于冶金、電力、石化、電子、汽車制造等行業。
This product is applicable to power transmission lines for fixed laying or connecting cables for mobile appliances with AC rated voltage of 0.6/1KV and below. The product has the characteristics of heat radiation resistance, cold resistance, acid alkali resistance, corrosive gas resistance, waterproof, etc. The cable structure is soft, radiation convenient, electrical performance is stable under high temperature (high cold) environment, anti-aging performance is outstanding, and service life is long. It is widely used in metallurgy, power, petrochemical, electronics, automobile manufacturing and other industries.
二：產品執行標準
2： Product execution standards
Q/HHTZH001.1
Q/HHTZH001.1
阻燃耐火特性試驗執行GB12666-90要求
The flame retardant and fire-resistant characteristics test shall comply with the requirements of GB12666-90
三：使用特性
3： Usage characteristics
1． 交流額定電壓：U0/U 0.6/1KV
1. Rated AC voltage: U0/U 0.6/1KV
zui高工作溫度： 180℃
Zui High Operating Temperature: 180 ℃
zui低環境溫度：固定敷設-60℃
Zui low ambient temperature: fixed installation -60 ℃
2． 電纜安裝敷設溫度應不低于-25℃。
2. The temperature for cable installation and laying should not be lower than -25 ℃.
3． 電纜允許彎曲半徑：電纜zui小為電纜外徑的10倍
3. Allowable bending radius for cables: The minimum allowable bending radius for cables is 10 times the outer diameter of the cable
四：基本型號及名稱
4： Basic model and name
型號
model
產品名稱
Product Name
YGC
YGC
硅橡膠絕緣硅橡膠護套電力電纜
Silicone rubber insulated and silicone rubber sheathed power cable
YGCR
YGCR
硅橡膠絕緣硅橡膠護套移動用電力軟電纜
Silicone rubber insulated silicone rubber sheathed mobile power flexible cable
YGCP
YGCP
硅橡膠絕緣硅橡膠護套銅編織屏蔽電力電纜
Silicone rubber insulated, silicone rubber sheathed, copper braided shielded power cable
YGC22
YGC22
硅橡膠絕緣硅橡膠護套鋼帶鎧裝電力電纜
Silicone rubber insulated, silicone rubber sheathed, steel tape armored power cable
JGG
JGG
硅橡膠絕緣硅橡膠護套安裝線
Installation line with silicone rubber insulation and silicone rubber sheath
JGGR
JGGR
硅橡膠絕緣硅橡膠護套移動用安裝軟線
Silicone rubber insulation, silicone rubber sheath, mobile installation flexible wire
JGGP
JGGP
硅橡膠絕緣硅橡膠護套銅編織屏蔽安裝線
Silicone rubber insulation, silicone rubber sheath, copper braided shielding installation wire
JHXG
JHXG
硅橡膠絕緣電機引接線
Silicone rubber insulated motor lead wire
五：代號名稱和含義
5： Code name and meaning
代號
Code
代號含義
Meaning of code
Y
Y
系列代號（移動軟電纜）
Series code (mobile flexible cable)
G
G
硅橡膠
silicon rubber
C
C
重型
heavy
22
twenty-two
鋼帶鎧裝
Steel strip armor
P
P
銅編織屏蔽
Copper braided shielding
R
R
多股絞合導體
Multi stranded conductor
J
J
電機引接線
Motor lead wire
