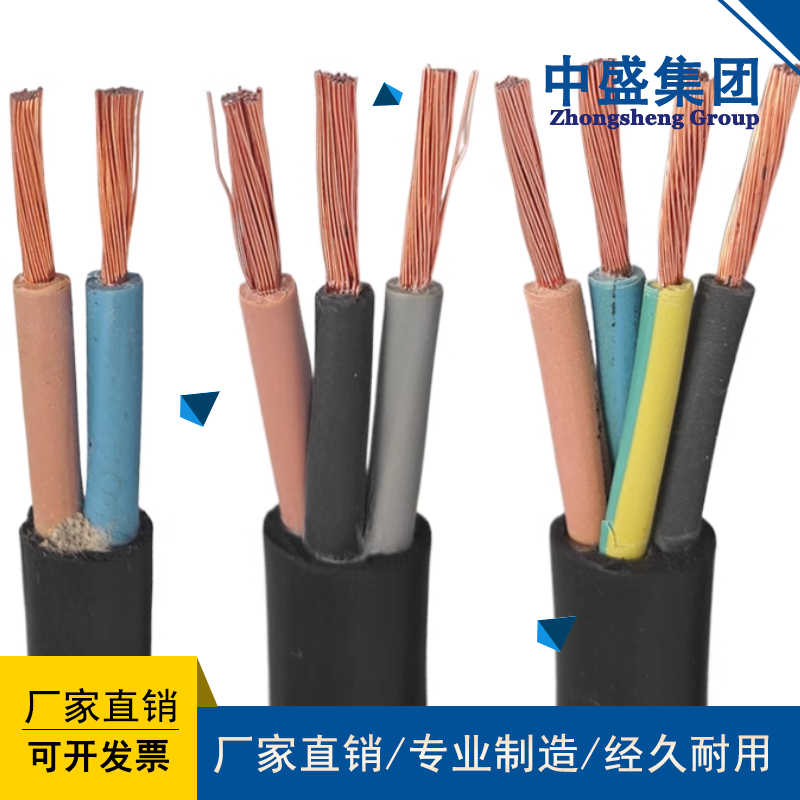

- 產品名稱：Rubber sheathed flexible cableYQ、YQZP
- 瀏覽：
- 添加時間：2024-07-16 09:41:18
- 推薦度：
用途：本產品適用于交流額定電壓為450/750V及下家用電器、電動工具和各種移動式電氣設備的連接
Usage: This product is suitable for connecting household appliances, power tools, and various mobile electrical equipment with AC rated voltage of 450/750V and below
使用條件：
Usage conditions:
額定電壓為為450/750V、300/500V和300/300V
The rated voltages are 450/750V, 300/500V, and 300/300V
2、電纜的長期允許工作溫度不超過60℃。
2. The long-term allowable working temperature of the cable shall not exceed 60 ℃.
3、“W”型派生電纜具有耐氣候和一定的耐油性能，適宜于戶外或接觸油污的場合使用
3. The "W" type derived cable has weather resistance and certain oil resistance, making it suitable for outdoor or oil contaminated environments
電纜型號:Cable model:
| 型號 | 名稱 | 用途 |
| YQ、YQW、YQZP | 輕型橡套軟電纜yqw | 用于輕型移動電器設備和工 具Used for lightweight mobile electrical equipment and tools |
電纜的導電線芯結構及電阻Conductive core structure and resistance of cables
| 標稱截面mm2 | 結構 | 20℃導體直流阻Ω/km | 標稱截面mm2 | 結構 | 20℃導體直流阻Ω/km |
| 0.3 | 16/0.15 | ≤69.2 | 16 | 126/0.40 | ≤1.21 |
| 0.5 | 28/0.15 | ≤39.0 | 25 | 196/0.40 | ≤0.780 |
| 0.75 | 24/0.20 | ≤26.0 | 35 | 276/0.40 | ≤0.554 |
| 1.0 | 32/0.20 | ≤19.5 | 50 | 396/0.40 | ≤0.386 |
| 1.5 | 30/0.25 | ≤13.3 | 70 | 360/0.50 | ≤0.272 |
| 2.5 | 49/0.25 | ≤7.98 | 95 | 475/0.50 | ≤0.206 |
| 4 | 56/0.30 | ≤4.95 | 120 | 608/0.50 | ≤0.161 |
| 6 | 84/0.30 | ≤3.30 | 150 | 756/0.50 | ≤0.129 |
| 10 | 84/0.40 | ≤1.91 |
YQ、YQW 300/300V
| 芯數(shù)×標稱截面mm2 | 絕緣標稱厚度 | 護套標稱厚度 | 平均外徑mm | 參考重量kg/km | ||
| 下限 | 上限 | YQ | YQW | |||
| 2×0.3 | 0.5 | 0.7 | 4.6 | 6.6 | 40 | 48 |
| 2×0.5 | 0.5 | 0.7 | 5.0 | 7.2 | 49 | 59 |
| 3×0.3 | 0.5 | 0.7 | 4.8 | 7.0 | 57 | 68 |
| 3×0.5 | 0.5 | 0.7 | 5.2 | 7.6 | 69 | 83 |
