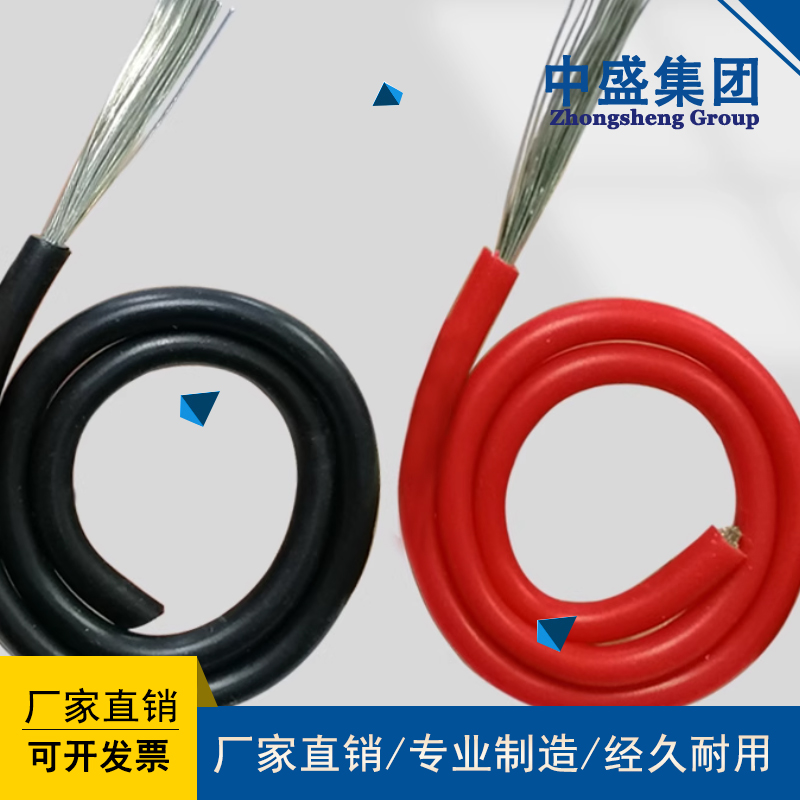

- 產品名稱：Motor lead wire JHXG
- 瀏覽：
- 添加時間：2024-07-19 16:00:12
- 推薦度：
【簡單介紹】
[Brief Introduction]
JHXG 180度電機引接線產品適用于交流額定電壓0.6/1KV及以下固定敷設用動力傳輸線或移動電器用連接電纜，產品具有耐熱
JHXG 180 degree motor lead wire product is suitable for fixed power transmission lines or connecting cables for mobile appliances with AC rated voltage of 0.6/1KV and below. The product has heat resistance
輻射、耐寒、耐酸堿及腐蝕性氣體、 防水等特性。
Radiation, cold resistance, acid and alkali resistance, corrosive gases, waterproof and other characteristics.
JHXG型電機引接線產品適用于交流額定電壓0.6/1KV及以下固定敷設用動力傳輸線或移動電器用連接電纜，產品具有耐熱
The JHXG motor lead wire product is suitable for fixed power transmission lines or connecting cables for mobile appliances with AC rated voltage of 0.6/1KV and below. The product has heat resistance
輻射、耐寒、耐酸堿及腐蝕性氣體、 防水等特性，電纜結構柔軟，輻射方便，高溫（高寒）環境下電氣性能穩定，舒緩老化性
Radiation, cold resistance, acid and alkali resistance, corrosive gas resistance, waterproof and other characteristics. The cable structure is soft, easy to radiate, and the electrical performance is stable in high temperature (cold) environments, relieving aging
能突出，使用壽命長，廣泛用于電機連接線、機械裝備、煉化、冶金、電力、石化、電子儀表、汽車制造等行業。
It can stand out and has a long service life, widely used in industries such as motor connecting wires, mechanical equipment, refining, metallurgy, power, petrochemicals, electronic instruments, and automobile manufacturing.
JHXG型電機引接線產品執行標準Q/HHTZH001.1
JHXG motor lead wire products comply with standard Q/HHTZH001.1
阻燃耐火特性試驗執行GB12666-90要求
The flame retardant and fire-resistant characteristics test shall comply with the requirements of GB12666-90
JHXG型電機引接線使用特性
Characteristics of JHXG motor lead wire usage
1．交流額定電壓：U0/U 0.6/1KV高工作溫度： 180℃
1. Rated AC voltage: U0/U 0.6/1KV High operating temperature: 180 ℃
低環境溫度：固定敷設-60℃
Low ambient temperature: Fixed installation -60 ℃
2電纜安裝敷設溫度應不低于-25℃。
The temperature for cable installation and laying should not be lower than -25 ℃.
3 電纜允許彎曲半徑：電纜小為電纜外徑的10倍
3. Allowable bending radius for cables: The minimum bending radius for cables is 10 times the outer diameter of the cable
本產品適用于交流額定電壓0.6/1KV及以下固定敷設用動力傳輸線或移動電器用連接電纜，產品具有耐熱輻射、耐寒、耐酸堿
This product is suitable for fixed installation of power transmission lines or connecting cables for mobile appliances with AC rated voltage of 0.6/1KV and below. The product has heat-resistant radiation, cold resistant, acid and alkali resistant properties
體、 防水等特性，電纜結構柔軟，輻射方便，高溫(高寒)環境下電氣性能穩定，舒緩老化性能突出，使用壽命長，廣泛用于電機
Features such as body and waterproof, flexible cable structure, easy radiation, stable electrical performance in high temperature (cold) environments, outstanding anti-aging performance, long service life, widely used in motors
械裝備、煉化、冶金、電力、石化、電子儀表、汽車制造等行業?！?/p>
Industries such as equipment, refining, metallurgy, power, petrochemicals, electronic instruments, and automobile manufacturing.
二：產品執行標準Q/HHTZH001.1
2： Product execution standard Q/HHTZH001.1
阻燃耐火特性試驗執行GB12666-90要求
The flame retardant and fire-resistant characteristics test shall comply with the requirements of GB12666-90
三：使用特性
3： Usage characteristics
1．交流額定電壓：U0/U 0.6/1KV工作溫度： 180℃
1. Rated AC voltage: U0/U 0.6/1KV Operating temperature: 180 ℃
環境溫度：固定敷設-60℃
Environmental temperature: Fixed installation -60 ℃
2電纜安裝敷設溫度應不低于-25℃。
The temperature for cable installation and laying should not be lower than -25 ℃.
3 電纜允許彎曲半徑：電纜小為電纜外徑的10倍
3. Allowable bending radius for cables: The minimum bending radius for cables is 10 times the outer diameter of the cable
四：JHXG型硅橡膠電機迎接線技術知識、型號產品名稱
4： Technical knowledge, model, and product name of JHXG silicone rubber motor wiring
JG JHXG 硅橡膠絕緣電機連接線
JG JHXG Silicone Rubber Insulated Motor Connection Wire
KGGP 銅芯硅橡膠絕緣護套編織屏蔽控制電纜
KGGP Copper Core Silicone Rubber Insulated Sheath Braided Shielded Control Cable
KGG22 銅芯硅橡膠絕緣硅橡膠護套鋼帶鎧裝控制電纜
KGG22 copper core silicone rubber insulated silicone rubber sheathed steel tape armored control cable
KGGR 銅芯硅橡膠絕緣硅橡膠護套控制軟電纜
KGGR copper core silicone rubber insulated silicone rubber sheathed control flexible cable
KGG32 銅芯硅橡膠絕緣硅橡膠護套細鋼絲鎧裝控制電纜
KGG32 copper core silicone rubber insulated silicone rubber sheathed thin steel wire armored control cable
YGC硅橡膠絕緣硅橡膠護套電力電纜
YGC silicone rubber insulated silicone rubber sheathed power cable
YGCR硅橡膠絕緣硅橡膠護套移動用電力軟電纜
YGCR silicone rubber insulated silicone rubber sheathed mobile power flexible cable
YGCP硅橡膠絕緣硅橡膠護套銅編織屏蔽電力電纜
YGCP silicone rubber insulated silicone rubber sheathed copper braided shielded power cable
YGC22硅橡膠絕緣硅橡膠護套鋼帶鎧裝電力電纜
YGC22 silicone rubber insulated silicone rubber sheathed steel tape armored power cable
JGG硅橡膠絕緣硅橡膠護套安裝線
JGG Silicone Rubber Insulated Silicone Rubber Sheath Installation Line
JGGR硅橡膠絕緣硅橡膠護套移動用安裝軟線
JGGR silicone rubber insulated silicone rubber sheathed mobile installation flexible wire
JGGP硅橡膠絕緣硅橡膠護套銅編織屏蔽安裝線
JGGP silicone rubber insulated silicone rubber sheathed copper braided shielding installation wire
KGG銅芯硅橡膠絕緣硅橡膠護套控制電纜
KGG copper core silicone rubber insulated silicone rubber sheathed control cable
代號 代號含義
Meaning of code names
Y 系列代號(移動軟電纜)
Y series code (mobile flexible cable)
G 硅橡膠
G silicone rubber
C 重型
C Heavy duty
22 鋼帶鎧裝
22 steel belt armor
P 銅編織屏蔽
P copper braided shielding
R 多股絞合導體
R multi stranded conductor
J 電機引接線
J motor lead wire
六：主要技術指標
6： Main technical indicators
1．成品電纜導體(R類)直流電阻(符合GB3956規定)參照附錄A表1和表2。
1. The DC resistance of the finished cable conductor (Class R) (in accordance with GB3956 regulations) shall refer to Table 1 and Table 2 in Appendix A.
2．20℃時絕緣電阻不小于100MΩ/KM
The insulation resistance at 2.20 ℃ shall not be less than 100M Ω/KM
3．成品電纜經受交流50HZ3.5KV/5min電壓試驗不擊穿
3. The finished cable shall withstand AC 50HZ3.5KV/5min voltage test without breakdown
