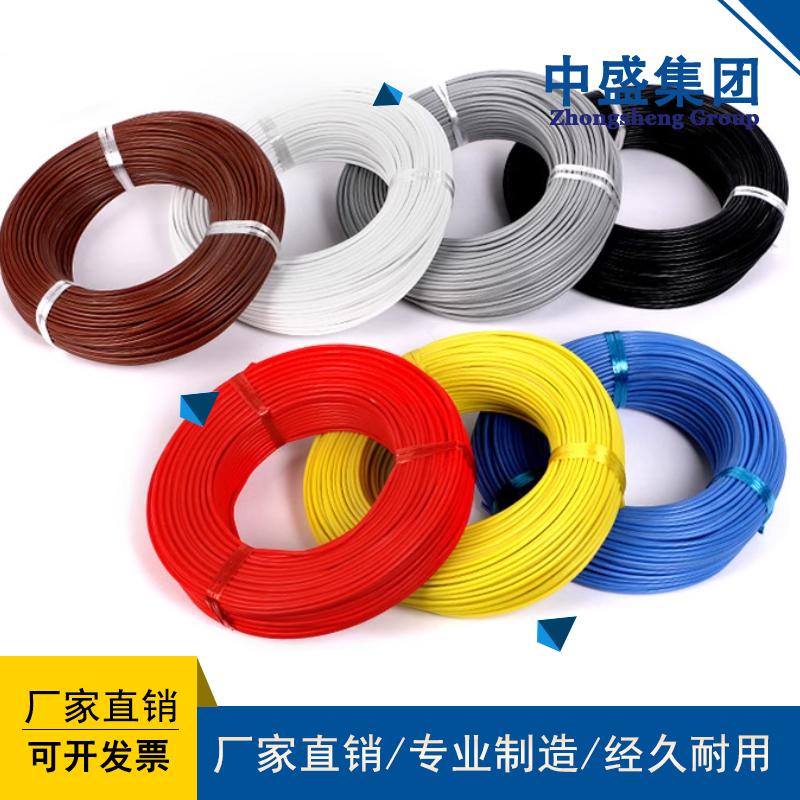

        • 產品名稱：High temperature resistant wireAFR250
          •

        • 瀏覽：
          •

        • 添加時間：2024-07-19 16:08:49
          •

        • 推薦度：
          •

        •
          •













        介紹：






        概述
        summary
        聚四氟乙烯薄膜繞包絕緣安裝線采用PTFE薄膜作為絕緣，按照企業標準生產。該類產品具有******的柔韌性，******的耐高溫性能 ，優良的化學性能 ，耐潮濕 、阻燃等優點。主要用于高溫條件下電子設備 、儀器儀表線路 、飛機布線及其它電器裝置的內部連接等。
        The PTFE film wrapped insulation installation line uses PTFE film as insulation and is produced according to enterprise standards. This type of product has excellent flexibility, outstanding high temperature resistance, excellent chemical properties, moisture resistance, flame retardancy, and other advantages. Mainly used for internal connections of electronic equipment, instrument circuits, aircraft wiring, and other electrical devices under high temperature conditions.
        產品主要性能
        Main performance of the product
        1. 額定電壓 ：交流 220V
        1. Rated voltage: AC 220V
        2.工作溫度 ：-65℃ ~ 200℃   -65℃ ~ 250℃（鍍銀導體）
        2. Working temperature: -65 ℃~200 ℃ -65 ℃~250 ℃ (silver plated conductor)
        3. 絕緣電阻 ：成品電線在室溫下應不小于100MΩ·km
        3. Insulation resistance: The finished wire should not be less than 100M Ω· km at room temperature
        4. 屏蔽編織密度應不小于80%,可以3米以上交貨。
        4. The shielding weaving density should not be less than 80% and can be delivered over 3 meters.
        1.4 常用規格結構數據表（可根據用戶特殊需要定做）
        1.4 Common Specification Structure Data Sheet (can be customized according to user's special needs)


        型號
        model
        芯數×截面
        Number of cores x cross-section
        mm2
        mm2
        導體結構
        Conductor structure
        股數/直徑
        Number of shares/diameter
        mm
        mm
        ***大直流電阻
        Maximum DC resistance
        Ω/km  20℃
        Ω/km  20℃
        絕緣***薄厚度
        The thinnest thickness of insulation
        mm
        mm
        電線外徑
        Outer diameter of wire
        試驗電壓
        Test voltage
        kV
        kV
        型號芯數×截面
        mm2
        Number of cores x cross-section
        mm2
        		導體結構
        股數/直徑
        mm
        Conductor structure
        Number of shares/diameter
        mm
        		***大直流電阻
        Ω/km  20℃
        Maximum DC resistance
        Ω/km  20℃
        		絕緣***薄厚度
        mm
        The thinnest thickness of insulation
        mm
        		電線外徑Outer diameter of wire試驗電壓
        kV
        Test voltage
        kV
        AFR-250
        AF-1
        AFR-200
        AF        		1×0.0357/0.086000.070.671.0
        2×0.0351.50
        3×0.0351.70
        1×0.0510/0.08
        7/0.10        		3700.070.72
        2×0.051.60
        3×0.051.80
        1×0.0714/0.08
        7/0.12        		2600.070.75
        2×0.071.70
        3×0.072.00
        1×0.1021/0.081800.070.85
        2×0.101.80
        3×0.102.10
        1×0.1224/0.08
        7/0.15        		1650.070.87
        2×0.121.80
        3×0.122.10
        1×0.1530/0.08
        19/0.10        		1250.070.90
        2×0.151.80
        3×0.152.20
        1×0.2042/0.08
        27/0.10
        12/0.15
        19/0.12        		1000.071.00
        2×0.202.00
        3×0.202.20
        1×0.3062/0.08
        45/0.10
        18/0.15        		700.071.15
        2×0.302.30
        3×0.302.60
        1× 0.3575/0.08
        45/0.10
        19/0.16        		600.071.20
        2× 0.352.40
        3× 0.352.60
        1× 0.4085/0.08
        54/0.10
        24/0.15        		550.071.30
        2× 0.402.70
        3× 0.403.00
        1× 0.50105/0.08
        66/0.10
        29/0.15
        19/0.18        		420.071.40
        2× 0.502.80
        3× 0.503.10

        注：AF-1 同AFR-250,  AF 同AFR-200（線芯為裸銅 ）.
        常用規格結構數據表（續）
        型號芯數×截面
        mm2        		導體結構
        股數/直徑
        mm        		***大直流電阻
        Ω/km  20℃        		絕緣***薄厚度
        mm        		電線外徑試驗電壓
        kV
        AFRP-250
        AFP-1
        AFRP-200
        AFP        		1×0.0357/0.086000.071.100.8
        2×0.0351.90
        3×0.0352.20
        1×0.0510/0.08
        7/0.10        		3700.071.20
        2×0.052.10
        3×0.052.30
        1×0.0714/0.08
        7/0.12        		2600.071.30
        2×0.072.20
        3×0.072.50
        1×0.1021/0.081800.071.40
        2×0.102.30
        3×0.102.80
        1×0.1224/0.08
        7/0.15        		1650.071.45
        2×0.122.40
        3×0.122.85
        1×0.1530/0.08
        19/0.10        		1250.071.55
        2×0.152.50
        3×0.152.90
        1×0.2042/0.08
        27/0.10
        12/0.15
        19/0.12        		1000.071.75
        2×0.203.10
        3×0.203.25
        1×0.3062/0.08
        45/0.10
        18/0.15        		700.071.80
        2×0.303.20
        3×0.303.50
        1× 0.3575/0.08
        45/0.10
        19/0.16        		600.071.95
        2× 0.353.40
        3× 0.353.70
        1× 0.4085/0.08
        54/0.10
        24/0.15        		550.072.00
        2× 0.403.50
        3× 0.403.90
        1× 0.50105/0.08
        66/0.10
        29/0.15
        19/0.18        		420.072.20
        2× 0.503.90
        3× 0.504.30

        注：AFP-1 同AFRP-250,  AFP 同AFRP-200（線芯為裸銅），P1為鍍錫銅線編織.
        常用規格結構數據表（續）
        型號芯數×截面
        mm2        		導體結構
        股數/直徑
        mm        		***大直流電阻
        Ω/km  20℃        		絕緣***薄厚度
        mm        		電線外徑試驗電壓
        kV
        AFPF
                 		1×0.0357/0.086000.071.300.8
        2×0.0352.20
        3×0.0352.50
        1×0.0510/0.08
        7/0.10        		3700.071.50
        2×0.052.40
        3×0.052.60
        1×0.0714/0.08
        7/0.12        		2600.071.60
        2×0.072.50
        3×0.072.80
        1×0.1021/0.081800.071.65
        2×0.102.60
        3×0.103.10
        1×0.1224/0.08
        7/0.15        		1650.071.70
        2×0.122.65
        3×0.123.15
        1×0.1530/0.08
        19/0.10        		1250.071.80
        2×0.152.80
        3×0.153.20
        1×0.2042/0.08
        27/0.10
        12/0.15
        19/0.12        		1000.072.05
        2×0.203.40
        3×0.203.55
        1×0.3062/0.08
        45/0.10
        18/0.15        		700.072.25
        2×0.303.70
        3×0.303.90
        1× 0.3575/0.08
        45/0.10
        19/0.16        		600.072.35
        2× 0.353.85
        3× 0.354.10
        1× 0.4085/0.08
        54/0.10
        24/0.15        		550.072.40
        2× 0.403.95
        3× 0.404.30
        1× 0.50105/0.08
        66/0.10
        29/0.15
        19/0.18        		420.072.60
        2× 0.504.40
        3× 0.504.70
