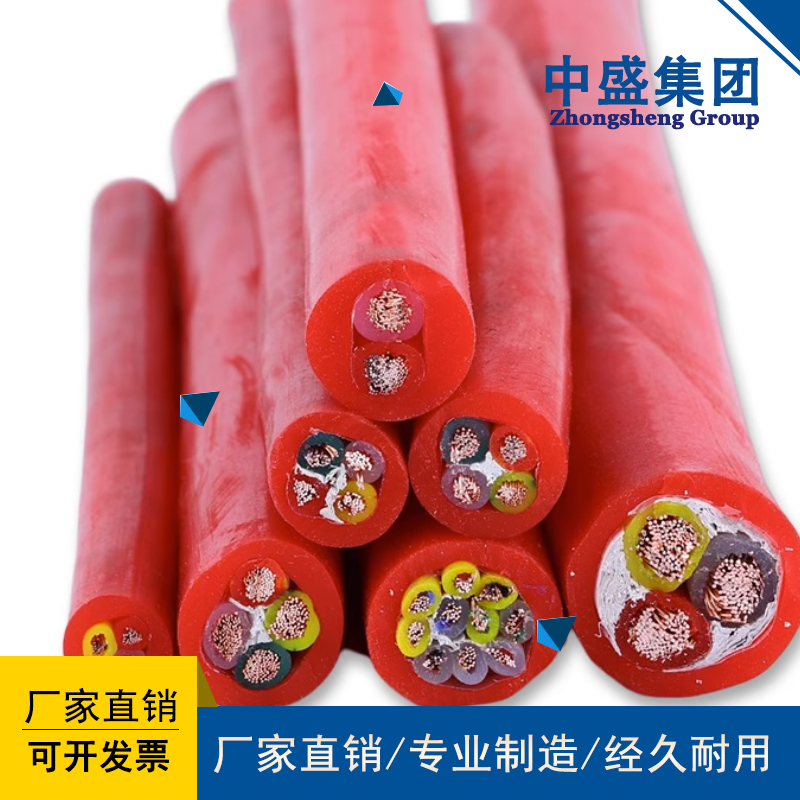

- 產品名稱：High temperature armored computer cableZR-IA-DJFGRP22
- 瀏覽：
- 添加時間：2024-07-19 16:53:53
- 推薦度：
產品型號：ZR-IA-DJFGRP22
Product model: ZR-IA-DJFGRP22
產品簡稱：高溫鎧裝計算機電纜
Product abbreviation: High temperature armored computer cable
導體材料：無氧銅絲
Conductor material: oxygen free copper wire
絕緣材料：F46絕緣
Insulation material: F46 insulation
材料：編織
Material: Weaving
護套材料：硅橡膠護套
Sheath material: Silicone rubber sheath
結 構：絞合型
Structure: Twisted type
加 強 件：/
Strengthening components:/
鎧裝材料：鋼帶鎧裝
Armor Material: Steel Strip Armor
芯線顏色：5芯以內顏色區分，5芯以上黑色線體白色數字編號
Core wire color: Color differentiation for wires with less than 5 cores, black wires with more than 5 cores, and white numbered wires
阻 燃 性：符合IEC 60332
Flame retardancy: Complies with IEC 60332
工作電壓：450/750V
Working voltage: 450/750V
出廠測試電壓：2000V-3000V
Factory test voltage: 2000V-3000V
z.ui小彎曲半徑：電纜外徑*8倍
z. UI small bending radius: cable outer diameter * 8 times
長期工作溫度應不高于+200℃
The long-term working temperature should not exceed+200 ℃
長期工作溫度應不低于-40℃
The long-term working temperature should not be lower than -40 ℃
可彎曲性、耐潮濕、耐寒、耐油、抗紫外線
Flexibility, moisture resistance, cold resistance, oil resistance, UV resistance
能承受中等的機械應力
Capable of withstanding moderate mechanical stress
具有較強的抗電磁干擾能力
Has strong resistance to electromagnetic interference
電纜外觀：圓整（扁電纜為扁平形）
Cable appearance: Round (flat cable is flat)
印字要求：電纜外護套表面印：廠名，型號，規格，電壓，米標
Printing requirements: The surface of the outer sheath of the cable should be printed with the factory name, model, specification, voltage, and meter mark
生產周期：4天發貨
Production cycle: 4 days for shipment
包裝要求：500米以內軟包裝，500米以上木軸包裝
Packaging requirements: Soft packaging within 500 meters, wooden shaft packaging above 500 meters
環保型號：WDZ-DJFGRP22
Environmentally friendly model: WDZ-DJFGRP22
耐火型號：NH-DJFGRP22
Fire resistant model: NH-DJFGRP22
阻燃型號：ZR-DJFGRP22
Flame retardant model: ZR-DJFGRP22
本安型號：IA-DJFGRP22
Intrinsic safety model: IA-DJFGRP22
