        • /upload/images/202407/17217253019801.jpg
        • 產品名稱:Variable frequency silicone rubber cable BPGGP
        • 瀏覽:
        • 添加時間:2024-07-23 16:53:50
        • 推薦度:
        •
        介紹:

        BPGGP變頻電纜

        BPGGP frequency conversion cable

        全稱:硅橡膠絕緣和護套銅絲編織屏蔽耐高溫變頻電力電纜。

        Full name: Silicone rubber insulated and sheathed copper wire braided shielding high temperature resistant variable frequency power cable.

        BPGGP變頻電纜產品特點及用途

        Characteristics and Applications of BPGGP Variable Frequency Cable Products

        本產品適用于交流額定電壓0.6/1KV及以下變頻控制系統作供電電纜或電氣連接,

        This product is suitable for use as a power cable or electrical connection in frequency conversion control systems with rated AC voltage of 0.6/1KV and below,

        產品具有較強的耐電壓沖擊性,能經受變頻時的脈沖電壓,電纜具有良好的屏蔽性,

        The product has strong resistance to voltage impact and can withstand pulse voltage during frequency conversion. The cable has good shielding properties,

        并有效消除電磁干擾,降低變頻電機噪音,保證系統穩定運行。廣泛用于冶金、

        And effectively eliminate electromagnetic interference, reduce the noise of variable frequency motors, and ensure stable operation of the system. Widely used in metallurgy

        電力、石化等行業。

        Industries such as electricity and petrochemicals.

        BPGGP變頻電纜產品執行標準

        BPGGP Variable Frequency Cable Product Execution Standard

        Q/HHTZH006

        Q/HHTZH006

        阻燃耐火特性試驗執行GB12666-90標準

        The flame retardant and fire-resistant characteristics test shall comply with GB12666-90 standard

        BPGGP變頻電纜使用特性

        Usage characteristics of BPGGP frequency conversion cable

        1.  交流額定電壓:U0/U 0.6/1KV

        1. Rated AC voltage: U0/U 0.6/1KV

        Z高工作溫度:硅橡膠絕緣180℃

        Z high working temperature: silicone rubber insulation 180 ℃

        氟46絕緣200℃和260℃兩種

        Fluorine 46 insulation at 200 ℃ and 260 ℃

        聚氯乙烯絕緣70℃

        Polyvinyl chloride insulation at 70 ℃

        交聯聚乙烯90℃

        Cross linked polyethylene at 90 ℃

        Z低環境溫度:敷設電纜時的環境溫度應不低于-40℃;聚氯乙烯護套電纜不低于0℃。

        Low ambient temperature: The ambient temperature during cable laying should not be lower than -40 ℃; PVC sheathed cables shall not be lower than 0 ℃.

        2.  電纜安裝敷設溫度應不低于-25℃。

        2. The temperature for cable installation and laying should not be lower than -25 ℃.

        3.  電纜允許彎曲半徑:電纜Z小為電纜外徑的10倍

        3. Allowable bending radius of cable: Cable Z is less than 10 times the outer diameter of the cable

        BPGGP變頻電纜備注:

        Notes on BPGGP frequency conversion cable:

        導體線芯中銅絲可以采用鍍錫,阻燃型電纜型號前加ZR,軟結構電纜加R。

        The copper wire in the conductor core can be tinned, ZR can be added to the front of flame-retardant cable models, and R can be added to flexible structure cables.

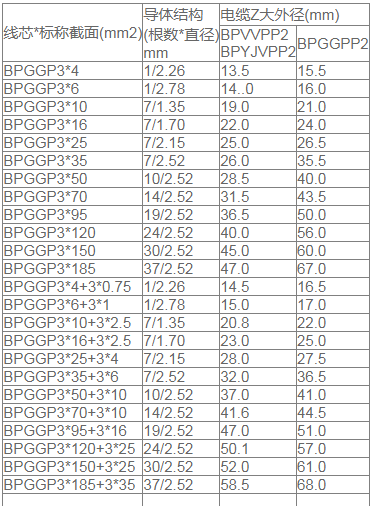

        BPGGP變頻電纜代號名稱和含義

        BPGGP variable frequency cable code name and meaning

        代號

        Code name

        代號含義

        Meaning of code

        BP

        BP

        變頻電力電纜

        Variable frequency power cable

        銅導體

        Copper conductor

        省略

        ellipsis

        G

        G

        硅橡膠絕緣或護套

        Silicone rubber insulation or sheath

        F

        F

        F46絕緣或護套

        F46 insulation or sheath

        V

        V

        聚氯乙烯絕緣或護套

        Polyvinyl chloride insulation or sheath

        YJ

        YJ

        交聯聚乙烯絕緣

        Cross linked polyethylene insulation

        VF

        VF

        丁晴護套

        Ding Qing protective sheath

        P(P1)

        P(P1)

        銅編織屏蔽(鍍錫編織屏蔽)

        Copper braided shielding (tin plated braided shielding)

        P2

        P2

        銅帶繞包屏蔽

        Copper tape wrapped shielding

        P3

        P3

        鋁聚酯復合膜繞包屏蔽

        Aluminum polyester composite film wrapped shielding

        PP2

        PP2

        銅絲編織銅帶繞包屏蔽

        Copper wire braided copper tape wrapped shielding
