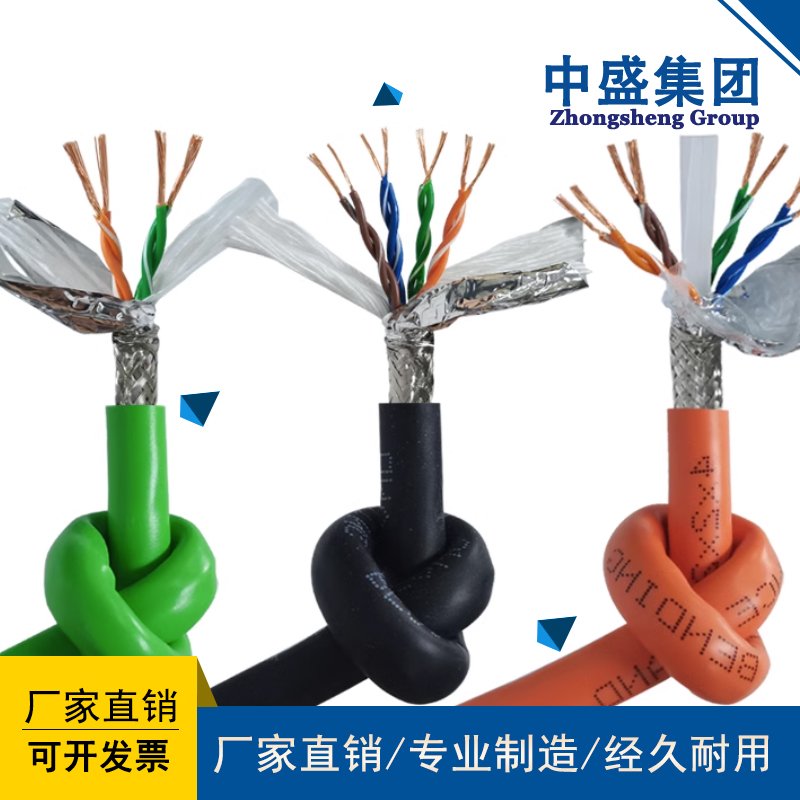

- 產品名稱：TRVVP high flexibility shielded drag chain cable
- 瀏覽：
- 添加時間：2024-07-26 11:14:14
- 推薦度：
TRVVP高柔性屏蔽拖鏈電纜產品工藝：
TRVVP high flexibility shielded drag chain cable product process:
導體：多股超細無氧裸銅絲精絞集束，符合VDE0295CLASS 6標準（可定制鍍錫銅絲導體）；
Conductor: Multi strand ultra-fine oxygen free bare copper wire precision twisted bundle, in compliance with VDE0295CLASS 6 standard (customizable tin plated copper wire conductor);
絕緣：特殊混合彈性體丁晴/汽車料/TPE/PE等材料絕緣
Insulation: Special mixed elastomer nitrile/automotive material/TPE/PE and other materials for insulation
芯線≥0.5mm2，黑色線體白色數字編碼，4芯及其以上帶有黃/綠接地保護線；
Core wire ≥ 0.5mm 2, black wire body with white numerical code, 4-core and above with yellow/green grounding protection wire;
芯線＜0.5mm2，彩色線芯區分；
Core wire<0.5mm 2, color wire core differentiation;
備注：特殊線芯顏色要求請?zhí)崆罢f(shuō)明；
Note: Please specify in advance the color requirements for special wire cores;
填充材質：PVC填充條、滌綸絲或芳綸絲等；
Filling material: PVC filling strip, polyester yarn or aramid yarn, etc;
芯線結構：短節距層絞，防扭結構分層；分組式間隙填充；
Core wire structure: short pitch layer twisted, anti twist structure layered; Group based gap filling;
內護套：改性低粘度強力擠壓內護套（可選）
Inner sheath: Modified low viscosity strong extrusion inner sheath (optional)
繞包材質：柔性無紡布、聚酯帶繞包材質；
Wrap material: flexible non-woven fabric, polyester tape wrap material;
屏蔽材質：鍍錫絲編織高密度鍍錫屏蔽網；
Shielding material: Tin plated wire woven high-density tin plated shielding mesh;
護套：特殊改性彈性體丁晴，黑色（RAL9005）/灰色（RAL7001）/橙色（RAL2003）
Sheath: Special modified elastomer Ding Qing, black (RAL9005)/gray (RAL7001)/orange (RAL2003)
TRVVP高柔性屏蔽拖鏈電纜產品電氣參數：
TRVVP high flexibility shielded drag chain cable product electrical parameters:
額定電壓：芯線＜0.5mm2，300/300V；
Rated voltage: Core wire ＜ 0.5mm 2, 300/300V;
芯線≥0.5mm2，300/500V；
Core wire ≥ 0.5mm 2, 300/500V;
小彎曲半徑：當電纜行程＜10米，電纜小彎曲半徑為7.5*D；
Small bending radius: When the cable travel is less than 10 meters, the small bending radius of the cable is 7.5 * D;
當電纜行程≥10米，電纜小彎曲半徑為10*D；
When the cable travel is ≥ 10 meters, the small bending radius of the cable is 10 * D;
電纜使用溫度范圍：-20~+80℃（移動安裝），-30~+80℃（固定安裝）；
Cable operating temperature range: -20~+80 ℃ (mobile installation), -30~+80 ℃ (fixed installation);
抗輻射強度：8*107cJ/kg；
Radiation resistance intensity: 8 * 107cJ/kg;
阻燃性：符合IEC60332-1-2+EN60332-1-2
Flame retardancy: Complies with IEC60332-1-2+EN60332-1-2
