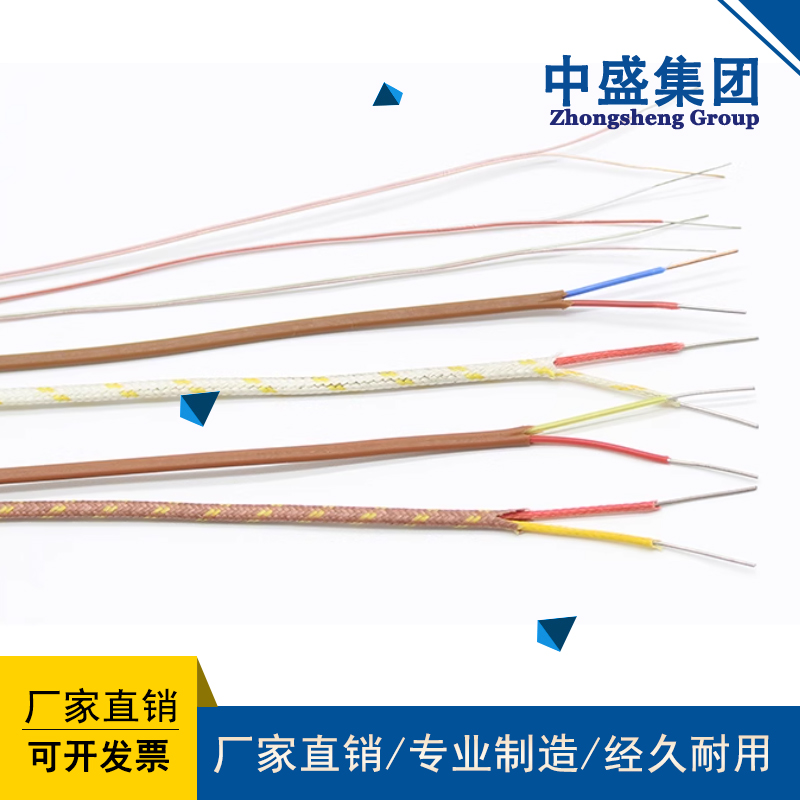

- 產品名稱：High temperature compensation wireZR-KX-HA-FFP
- 瀏覽：
- 添加時間：2024-07-26 15:27:49
- 推薦度：
一：產品特點及用途
1： Product Features and Applications
一般用聚氯乙烯絕緣和護套補償導線或電纜具有優良的防潮、耐磨及阻燃特性；耐高溫氟塑料絕緣和護套補償導線或電纜采用連續擠出工藝，更有耐高溫、耐寒、耐酸堿油水、不延燃、***等優越性
Generally, PVC insulated and sheathed compensating wires or cables have excellent moisture-proof, wear-resistant, and flame-retardant properties; High temperature resistant fluoroplastic insulation and sheath compensation wires or cables adopt continuous extrusion technology, which has advantages such as high temperature resistance, cold resistance, acid alkali oil-water resistance, non flame retardant
二：產品執行標準
2： Product execution standards
GB/T4989-94（等效采用IEC584-3標準）
GB/T4989-94 (equivalent to IEC584-3 standard)
三：使用特性
3： Usage characteristics
1． 導體工作溫度：耐熱級：聚全氟乙丙烯（F46）200℃
1. Conductor operating temperature: Heat resistance grade: Perfluoroethylene propylene (F46) 200 ℃
可溶性聚四氟乙烯260℃
Soluble polytetrafluoroethylene 260 ℃
硅橡膠180℃
Silicone rubber at 180 ℃
普通級：聚氯乙烯70℃和105℃，交聯聚乙烯90℃
Ordinary grade: polyvinyl chloride at 70 ℃ and 105 ℃, cross-linked polyethylene at 90 ℃
低煙無鹵阻燃聚烯烴70℃，交聯型90℃和125℃
Low smoke halogen-free flame-retardant polyolefin at 70 ℃, cross-linked at 90 ℃ and 125 ℃
2． 低環境溫度：聚氯乙烯護套：固定敷設-40℃，非固定敷設-15℃
2. Low ambient temperature: PVC sheath: fixed installation -40 ℃, non fixed installation -15 ℃
氟塑料絕緣和護套：固定敷設-60℃，非固定敷設-20℃
Fluoroplastic insulation and sheath: fixed installation -60 ℃, non fixed installation -20 ℃
3． 電纜允許彎曲半徑： 非鎧裝電纜最小為外徑的6倍
3. Allowable bending radius for cables: The minimum allowable bending radius for non armored cables is 6 times the outer diameter
銅帶屏蔽或鋼帶鎧裝點纜最小為電纜外徑的12倍
Copper tape shielded or steel tape armored point cables shall have a minimum diameter of 12 times the outer diameter of the cable
氟塑料絕緣和護套最小為電纜外徑的10倍
Fluoroplastic insulation and sheath with a minimum of 10 times the outer diameter of the cable
四：基本型號及名稱
4： Basic model and name
KX-GA-VV
KX-GA-VV
聚氯乙烯絕緣聚氯乙烯護套精密級K分度號熱電偶補償導線
PVC insulated PVC sheathed precision grade K division thermocouple compensation wire
KX-GA-VVR
KX-GA-VVR
聚氯乙烯絕緣聚氯乙烯護套精密級K分度號熱電偶補償軟導線
PVC insulated PVC sheathed precision grade K division thermocouple compensation flexible wire
KX-GA-VVP
KX-GA-VVP
聚氯乙烯絕緣聚氯乙烯護套銅絲編織屏蔽精密級K分度號熱電偶補償導線
PVC insulated PVC sheathed copper wire braided shielding precision grade K division thermocouple compensation wire
KX-GA-VVRP
KX-GA-VVRP
聚氯乙烯絕緣聚氯乙烯護套銅絲編織屏蔽精密級K分度號熱電偶補償軟導線
PVC insulated PVC sheathed copper wire braided shielding precision grade K division thermocouple compensation flexible wire
KX-HA-FF
KX-HA-FF
氟塑料絕緣和護套精密級K分度號熱電偶補償導線
Fluoroplastic insulation and sheath precision grade K division thermocouple compensation wire
KX-HA-FFR
KX-HA-FFR
氟塑料絕緣和護套精密級K分度號熱電偶補償軟導線
Fluoroplastic insulation and sheath precision grade K division thermocouple compensation flexible wire
KX-HA-FFP
KX-HA-FFP
氟塑料絕緣和護套銅絲編織屏蔽精密級K分度號熱電偶補償導線
Fluoroplastic insulated and sheathed copper wire braided shielding precision grade K division thermocouple compensation wire
KX-HA-FFRP
KX-HA-FFRP
氟塑料絕緣和護套銅絲編織屏蔽精密級K分度號熱電偶補償軟導線
Fluoroplastic insulated and sheathed copper wire braided shielding precision grade K division thermocouple compensation flexible wire
KX-HA-FG
KX-HA-FG
氟塑料絕緣硅橡膠護套精密級K分度號熱電偶補償導線
Fluoroplastic insulated silicone rubber sheathed precision grade K division thermocouple compensation wire
KX-HA-FGR
KX-HA-FGR
氟塑料絕緣硅橡膠護套精密級K分度號熱電偶補償軟導線
Fluoroplastic insulated silicone rubber sheath precision grade K division thermocouple compensation flexible wire
KX-HA-FGP
KX-HA-FGP
氟塑料絕緣硅橡膠護套銅絲編織屏蔽精密級K分度號熱電偶補償導線
Fluoroplastic insulation, silicone rubber sheath, copper wire braided shielding, precision grade K division thermocouple compensation wire
KX-HA-FGRP
KX-HA-FGRP
氟塑料絕緣硅橡膠護套銅絲編織屏蔽精密級K分度號熱電偶補償軟導線
Fluoroplastic insulation, silicone rubber sheath, copper wire braided shielding, precision grade K division thermocouple compensation flexible wire
KX-HA-FV
KX-HA-FV
氟塑料絕緣聚氯乙烯護套精密級K分度號熱電偶補償導線
Fluoroplastic insulated PVC sheathed precision grade K division thermocouple compensation wire
KX-HA-FVR
KX-HA-FVR
氟塑料絕緣聚氯乙烯護套精密級K分度號熱電偶補償軟導線
Fluoroplastic insulated PVC sheathed precision grade K division thermocouple compensation flexible wire
KX-HA-FVP
KX-HA-FVP
氟塑料絕緣聚氯乙烯護套銅絲編織屏蔽精密級K分度號熱電偶補償導線
Fluoroplastic insulated PVC sheathed copper wire braided shielding precision grade K division thermocouple compensation wire
KX-HA-FVRP
KX-HA-FVRP
氟塑料絕緣聚氯乙烯護套銅絲編織屏蔽精密級K分度號熱電偶補償軟導線
Fluoroplastic insulated PVC sheathed copper wire braided shielding precision grade K division thermocouple compensation flexible wire
KX-GA-YJV
KX-GA-YJV
交聯聚乙烯絕緣聚氯乙烯護套精密級K分度號熱電偶補償導線
Cross linked polyethylene insulated polyvinyl chloride sheathed precision grade K division thermocouple compensation wire
KX-GA-YJVR
KX-GA-YJVR
交聯聚乙烯絕緣聚氯乙烯護套精密級K分度號熱電偶補償軟導線
Cross linked polyethylene insulated polyvinyl chloride sheathed precision grade K division thermocouple compensation flexible wire
KX-GA-YJVP
KX-GA-YJVP
交聯聚乙烯絕緣聚氯乙烯護套銅絲編織屏蔽精密級K分度號熱電偶補償導線
Cross linked polyethylene insulation, polyvinyl chloride sheath, copper wire braided shielding, precision grade K division thermocouple compensation wire
KX-GA-YJVRP
KX-GA-YJVRP
低煙無鹵絕緣和護套銅絲編織屏蔽精密級K分度號熱電偶補償軟導線
Low smoke halogen-free insulated and sheathed copper wire braided shielding precision grade K division thermocouple compensation flexible wire
KX-GA-YDYD
KX-GA-YDYD
低煙無鹵絕緣和護套精密級K分度號熱電偶補償導線
Low smoke halogen-free insulation and sheath precision grade K division thermocouple compensation wire
KX-GA- YDYD R
KX-GA- YDYD R
低煙無鹵絕緣和護套精密級K分度號熱電偶補償軟導線
Low smoke halogen-free insulation and sheath precision grade K division thermocouple compensation flexible wire
KX-GA- YDYD P
KX-GA- YDYD P
低煙無鹵絕緣和護套銅絲編織屏蔽精密級K分度號熱電偶補償導線
Low smoke halogen-free insulated and sheathed copper wire braided shielding precision grade K division thermocouple compensation wire
KX-GA- YDYD RP
KX-GA- YDYD RP
低煙無鹵絕緣和護套銅絲編織屏蔽精密級K分度號熱電偶補償軟導線
Low smoke halogen-free insulated and sheathed copper wire braided shielding precision grade K division thermocouple compensation flexible wire
