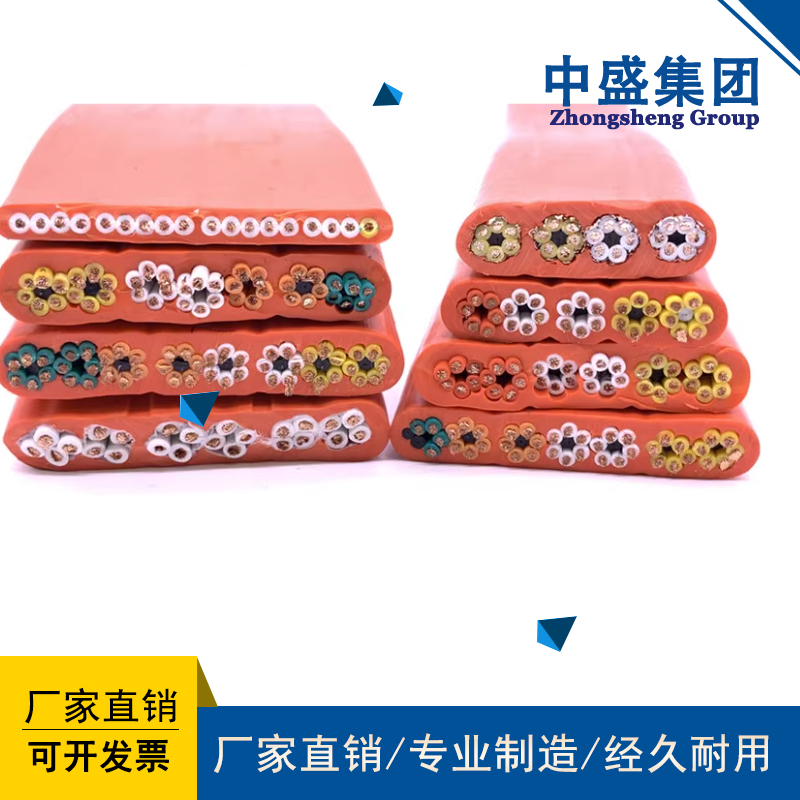

- 產品名稱：High voltage flat cable for stacker reclaimer drumYJGCFPB
- 瀏覽：
- 添加時間：2024-08-07 15:32:30
- 推薦度：
一、產品特點及用途
1、 Product Features and Applications
本產品適用于交流額定電壓6/10KV料場、碼頭的堆取料機及港機上變壓器連接用高壓扁平電纜，導體采用鍍錫軟芯結構，導體J緣采用硅橡膠J緣材料，電纜具有耐高溫、耐寒、耐油、耐腐蝕以及柔軟耐磨抗拉等特性，電纜可根據用戶需要設計編制加入多芯控制電纜及光纖通訊即制成高壓動力、多芯控制及光纖通訊組合扁平電纜。產品廣泛用于電力、冶金、石油化工、礦山、水泥、船舶工業、港口及移動設備制造等行業。
This product is suitable for high-voltage flat cables used for connecting stackers, reclaimers, and transformers on AC rated voltage 6/10KV material yards and docks. The conductor adopts a tin plated soft core structure, and the conductor J-edge is made of silicone rubber J-edge material. The cable has characteristics such as high temperature resistance, cold resistance, oil resistance, corrosion resistance, and soft wear resistance and tensile strength. The cable can be designed and compiled according to user needs by adding multi-core control cables and fiber optic communication to make high-voltage power, multi-core control, and fiber optic communication combination flat cables. The product is widely used in industries such as power, metallurgy, petrochemicals, mining, cement, shipbuilding, ports, and mobile equipment manufacturing.
注：機上固定敷設軟電纜參照D 頁章節阻燃耐熱丁腈電力軟電纜及D 頁D三章節阻燃耐熱丁腈控制軟電纜。
Note: For the fixed laying of flexible cables on the machine, refer to Chapter D for flame-retardant and heat-resistant nitrile power flexible cables and Chapter D for flame-retardant and heat-resistant nitrile control flexible cables.
二、產品執行標準
2、 Product execution standards
Q/AT2005-4標準
Q/AT2005-4 standard
阻燃性能試驗執行GB12666.5-90規定
The flame retardant performance test shall comply with the provisions of GB12666.5-90
三、基本電纜規格及結構參數
3、 Basic cable specifications and structural parameters
移動設備卷筒用6KV高壓扁平電纜
6KV High Voltage Flat Cable for Mobile Equipment Rollers
| 型號 | 電壓KV | 電纜規格mm2 | 電纜外型尺寸㎜ | 電纜彎曲半徑㎜ | 電纜參考重量kg/m |
| YJGCFPB | 6 | 3×16+3×16/3 | 67×27 | 540 | 3.0200 |
| YJGCFPB | 6 | 3×25+3×16/3 | 78×29 | 580 | 4.1700 |
| YJGCFPB | 6 | 3×35+3×16/3 | 80×31 | 620 | 4.6850 |
| YJGCFPB | 6 | 3×50+3×16/3 | 92×35 | 700 | 5.9860 |
| YJGCFPB | 6 | 3×70+3×16/3 | 95×37 | 740 | 6.7120 |
| YJGCFPB | 6 | 3×95+3×16/3 | 103×39 | 780 | 8.0120 |
| YJGCFPB | 6 | 4×16 | 85×27 | 540 | 3.8140 |
| YJGCFPB | 6 | 4×25 | 101×29 | 580 | 5.3210 |
| YJGCFPB | 6 | 4×35 | 105×31 | 620 | 5.9850 |
| YJGCFPB | 6 | 4×50 | 118×35 | 700 | 7.5380 |
| YJGCFPB | 6 | 4×70 | 127×37 | 740 | 8.9760 |
| YJGCFPB | 6 | 3×16+1×10 | 84×27 | 540 | 3.8570 |
| YJGCFPB | 6 | 3×25+1×10 | 89×29 | 580 | 4.9640 |
| YJGCFPB | 6 | 3×35+1×16 | 91×31 | 620 | 5.6810 |
| YJGCFPB | 6 | 3×50+1×25 | 113×35 | 700 | 7.2160 |
| YJGCFPB | 6 | 3×70+1×35 | 121×37 | 740 | 8.3180 |
| YJGCFPB | 6 | 3×95+1×35 | 127×39 | 780 | 9.5430 |

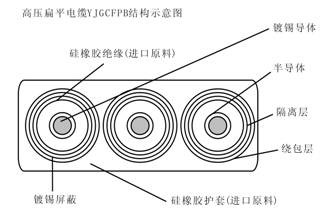

產品結構圖：
移動設備卷筒用加光纖通訊6KV高壓扁平電纜
| 型號 | 電壓KV | 電纜規格mm2 | 電纜外型尺寸㎜ | 電纜彎曲半徑㎜ | 電纜參考重量kg/m |
| YJGCFPB | 6 | 3×16+3×16/3+6FO | 81×27 | 540 | 3.1489 |
| YJGCFPB | 6 | 3×25+3×16/3+6FO | 86×29 | 580 | 4.8451 |
| YJGCFPB | 6 | 3×35+3×16/3+6FO | 92×31 | 620 | 4.9725 |
| YJGCFPB | 6 | 3×50+3×16/3+6FO | 106×35 | 700 | 6.3520 |
| YJGCFPB | 6 | 3×70+3×16/3+6FO | 114×37 | 740 | 7.4290 |
移動設備卷筒用10KV高壓扁平電纜
| 型號 | 電壓KV | 電纜規格mm2 | 電纜外型尺寸㎜ | 電纜彎曲半徑㎜ | 電纜參考重量kg/m |
| YJGCFPB | 10 | 3×16+3×16/3 | 69×28 | 560 | 3.0800 |
| YJGCFPB | 10 | 3×25+3×16/3 | 80×30 | 600 | 4.2100 |
| YJGCFPB | 10 | 3×35+3×16/3 | 82×32 | 640 | 4.7120 |
| YJGCFPB | 10 | 3×50+3×16/3 | 94×36 | 720 | 6.0200 |
| YJGCFPB | 10 | 3×70+3×16/3 | 98×38 | 760 | 6.8810 |
| YJGCFPB | 10 | 3×95+3×16/3 | 106×40 | 800 | 8.0740 |
| YJGCFPB | 10 | 4×16 | 87×28 | 560 | 3.9560 |
| YJGCFPB | 10 | 4×25 | 103×30 | 600 | 5.4380 |
| YJGCFPB | 10 | 4×35 | 108×32 | 640 | 6.0460 |
| YJGCFPB | 10 | 4×50 | 122×36 | 720 | 7.6360 |
| YJGCFPB | 10 | 4×70 | 130×38 | 760 | 9.1310 |
| YJGCFPB | 10 | 3×16+1×10 | 88×28 | 560 | 3.9010 |
| YJGCFPB | 10 | 3×25+1×10 | 93×30 | 600 | 5.0980 |
| YJGCFPB | 10 | 3×35+1×16 | 95×32 | 640 | 5.7640 |
| YJGCFPB | 10 | 3×50+1×25 | 117×36 | 720 | 7.3000 |
| YJGCFPB | 10 | 3×70+1×25 | 125×38 | 760 | 8.6340 |
| YJGCFPB | 10 | 3×95+1×35 | 131×40 | 800 | 9.6580 |
