- 產品名稱：Thermocouple compensation wireZR-KX-YP2VP2
- 瀏覽：
- 添加時間：2024-08-12 10:56:59
- 推薦度：
產品簡介
Product Introduction

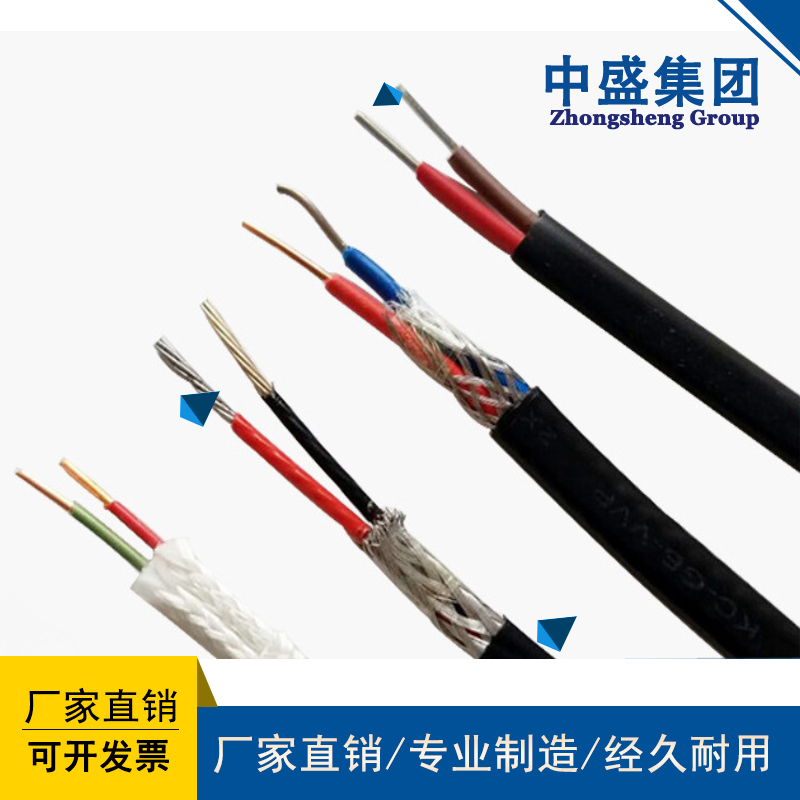

ZRC-KX-YP2VP2熱電偶補償導線廣泛用于石油、化工、冶金、電力等部門的自動化測溫儀表的單點或者多點連接。
ZRC-KX-YP2VP2 thermocouple compensation wire is widely used for single or multi-point connection of automated temperature measuring instruments in petroleum, chemical, metallurgical, power and other departments.
產品介紹
Product Introduction
ZRC-KX-YP2VP2熱電偶補償導線廣泛用于石油、化工、冶金、電力等部門的自動化測溫儀表的單點或者多點連接。
ZRC-KX-YP2VP2 thermocouple compensation wire is widely used for single or multi-point connection of automated temperature measuring instruments in petroleum, chemical, metallurgical, power and other departments.
使用特性：補償導線可以在-60～260℃環境下工作，是十分理想的自動化單元。已被廣泛用于石油、化工、冶金、電力等部門的自動化測溫儀表的單點或者多點連接。
Usage characteristics: The compensating wire can work in an environment of -60~260 ℃, making it an ideal automation unit. It has been widely used for single or multi-point connection of automated temperature measuring instruments in sectors such as petroleum, chemical, metallurgy, and power.
產品標準
Product standards
1、工作溫度：
1. Working temperature:
a）耐熱用：高200℃和260℃兩種。
a) Heat resistant: two types: high 200 ℃ and 260 ℃.
b）一般用：高70℃和105℃兩種。
b) Generally used: high 70 ℃ and 105 ℃.
2、低環境溫度
2. Low ambient temperature
a）氟塑料絕緣和護套線纜：固定敷設- 60℃，非固定敷設-20℃。
a) Fluoroplastic insulated and sheathed cables: fixed installation -60 ℃, non fixed installation -20 ℃.
b）聚氯乙烯絕緣和護套線纜：固定敷 設-40℃，非固定敷設-15℃。
b) Polyvinyl chloride insulated and sheathed cables: fixed installation at -40 ℃, non fixed installation at -15 ℃.
3、允許彎曲半徑：
3. Allowable bending radius:
a）有銅帶屏蔽的補償電纜，應不小于電纜外徑的16倍；
a) Compensation cables with copper tape shielding should not be less than 16 times the outer diameter of the cable;
b）其它結構的補償電纜，應不小于電纜外徑的10倍。
b) Compensation cables of other structures should not be less than 10 times the outer diameter of the cable.

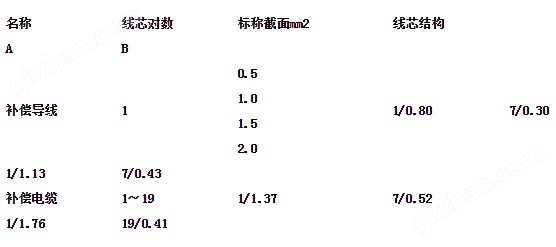

ZRC-KX-YP2VP2熱電偶補償導線規格范圍ZRC-KX-YP2VP2 thermocouple compensation wire specification range
