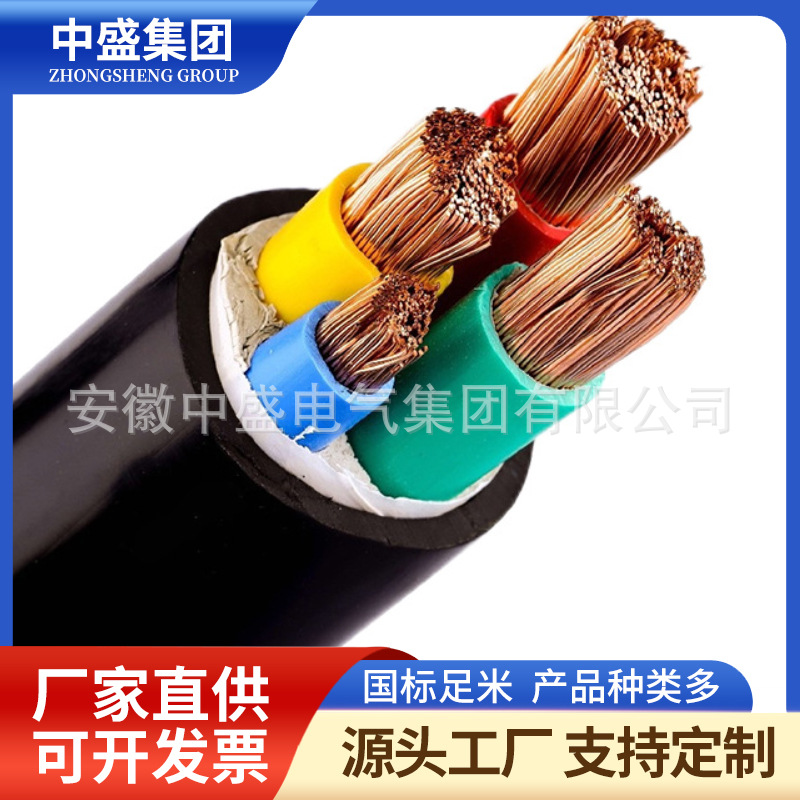

- 產品名稱：BPYJVPX13R Variable Frequency Cable
- 瀏覽：
- 添加時間：2025-03-27 16:15:17
- 推薦度：
BPYJVPX13R變頻電纜工作條件：
Working conditions of BPYJVPX13R variable frequency cable:
1、 額定電壓U0/U： 0.6/1kV。
1. Rated voltage U0/U: 0.6/1kV.
2、 電纜導體長期允許zui高溫度為90℃，短路時zui高溫度為250℃ （zui長持續時間為5秒） 。
2. The maximum allowable temperature for cable conductors in the long term is 90 ℃, and the maximum allowable temperature during short circuits is 250 ℃ (with a maximum duration of 5 seconds).
3、 安裝敷設環境溫度不低于0℃，固定敷設時環境溫度不低于-10℃。
3. The installation and laying environment temperature shall not be lower than 0 ℃, and the fixed laying environment temperature shall not be lower than -10 ℃.
4、 電纜允許zui小彎曲半徑不小于15D（D-電纜外徑mm） 。
4. The maximum allowable bending radius for cables is not less than 15D (D-cable outer diameter mm).
BPYJVPX13R變頻電纜主要性能：
Main performance of BPYJVPX13R frequency conversion cable:
1、BPYJVPX13R型設計采用符合GB/T3956-1997規定的第5類軟絞合銅導體。
1. The BPYJVPX13R design adopts Class 5 soft stranded copper conductors that comply with GB/T3956-1997 regulations.
2、 交聯聚乙烯絕緣，耐溫耐候性好。
2. Cross linked polyethylene insulation has good temperature and weather resistance.
3、 低傳輸阻抗，電磁兼容性好。
3. Low transmission impedance, good electromagnetic compatibility.
4、 低工作電容。
4. Low working capacitance.
5、 良好的抗干擾和低輻射性能。
5. Good anti-interference and low radiation performance.
6、 對稱的三芯電纜結構設計，具有比四芯電纜更好的傳輸性能。
6. The symmetrical three core cable structure design has better transmission performance than four core cables.
BPYJVPX13R變頻電纜詳細參數：
BPYJVPX13R variable frequency cable detailed parameters:
標準：企業標準
Standard: Enterprise Standard
電壓等級：（0.6/1kV）
Voltage level: （0.6/1kV）
導體材料：主線芯導體（5類導體）、副線芯導體（5類導體）
Conductor materials: main core conductor (Class 5 conductor), secondary core conductor (Class 5 conductor)
絕緣材料：交聯聚乙烯（XLPE）
Insulation material: Cross linked polyethylene (XLPE)
屏蔽材料：鋁帶繞包+鍍錫銅絲編織屏蔽鎧裝材料：無
Shielding material: aluminum tape wrapped+tinned copper wire braided shielding armor material: none
護套材料：聚氯乙烯（PVC）電壓試驗：電壓應依次施加在每*緣導體對其余導體和繞包金屬層之間施加試驗電壓3500V/5min， 絕緣應無擊穿。 試驗應在環境溫度下進行。
Sheath material: Polyvinyl chloride (PVC) Voltage test: The voltage should be applied sequentially between each edge conductor and the remaining conductors and the wrapped metal layer. The test voltage should be 3500V/5 minutes, and the insulation should have no breakdown. The experiment should be conducted at ambient temperature.
規格：
Specifications:
3×2.5+3×0.5
3×2.5+3×0.5
3×50+3×10
3×50+3×10
3×4+3×0.75
3×4+3×0.75
3×70+3×10
3×70+3×10
3×6+3×1.0
3×6+3×1.0
3×95+3×16
3×95+3×16
3×10+3×1.5
3×10+3×1.5
3×120+3×16
3×120+3×16
3×16+3×2.5
3×16+3×2.5
3×150+3×25
3×150+3×25
3×25+3×4
3×25+3×4
3×185+3×25
3×185+3×25
3×35+3×6
3×35+3×6
3×240+3×35
3×240+3×35
