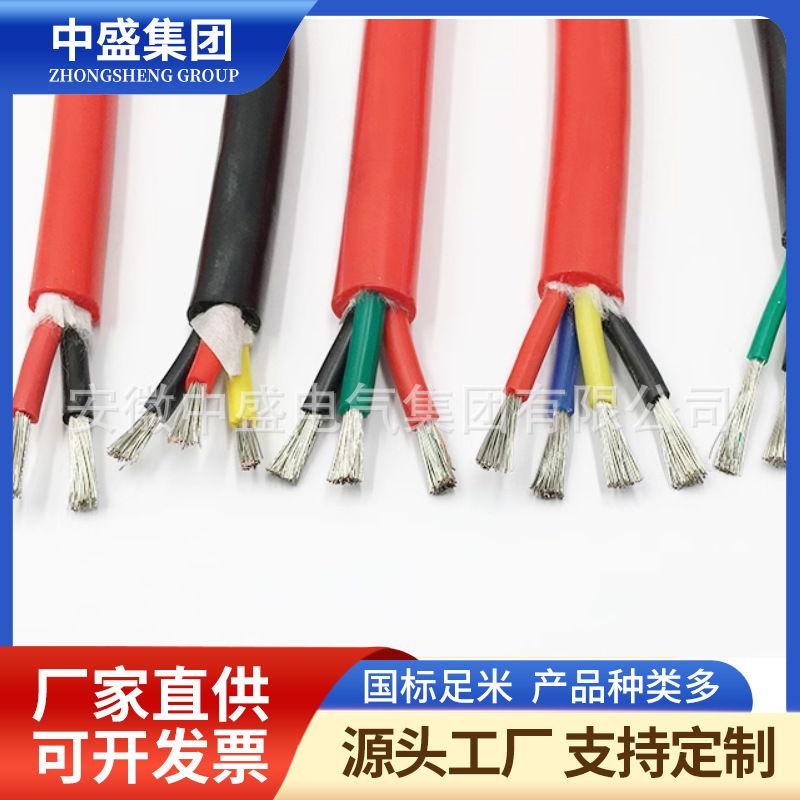

- 產品名稱：YGC silicone rubber cable
- 瀏覽：
- 添加時間：2025-04-01 15:02:15
- 推薦度：
一：產品特點及用途
1： Product Features and Applications
本產品適用于流額定電壓450/750V及以下移動或固定敷設用電器儀表連接線或信號傳輸，
This product is suitable for connecting wires or signal transmission of mobile or fixed electrical instruments with rated voltage of 450/750V and below,
電纜具有較好的熱穩定，能在高溫、低溫、腐蝕中保持良好的電能和柔軟性，適合
Cables have good thermal stability, can maintain good electrical energy and flexibility in high temperature, low temperature, and corrosion, and are suitable for
冶金、電力、石化等行業具有移動耐溫等特殊要求場合使用。
Used in industries such as metallurgy, power, and petrochemicals with special requirements for mobile temperature resistance.
二：產品執行標準
2： Product execution standards
Q/HHTZH004.2 YGC硅橡膠電纜
Q/HHTZH004.2 YGC Silicone Rubber Cable
阻燃耐火特試驗執行GB12666-90標準
Flame retardant and fire-resistant special test shall comply with GB12666-90 standard
三：使用特點
3： Usage characteristics
1． 流額定電壓：U0/U 450/750KV
1. Current rated voltage: U0/U 450/750KV
zui高工作溫度：180℃YGC-3*2.5,YGC-3*1.5,YGC-2*2.5,硅橡膠電纜
Zui high working temperature: 180 ℃ YGC-3 * 2.5, YGC-3*1.5,YGC-2*2.5, Silicone rubber cable
2． zui低環境溫度：硅橡膠護套：固定敷設-60℃，非固定敷設-20℃
2. Low ambient temperature: Silicone rubber sheath: fixed installation -60 ℃, non fixed installation -20 ℃
3． 電纜安裝敷設溫度應不低于-20℃。
3. The temperature for cable installation and laying should not be lower than -20 ℃.
4． 電纜允許彎曲半徑：非鎧裝電纜zui小為電纜外徑的6倍
4. Allowable bending radius for cables: The minimum allowable bending radius for non armored cables is 6 times the outer diameter of the cable
四：基本型號及名稱
4： Basic model and name
KGG
KGG
硅橡絕緣和護套控制電纜
Silicone rubber insulated and sheathed control cable
KGGR
KGGR
硅橡絕緣和護套控制軟電纜
Silicone rubber insulated and sheathed control flexible cable
KGGP
KGGP
硅橡絕緣和護套銅絲編織屏蔽控制電纜
Silicone rubber insulated and sheathed copper wire braided shielded control cable
KGGRP
KGGRP
硅橡絕緣和護套銅絲編織屏蔽控制軟電纜
Silicone rubber insulated and sheathed copper wire braided shielded control flexible cable
KGGRP1
KGGRP1
硅橡絕緣和護套鍍錫編織屏蔽控制軟電纜
Silicone rubber insulated and sheathed tin plated braided shielded control flexible cable
KFG
KFG
氟塑料絕緣和硅橡膠護套控制電纜
Fluoroplastic insulated and silicone rubber sheathed control cable
備注：1 如需阻燃型硅橡膠電纜，型號前加ZR；
Note: If a flame-retardant silicone rubber cable is required, add ZR before the model number;
YGC 硅橡膠絕緣及護套移動用電力電纜
YGC silicone rubber insulated and sheathed mobile power cable
