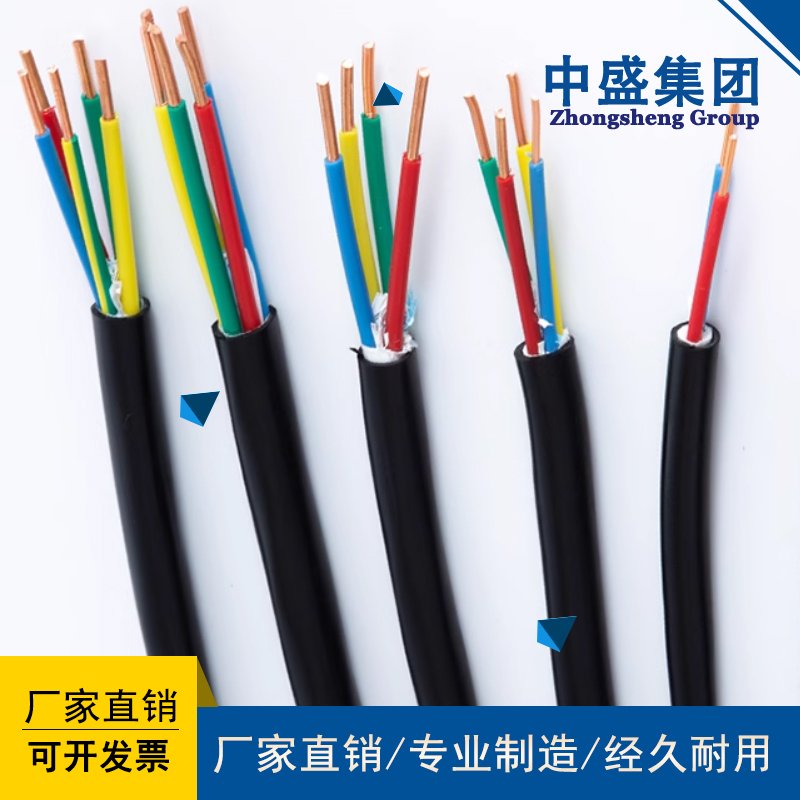

- 產品名稱：KJCPR digital patrol detection device shielded cable
- 瀏覽：
- 添加時間：2025-04-21 15:40:43
- 推薦度：
該產品具有防干擾性能高、電氣性能穩定，能可靠地傳送微弱的模擬信號和數字信號等特點。KJCP,KJCPR阻燃雙屏蔽電纜具有防干攏性能高、電氣性能穩定，能可靠地傳送微弱的模擬信號和數字信號等特點因此該電纜廣泛地應用于電站、冶金、礦山和石油化工等部門的檢測和控制用計算機系統或自動化控制裝置以及一般工業計算機裝置上。
This product has high anti-interference performance, stable electrical performance, and can reliably transmit weak analog and digital signals. KJCP and KJCPR flame-retardant double shielded cables have high anti drying performance, stable electrical performance, and the ability to reliably transmit weak analog and digital signals. Therefore, this cable is widely used in computer systems or automation control devices for detection and control in power plants, metallurgy, mining, petrochemicals, and other departments, as well as general industrial computer devices.
KJCP 銅芯聚乙烯絕緣聚氯乙烯護套鋁箔銅絲屏蔽控制電纜 應用于環境溫度0-40℃、要求防干擾及柔軟的場合。

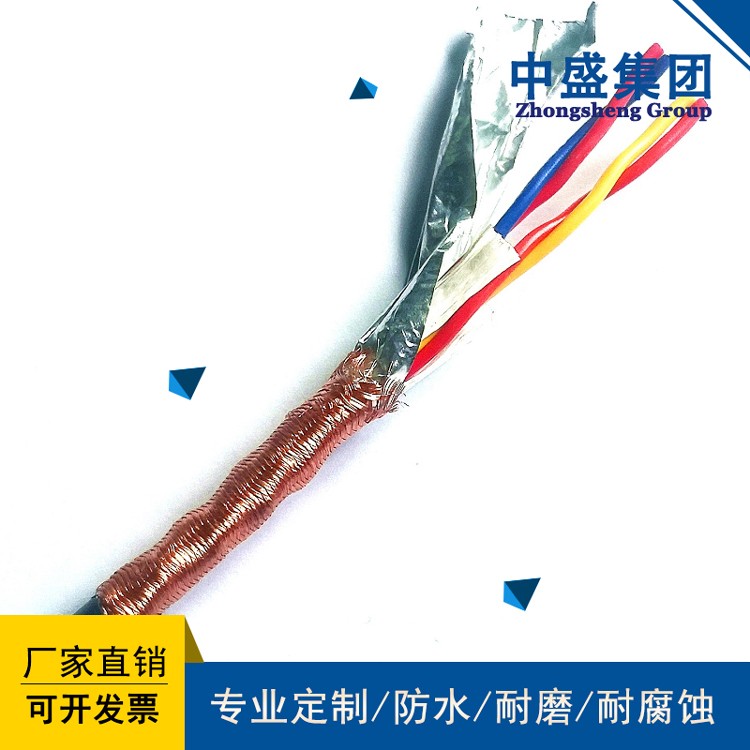

KJCP copper core polyethylene insulated polyvinyl chloride sheathed aluminum foil copper wire shielded control cable is applied in environments with temperatures ranging from 0-40 ℃, requiring anti-interference and flexibility.
KJCPR 銅芯聚乙烯絕緣聚氯乙烯護套鋁箔銅絲屏蔽軟控制電纜 。
KJCPR copper core polyethylene insulated polyvinyl chloride sheathed aluminum foil copper wire shielded soft control cable.
KJCP/KJCPR電纜的規格：
Specifications of KJCP/KJCPR cables:
型號 額定電壓（V） 對數 標稱截面（mm2）
Model Rated voltage (V) Logarithmic nominal cross-section (mm2)
KJCP
KJCP
KJCPR 300/300 2-24 0.5,0.75,1.0,1.5
KJCPR 300/300 2-24 0.5,0.75,1.0,1.5
KJCP,KJCPR使用特性：
KJCP, KJCPR usage characteristics:
1、額定電壓為300/300V。
1. The rated voltage is 300/300V.
2、電纜敷設時環境溫度不低于0℃。
2. The ambient temperature during cable laying shall not be lower than 0 ℃.
3、電纜導體的長期允許工作溫度不超過70℃。
3. The long-term allowable working temperature of cable conductors shall not exceed 70 ℃.
KJCPR主要技術參數：
Main technical parameters of KJCPR:
4.1、電纜的絕緣電阻在環境溫度為20℃時應不小于1000MΩ·km。
4.1 The insulation resistance of the cable should not be less than 1000M Ω· km at an ambient temperature of 20 ℃.
4.2、成品電纜線芯與屏蔽及線芯間能經受交流50HZ、2000V電壓試驗5min。
4.2. The finished cable core, shield, and core can withstand AC 50HZ and 2000V voltage test for 5 minutes.
