- 產品名稱：KGGP, KGGRP silicone rubber cable
- 瀏覽：
- 添加時間：2025-04-22 10:01:11
- 推薦度：
產品特點及用途：本產品適用于交流額定電壓450/750V及以下移動或固定敷設用電器儀表連接線或信號傳輸，電纜具有較好的熱穩定性，能在高溫、低溫、腐蝕性中保持良好的電性能和柔軟性，適合冶金、電力、石化等行業具有移動耐溫等特殊要求場合使用。
Product features and uses: This product is suitable for mobile or fixed electrical instrument connection lines or signal transmission with AC rated voltage of 450/750V and below. The cable has good thermal stability and can maintain good electrical performance and flexibility in high temperature, low temperature, and corrosive environments. It is suitable for use in industries such as metallurgy, power, and petrochemicals with special requirements for mobile temperature resistance.
產品執行標準 Q/HHTZH004.2
Product execution standard Q/HHTZH004.2
阻燃耐火特性試驗執行GB12666-90標準
The flame retardant and fire-resistant characteristics test shall comply with GB12666-90 standard
1．交流額定電壓：U0/U 450/750KV，最高工作溫度：180℃
1. Rated AC voltage: U0/U 450/750KV， Maximum operating temperature: 180 ℃
2．最低環境溫度：硅橡膠護套：固定敷設-60℃，非固定敷設-20℃
2. Minimum ambient temperature: Silicone rubber sheath: fixed installation -60 ℃, non fixed installation -20 ℃
3．KGG電纜安裝敷設溫度應不低于-20℃。
The installation and laying temperature of KGG cables should not be lower than -20 ℃.
4．電纜允許彎曲半徑：非鎧裝電纜最小為電纜外徑的6倍
4. Allowable bending radius for cables: The minimum allowable bending radius for non armored cables is 6 times the outer diameter of the cable
KGG 硅橡膠絕緣和護套控制電纜
KGG silicone rubber insulated and sheathed control cable
KGGR硅橡膠絕緣和護套控制軟電纜
KGGR silicone rubber insulated and sheathed control flexible cable

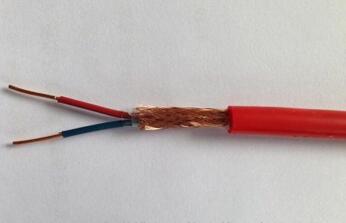

KGGP硅橡膠絕緣和護套銅絲編織屏蔽控制電纜
KGGP silicone rubber insulated and sheathed copper wire braided shielded control cable
KGGRP硅橡膠絕緣和護套銅絲編織屏蔽控制軟電纜
KGGRP silicone rubber insulated and sheathed copper wire braided shielding control flexible cable
KGGRP1硅橡膠絕緣和護套鍍錫編織屏蔽控制軟電纜
KGGRP1 silicone rubber insulated and sheathed tin plated braided shielded control flexible cable
