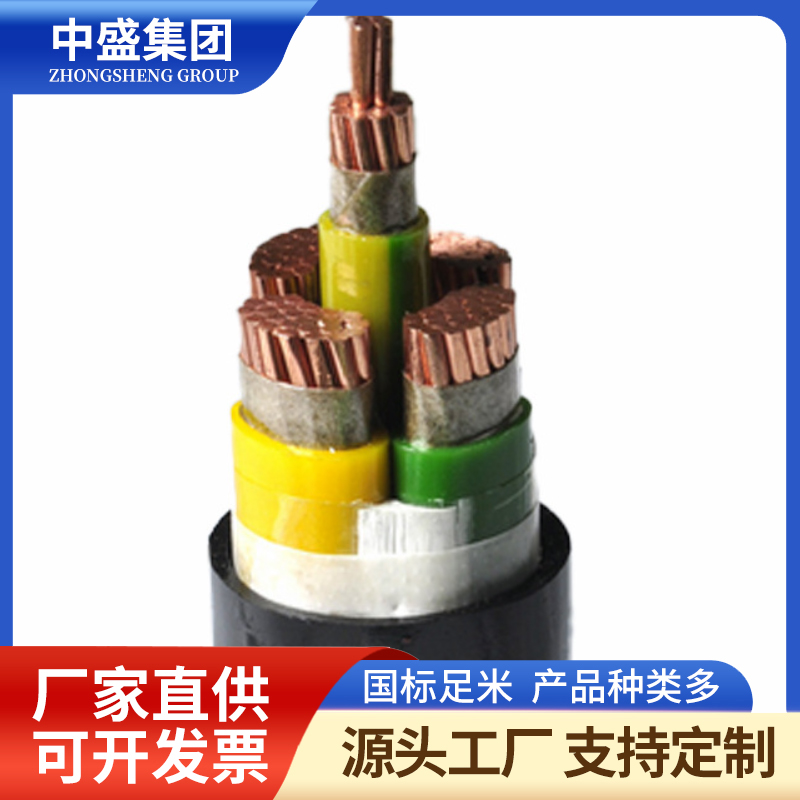

- 產品名稱：Flame retardant variable frequency cable ZR-BPYJVP2
- 瀏覽：
- 添加時間：2025-05-07 09:40:07
- 推薦度：
產品用途
application
變頻電纜主要用于變頻電源和變頻電機之間連接用的電纜,以及額定電壓1KV及以下的輸配電線路中,作輸送電能用.尤其適用于造紙、冶金、金屬加工、礦山、鐵路和食品加工等行業。
Variable frequency cables are mainly used for connecting cables between variable frequency power supplies and variable frequency motors, as well as for transmitting electrical energy in transmission and distribution lines with a rated voltage of 1KV or below Especially suitable for industries such as papermaking, metallurgy, metal processing, mining, railways, and food processing.
使用條件
Conditions of Use
1、 額定電壓U0/U：0.6/1KV.
1. Rated voltage U0/U: 0.6/1KV
2、 電纜導體長期允許最高溫度為90度,短路時
2. The maximum allowable temperature for cable conductors in the long term is 90 degrees Celsius. In the event of a short circuit
IJYVP1R、IJYVRP1、IJYP1VP1R、IJYP1VRP1、IJYP1V22、IJYP1VP1/22、IJYP1VR22、IJYVRP1/22、IJYVP1/22、IJYVP1R22、IJVP1VR、IJVP1VP1、IJVVP1、IJVVP1R、IJVVRP1、IJVP1VP1R、IJVP1VRP1、IJVP1V22、IJVP1VP1/22、IJVP1VR22、IJVVRP1/22、IJYVP1/22、IJYVP1R22、DJFEPPV-1、DJFEPP2V-1、DJFEPRPV-1、DJFEPPVR-1、DJFEPP2VR-1、DJFEPPV、DJFEPP2V、DJFEPP3V、DJFEPPVR、DJFEPPVP、DJFEPPVRP、DJFEPP2VP2、DJFEPPF、DJFEPPFR、DJFEPP2F、DJFEPPV-2、DJFEPPV-3、DJFEPPLV、DJFEPPLVR、ZR-DJFEPPV-1、ZR-DJFEPP2V-1、ZR-DJFEPRPV-1、ZR-DJFEPPVR-1、ZR-DJFEPP2VR-1、ZR-DJFEPPV、ZR-DJFEPP2V、ZR-DJFEPP3V、ZR-DJFEPPVR、ZR-DJFEPPVP、ZR-DJFEPPVRP、ZR-DJFEPP2VP2、ZR-DJFEPPF、ZR-DJFEPPFR、ZR-DJFEPP2F、ZR-DJFEPPV-2、ZR-DJFEPPV-3、ZR-DJFEPPLV、ZR-DJFEPPLVR、JFEPPV-1、JFEPP2V-1、JFEPRPV-1、JFEPPVR-1、JFEPP2VR-1、JFEPPV、JFEPP2V、JFEPP3V、JFEPPVR、JFEPPVP、JFEPPVRP、JFEPP2VP2、JFEPPF、JFEPPFR、JFEPP2F、JFEPPV-2、JFEPPV-3、JFEPPLV、JFEPPLVR、ZR-JFEPPV-1、ZR-JFEPP2V-1、ZR-JFEPRPV-1、ZR-JFEPPVR-1、ZR-JFEPP2VR-1、ZR-JFEPPV、ZR-JFEPP2V、ZR-JFEPP3V、ZR-JFEPPVR、ZR-JFEPPVP、ZR-JFEPPVRP、ZR-JFEPP2VP2、ZR-JFEPPF、ZR-JFEPPFR、ZR-JFEPP2F、ZR-JFEPPV-2、ZR-JFEPPV-3、ZR-JFEPPLV、ZR-JFEPPLVR、ZA-JYPVR、ZA-JYPVP、ZA-JYVP、ZA-JYVPR、ZA-JYVRP、ZA-JYPVPR、ZA-JYPVRP、ZA-JYPV22、ZA-JYPVP22、ZA-JYPVR22、ZA-JYVRP22、ZA-JYVP22、ZA-JYVPR22、ZA-JVPVR、ZA-JVPVP、ZA-JVVP、ZA-JVVPR、ZA-JVVRP、ZA-JVPVPR、ZA-JVPVRP、ZA-JVPV22、ZA-JVPVP22、ZA-JVPVR22、ZA-JVVRP22、ZA-JYVP22、ZA-JYVPR22、ZA-JYP2VR、ZA-JYP2VP2、ZA-JYVP2、ZA-JYVP2R、ZA-JYVRP2、ZA-JYP2VP2R、ZA-JYP2VRP2、ZA-JYP2V22、ZA-JYP2VP2/22、ZA-JYP2VR22、ZA-JYVRP2/22、ZA-JYVP2/22、ZA-JYVP2R22、ZA-JV2PVR、ZA-JVP2VP2、ZA-JVVP2、ZA-JVVP2R、ZA-JVVRP2、ZA-JVP2VP2R、ZA-JVP2VRP2、ZA-JVP2V22、ZA-JVP2VP2/22、ZA-JVP2VR22、ZA-JVVRP2/22、ZA-JYVP2/22、ZA-JYVP2R22、ZA-JYP3VR、ZA-JYP3VP3、ZA-JYVP3、ZA-JYVP3R、ZA-JYVRP3、ZA-JYP3VP3R、ZA-JYP3VRP3、ZA-JYP3V22、ZA-JYP3VP3/22、ZA-JYP3VR22、ZA-JYVRP3/22、ZA-JYVP3/22、ZA-JYVP3/R22、ZA-JVP3VR、ZA-JVP3VP3、ZA-JVVP3、ZA-JVVP3R、ZA-JVVRP3、ZA-JVP3VP3R、ZA-JVP3VRP3、ZA-JVP3V22、ZA-JVP3VP3/22、ZA-JVP3VR22、ZA-JVVRP3/22、ZA-JYVP3/22、ZA-JYVP3R22、ZA-JYPLVR、ZA-JYPLVPL、ZA-JYVPL、ZA-JYVPLR、ZA-JYVRPL、ZA-JYPLVPLR、ZA-JYPLVRPL、ZA-JYPLV22、ZA-JYPLVPL22、ZA-JYPLVR22、ZA-JYVRPL22、ZA-JYVPL22、ZA-JYVPLR22、ZA-JVPLVR、ZA-JVPLVPL、ZA-JVVPL、ZA-JVVPLR、ZA-JVVRPL、ZA-JVPLVPLR、ZA-JVPLVRPL、ZA-JVPLV22、ZA-JVPLVPL22、ZA-JVPLVR22、ZA-JVVRPL22
集散型信號電纜-信號屏蔽電纜的詳細介紹
Detailed introduction of distributed signal cable - signal shielded cable
集散型信號電纜（信號屏蔽電纜）
Distributed signal cable (signal shielded cable)
集散型儀表信號電纜（DCS電纜）
Distributed Instrument Signal Cable (DCS Cable)
本產品用于以計算機為主的自動化控制系統，尤其適用于計算機集散控制系統、傳遞生產裝置過程變量的檢測、控制、聯鎖、報警等模擬和數字信號。IJYVP1
This product is used for automation control systems mainly based on computers, especially suitable for computer distributed control systems, detection, control, interlocking, alarm and other analog and digital signals for transmitting process variables of production equipment. IJYVP1
最高溫度250度
The highest temperature is 250 degrees Celsius
3、 安裝敷設環境溫度不低于0度,固定敷設時環境溫度不低于-10度.
3. The installation and laying environment temperature shall not be lower than 0 degrees, and the fixed laying environment temperature shall not be lower than -10 degrees
4、 電纜允許最小彎曲半徑不小于15D（D-電纜外徑,mm）
4. The minimum allowable bending radius for cables is not less than 15D (D - cable outer diameter, mm）
產品性能
Product Performance
1、 BRYJVP12R-TK、ZRBPYJVP12R-TK型設計采用符合GB/T3956-1997規定的第5類軟絞合銅導體。
1 The BRYJVP12R-TK and ZRBPYJVP12R-TK designs use Class 5 soft stranded copper conductors that comply with GB/T3956-1997 regulations.
2、 交聯聚乙烯絕緣、耐溫耐候性好。
2. Cross linked polyethylene insulation has good temperature and weather resistance.
3、 低傳輸阻抗，電磁兼容性好。
3. Low transmission impedance, good electromagnetic compatibility.
4、 低工作電容
4. Low working capacitance
5、 良好的抗干擾和低輻射性能。
5. Good anti-interference and low radiation performance.
6、 對稱的三芯電纜結構設計，具有比四芯電纜更好的傳輸性能。
6. The symmetrical three core cable structure design has better transmission performance than four core cables.
型號名稱
Model name
BPYJVTP2-TK 銅芯交聯聚乙烯絕緣聚氯乙烯護套銅絲纏繞銅帶繞包屏蔽變頻器用回路電纜。
BPYJVTP2-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper wire wrapped copper tape wrapped shielded frequency converter circuit cable.
ZRBPYJVTP2-TK銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套銅絲纏繞銅帶繞包屏蔽變頻器用回路電纜。
ZRBPYJVTP2-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper wire wrapped copper tape wrapped shielded frequency converter circuit cable.
BPYJVP12-TK銅芯交聯聚乙烯絕緣聚氯乙烯護套銅帶繞包銅絲編織雙重屏蔽變頻器用回路電纜。
BPYJVP12-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped copper wire braided double shielded frequency converter circuit cable.
ZRBPYJVP12-TK銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套銅帶繞包銅絲編織雙重屏蔽變頻器用回路電纜。
ZRBPYJVP12-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper tape wrapped copper wire braided double shielded frequency converter circuit cable.
BPYJVPX12R-TK銅芯交聯聚乙烯絕緣聚氯乙烯護套銅帶繞包鍍錫銅絲編織雙重屏蔽變頻器用回路電纜。
BPYJVPX12R-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped tin plated copper wire braided double shielded frequency converter circuit cable.
ZRBPYJVPX12R-TK銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套銅帶繞包鍍錫銅絲編織雙重屏蔽變頻器用回路電纜。
ZRBPYJVPX12R-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper tape wrapped tin plated copper wire braided double shielded frequency converter circuit cable.
規格范圍
Specification range
型號 芯數 標稱截面（MM）
Model, number of cores, nominal cross-section (mm)
BPYJVTP2-TK 3 1.5~240
BPYJVTP2-TK 3 1.5~240
ZRBPYJVTP2-TK 3 1.5~240
ZRBPYJVTP2-TK 3 1.5~240
BPYJVP12R-TK 3+3 主線芯截面:2.5-240,副線芯截面:0.5-35
BPYJVP12R-TK 3+3 main core section: 2.5-240, secondary core section: 0.5-35
BPYJVPX12R-TK 3+3 主線芯截面:2.5-240,副線芯截面:0.5-35
BPYJVPX12R-TK 3+3 main core section: 2.5-240, secondary core section: 0.5-35
ZRBPYJVP12R-TK 3+3 主線芯截面:2.5-240,副線芯截面:0.5-35
ZRBPYJVP12R-TK 3+3 main core section: 2.5-240, secondary core section: 0.5-35
ZRBPYJVPX12-TK 3+3 主線芯截面:2.5-240,副線芯截面:0.5-35
ZRBPYJVPX12-TK 3+3 main core section: 2.5-240, secondary core section: 0.5-35
注:另可根據用戶需要提供鎧裝結構變頻電纜.
Note: Armored structure frequency conversion cables can also be provided according to user needs
型號說明
Model Description
項目 代號 說明
Project code description
系列代號 BP 變頻電纜
Series code BP variable frequency cable
絕緣代號 YJ 交聯聚乙烯絕緣
Insulation code YJ cross-linked polyethylene insulation
護套代號 V 聚氯乙烯護套
Sheath code V PVC sheath
護套代號 E 無鹵低煙聚烯烴護套
Sheath code E: halogen-free low smoke polyolefin sheath
屏蔽代號 TP2 同心導體+銅帶屏蔽結構
Shielding code TP2 concentric conductor+copper strip shielding structure
屏蔽代號 P12 銅帶屏蔽+銅絲編織雙重屏蔽
Shielding code P12 Copper tape shielding+Copper wire braided dual shielding
屏蔽代號 PX12 銅帶屏蔽+鍍錫銅絲編織雙重屏蔽
Shielding code PX12: Copper tape shielding+Tin plated copper wire braided dual shielding
鎧裝代號 22 鋼帶鎧裝
Armor code 22: Steel belt armor
阻燃代號 ZR 阻燃型
Flame retardant code ZR flame retardant type
