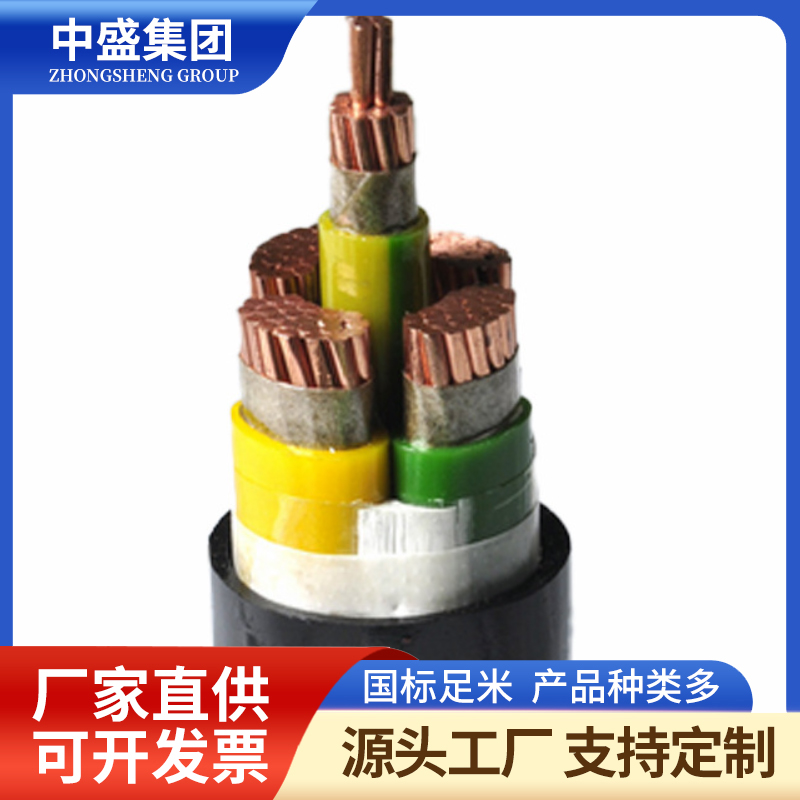

• 產品名稱：Variable frequency cable BPYJVP
• 瀏覽：
• 添加時間：2025-05-14 16:44:42
• 推薦度：
•

變頻電纜主要用于變頻電源和變頻電機之間連接用的電纜，以及額定電壓1kV及以下的輸配電線路中，作輸送電能用。尤其適用于造紙、冶金、紡織、金屬加工、礦山、鐵路和食品加工等行業。

Frequency Converter cable is mainly used as the connection cable between frequency converter power supply and frequency converter motor. And it is also used to transmit power on distribution line of rated voltage 1kv or lower. It is specially used in the field of paper-making, metallurgy, textile mill, metalworking, mine, railway and packinghouse etc.

BPYJVP變頻電纜|BPYJVP變頻電纜

使用條件

1、額定電壓U₀/U：0.6/1kV。

2、電纜導體長期允許zui高溫度為90℃，短路時zui高溫度為250℃（zui長持續時間為5秒）。

3、安裝敷設環境溫度不低于0℃，固定敷設時環境溫度不低于-10℃。

4、電纜允許zui小彎曲半徑不小于15D（D-電纜外徑，mm）。

Working Condition

Rated voltage U₀/U：0.6/1kV

• Max temperature of cable conductor for Long-term working is 90℃. Max. working temperature of cable conductor is 250℃ during short circuit (the longest lasting time shall be no more than 5 seconds).

• Environment temperature for installing is no less than 0℃and -10℃ for fixed installing.

• Min bending radium allowed by cable is no less than 15D. (D means outer diameter of cable with unit “mm”)

|價格產品性能

1、BPYJVP 、BPYJVP2、BPYJVPR、BPYJVP2R、

BPYJVTP2、BPYJVPLPR、BPYJVPLP1R、BPYJVP2PR型

設計采用符合GB/T3956規定的銅導體。原型號前加ZR---表示阻燃型

2、交聯聚乙烯絕緣，耐溫耐候性好。

3、低傳輸阻抗，電磁兼容性好。

4、低工作電容。

5、良好的抗干擾和低輻射性能。

6、對稱的三芯電纜結構設計，具有比四芯電纜更好的傳輸性能。

Product Performance

Design for type BPYJVP 、BPYJVP2、BPYJVPR、

BPYJVP2R、BPYJVTP2、BPYJVPLPR、BPYJVPLP1R、 BPYJVP2PR meets the requirements of soft stranded copper conductor of category 5 stipulated in GB/T3956-1997 standard.

• XLPE insulation, good performance of weather re-sistance and humidity resistance.

• Low transmission impedance; good performance of electromagnetic compatibility

• Low working capacitance

• Good performance of interference resistance and low radiation

• Symmetrical structure design for cable with 3 cores, which has better transmission performance com-pared with cable with 4 cores.

• 主要技術參數				Main Technical Parameter
  1、20℃時導體zui大直流電阻				Max DC resistance of conductor at 20℃
  	20℃時導體zui大直流電阻Ω/km				20℃時導體zui大直流電阻Ω/km
  導體標稱截面	Max DC resistance of conductor at			導體標稱截面
  					Max DC resistance of conductor at 20℃
  mm2		20℃		mm2
  nominal cross section	絞合導體		軟導體	nominal cross section area	絞合導體		軟導體
  area of conductor	Stranded		Flexible	of conductor
  					Stranded conductor		Flexible conductor
  	conductor		conductor
  0.5	36.0		39.0	25	0.727		0.780
  0.75	24.5		26.0	35	0.524		0.554
  1.0	18.1		19.5	50	0.387		0.386
  1.5	12.1		13.3	70	0.268		0.272
  2.5	7.41		7.98	95	0.193		0.206
  4	4.61		4.95	120	0.153		0.161
  6	3.08		3.30	150	0.124		0.129
  10	1.83		1.91	185	0.0991		0.106
  16	1.15		1.21	240	0.0754		0.0801
