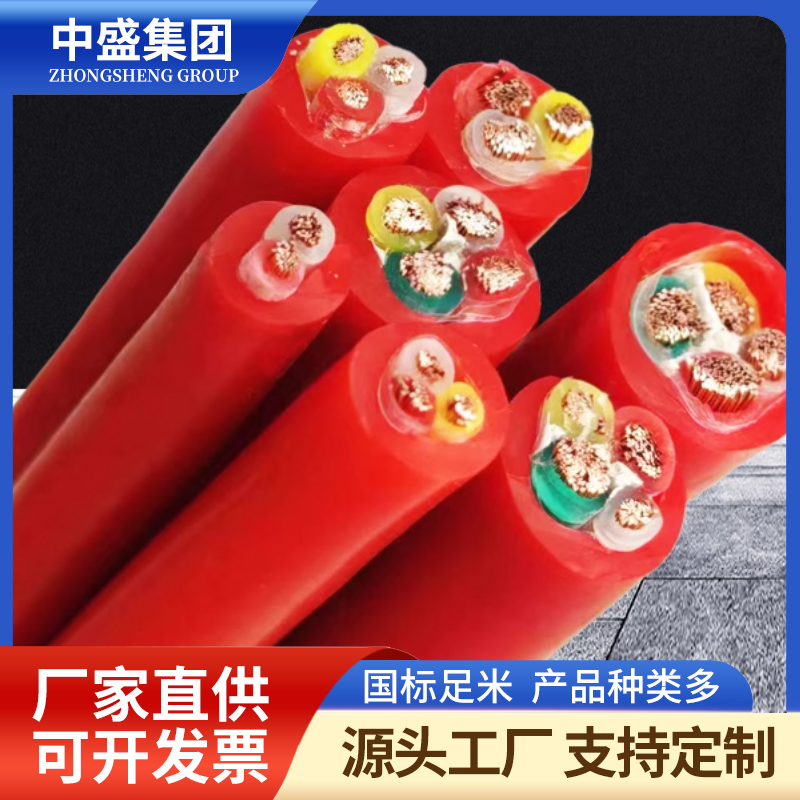

- 產品名稱：Silicone rubber high-temperature shielded cable YGCP
- 瀏覽：
- 添加時間：2025-05-19 14:34:13
- 推薦度：
耐磨耐酸堿電纜YGCP電纜
Wear resistant and acid alkali resistant cable YGCP cable
產品特點及用途:本產品適用于交流額定電壓0.6/1KV及以下固定敷設用動力傳輸線或移動電器用連 接電纜，產品具有耐熱輻射、耐寒、耐酸堿及腐蝕性氣體、防水等特性，電纜結構柔軟，輻射方便，高溫(高寒)環境下電氣性能穩定，抗老化性能突出，使用壽命 長，廣泛用于冶金、電力、石化、電子、汽車制造等行業。
Product features and uses: This product is suitable for power transmission lines for fixed laying or connecting cables for mobile appliances with AC rated voltage of 0.6/1KV and below. The product has the characteristics of heat radiation resistance, cold resistance, acid and alkali resistance, corrosive gas resistance, waterproof, etc. The cable structure is soft, radiation is convenient, electrical performance is stable under high temperature (high cold) environment, anti-aging performance is outstanding, and service life is long. It is widely used in metallurgy, power, petrochemical, electronics, automobile manufacturing and other industries.
型號model | 產品名稱product name |
KGG | 銅芯硅橡膠絕緣硅橡膠護套控制電纜 Copper core silicone rubber insulated silicone rubber sheathed control cable |
KGGP | 銅芯硅橡膠絕緣護套編織屏蔽控制電纜 Copper core silicone rubber insulated sheathed braided shielded control cable |
KGG22 | 銅芯硅橡膠絕緣硅橡膠護套鋼帶鎧裝控制電纜 Copper core silicone rubber insulated silicone rubber sheathed steel tape armored control cable |
KGGR | 銅芯硅橡膠絕緣硅橡膠護套控制軟電纜 Copper core silicone rubber insulated silicone rubber sheathed control flexible cable |
KGG32 | 銅芯硅橡膠絕緣硅橡膠護套細鋼絲鎧裝控制電纜 Copper core silicone rubber insulated silicone rubber sheathed thin steel wire armored control cable |
YGC | 硅橡膠絕緣硅橡膠護套電力電纜 Silicone rubber insulated and silicone rubber sheathed power cable |
YGCR | 硅橡膠絕緣硅橡膠護套移動用電力軟電纜 Silicone rubber insulated silicone rubber sheathed mobile power flexible cable |
YGCP | 硅橡膠絕緣硅橡膠護套銅編織屏蔽電力電纜 Silicone rubber insulated, silicone rubber sheathed, copper braided shielded power cable |
YGC22 | 硅橡膠絕緣硅橡膠護套鋼帶鎧裝電力電纜 Silicone rubber insulated, silicone rubber sheathed, steel tape armored power cable |
JGG | 硅橡膠絕緣硅橡膠護套安裝線 Installation line with silicone rubber insulation and silicone rubber sheath |
JGGR | 硅橡膠絕緣硅橡膠護套移動用安裝軟線 Silicone rubber insulation, silicone rubber sheath, mobile installation flexible wire |
JGGP | 硅橡膠絕緣硅橡膠護套銅編織屏蔽安裝線 Silicone rubber insulation, silicone rubber sheath, copper braided shielding installation wire |
JHXG | 硅橡膠絕緣電機引接線 Silicone rubber insulated motor lead wire |
五：代號名稱和含義
5： Code name and meaning
代號code | 代號含義Meaning of code |
Y | 系列代號(移動軟電纜)Series code (mobile flexible cable) |
G | 硅橡膠silicon rubber |
C | 重型heavy |
22 | 鋼帶鎧裝Steel belt armor |
P | 銅編織屏蔽Copper braided shielding |
R | 多股絞合導體stranded conductor |
J | 電機引接線Motor lead wire |
六：主要技術指標
6： Main technical indicators
1．成品電纜導體(R類)直流電阻(符合GB3956規定)參照附錄A表1和表2。
1. The DC resistance of the finished cable conductor (Class R) (in accordance with GB3956 regulations) shall refer to Table 1 and Table 2 in Appendix A.
2．20℃時絕緣電阻不小于100MΩ/KM
The insulation resistance at 2.20 ℃ shall not be less than 100M Ω/KM
3．成品電纜經受交流50HZ3.5KV/5min電壓試驗不擊穿。
3. The finished cable shall withstand an AC 50HZ3.5KV/5min voltage test without breakdown.
七：基本電纜規格及結構參數
7： Basic cable specifications and structural parameters
