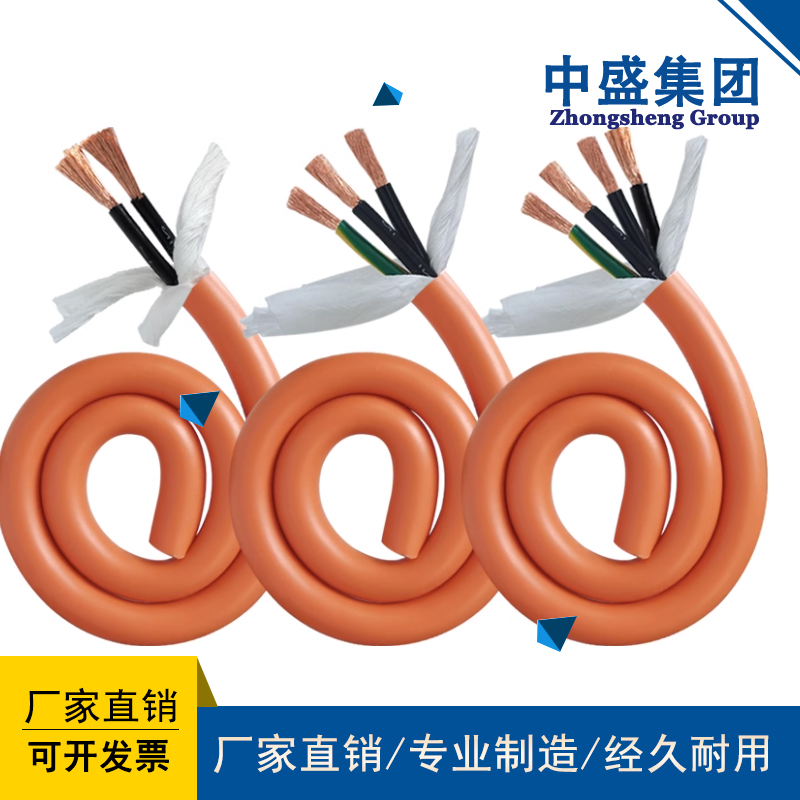

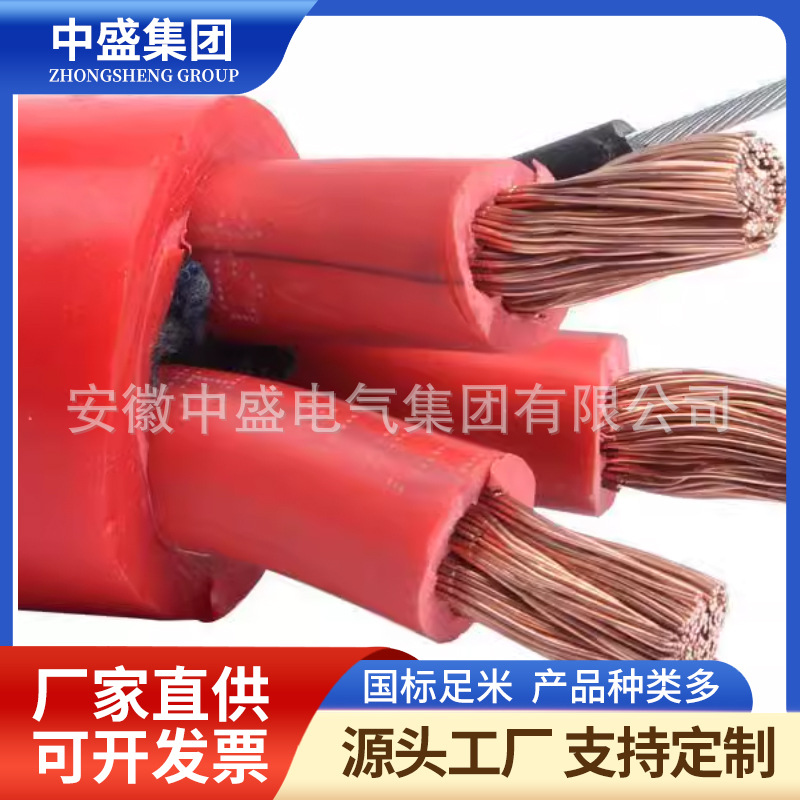

- 產品名稱：Heavy duty rubber sheathed flexible cable YC
- 瀏覽：
- 添加時間：2025-05-19 14:55:20
- 推薦度：
一、通用橡套軟電纜用途
1、 Application of universal rubber sheathed flexible cable
本產品用于交流額定電壓為450/750V及以下的家用電器、電動工具和各類移動電器設備。
This product is used for household appliances, power tools, and various mobile electrical equipment with an AC rated voltage of 450/750V and below.
二、使用特性
2、 Usage characteristics
（1） YZ型額定電壓Uo/U為300/500V，YC型為450/750V。
(1) The rated voltage Uo/U of YZ type is 300/500V, while YC type is 450/750V.
（2） 線芯的長期允許工作溫度不超過65℃。
(2) The long-term allowable working temperature of the wire core shall not exceed 65 ℃.
（3） W型電纜具有耐氣候和一定的耐油性能，適宜于在戶外或接觸油污的場合使用。
(3) W-shaped cables have weather resistance and certain oil resistance, making them suitable for use outdoors or in situations where they come into contact with oil stains.
（4） ZR型電纜具有阻燃性能。
(4) ZR type cables have flame retardant properties.
型號
model
名稱
name
主要用途
Main purpose
YQ,YQW
YQ,YQW
輕型橡套軟電纜
yqw
用于輕型移動電器設備和工具
Used for lightweight mobile electrical equipment and tools
YZ,YZW
YZ,YZW
中型橡套軟電纜
yzw
用于各種移動電器設備和工具
Used for various mobile electrical devices and tools
YC,YCW
YC,YCW
重型橡套軟電纜
ycw
用于各種移動電器設備，能承受較大的機械外力作用
Used for various mobile electrical devices, capable of withstanding large mechanical external forces
