- 產品名稱：扁平電纜丁晴扁電纜YVFRB
- 瀏覽：
- 添加時間：2025-05-29 10:19:02
- 推薦度：
本產品適用于額定電壓0.6/1kv及以下的高溫范圍和惡劣環境內、作電器設備電能傳輸線。它具有優良的耐高溫、阻燃、耐輻射、耐老化、耐臭氧、防水等特性，并具有很好的耐寒性、耐候性。
執行標準:采用企業標準
使用特性:ZR-YVFR阻燃電纜
一：產品特點及用途本產品具有耐寒、柔軟、耐磨、防油等特性，適用于交流額定電壓0.6/1KV及以下具有耐寒、防油等特殊要求的移動電器用連接電纜，目前本產品已廣泛應用于冶金、電力、船舶、汽車制造等行業。
二：產品執行標準 Q/HL009-2004. 阻燃性能試驗執行GB12666-90規定
1、額定電壓U0/U:0.6/1kv
2、電纜允許工作溫度范圍:-60℃~+180℃;
3、短路時(最長持續不超過5S)電纜導體的最高溫度不超過250℃。
4、電纜敷設溫度應不低于-20℃。
5、電纜敷設時的最小彎曲半徑規定如下:
單芯電纜:其彎曲半徑不小于電纜外徑的15D;
三芯電纜:其彎曲半徑不小于電纜外徑的12D。(D=電纜外徑)
本產品適用于交流額定電壓0.6/1KV及以下固定敷設用動力傳輸線或移動電器用連接電纜，產品具有耐熱輻射、耐寒、耐酸堿及腐蝕性氣體、防水等特性，電纜結構柔軟
鋼絲加強型扁平電纜YVFB-G-3*10本產品具有耐寒、柔軟、耐磨、防油等特性。廣泛應用于行車、臺車、傳輸機械等移動設備。如冶金、電力、船舶、物流輸送系統、港口機械。YVFB-G鋼絲加強型扁平電纜，YVFB起重機電纜，行車電纜，起重機電纜 YFFB行車起重電纜 安徽天康YVFB起重機電纜，行車電纜
鋼絲加強型扁平電纜YVFRB-2G廣泛應用于行車、臺車、傳輸機械等移動設備。如冶金、電力、船舶、物流輸送系統、港口機械。動力傳輸及控制電纜。產品特點：
鋼絲加強型扁平電纜YVFRB-2G本產品具有耐寒、柔軟、耐磨、防油等特性。
比圓電纜的彎曲半徑小，節省安裝空間。
可多根線纜重疊捆綁使用。
芯線單排一字型排列時：懸掛長度＞40m 移動速度＞2m/s 建議增加承力鋼絲或紡綸紗
芯線梅花型絞合排列時：懸掛長度＞80m 移動速度＞4-10m/s建議增加承力鋼絲
鋼絲加強型扁平電纜YVFRB-2G線纜結構：
導體：采用多股柔性無氧銅絲符合DIN VDE 0295等級5
絕緣：優質耐油、阻燃丁晴混合體 顏色：彩色線芯或編碼線芯 接地黃綠芯線
護套：優質耐油、阻燃丁晴混合體 顏色：黑色或灰色
YVFB起重機電纜，行車電纜，起重機電纜 YFFB行車起重電纜 安徽天康YVFB起重機電纜，行車電纜，起重機電纜 YFFB行車起重電纜
電氣特性：
額定電壓：U0/U 300/500 V 測試電壓: U 2500V
溫度范圍：℃ 移動安裝：-15℃～+70℃ 固定安裝：-30℃～+70℃
| 型號 | 芯數 | 截面 | 近似寬度mm | 近似厚度mm | 近似密度(kg/km) | 產品大致形狀 |
| YFFB | 2 | 0.75 | 8.0±1.0 | 4.6±0.5 | 69 | 一字排列 |
| YFFB | 3 | 0.75 | 10.4±1.0 | 4.6±0.5 | 91 | 一字排列 |
| YFFB | 4 | 0.75 | 13.7±1.0 | 4.6±0.5 | 119 | 一字排列 |
| YFFB | 66 | 0.75 | 73.5±2.5 | 8.4±0.5 | 1197 | 梅花排列 |
| YFFB(G) | 2 | 0.75 | 13.5±1.0 | 4.6±0.5 | 113 | 一字排列(帶鋼絲) |
| YFFB(G) | 3 | 0.75 | 15.9±1.0 | 4.6±0.5 | 133 | 一字排列(帶鋼絲) |
| YVFB | 2 | 0.75 | 8.0±1.0 | 4.6±0.5 | 69 | 一字排列 |
| YVFB | 3 | 0.75 | 10.4±1.0 | 4.6±0.5 | 91 | 一字排列 |
| YVFB | 4 | 0.75 | 13.7±1.0 | 4.6±0.5 | 119 | 一字排列 |
| YVFB | 66 | 0.75 | 73.5±2.5 | 8.4±0.5 | 1197 | 梅花排列 |
| YVFB(G) | 2 | 0.75 | 13.5±1.0 | 4.6±0.5 | 113 | 一字排列(帶鋼絲) |
| YVFB(G) | 3 | 0.75 | 15.9±1.0 | 4.6±0.5 | 133 | 一字排列(帶鋼絲 |
V本產品適用于額定電壓0.6/1kv及以下的高溫范圍和惡劣環境內、作電器設備電能傳輸線。它具有優良的耐高溫、阻燃、耐輻射、耐老化、耐臭氧、防水等特性，并具有很好的耐寒性、耐候性。
This product is suitable for high temperature range and harsh environment with rated voltage of 0.6/1kv and below, as well as power transmission lines for electrical equipment. It has excellent characteristics such as high temperature resistance, flame retardancy, radiation resistance, aging resistance, ozone resistance, waterproofing, and has good cold resistance and weather resistance.
執行標準:采用企業標準
Execution standard: Adopt enterprise standards
使用特性:ZR-YVFR阻燃電纜
Usage characteristics: ZR-YVFR flame-retardant cable
一：產品特點及用途本產品具有耐寒、柔軟、耐磨、防油等特性，適用于交流額定電壓0.6/1KV及以下具有耐寒、防油等特殊要求的移動電器用連接電纜，目前本產品已廣泛應用于冶金、電力、船舶、汽車制造等行業。
1： Product features and uses: This product has the characteristics of cold resistance, softness, wear resistance, oil resistance, etc. It is suitable for connecting cables for mobile electrical appliances with special requirements for cold resistance, oil resistance, etc. for AC rated voltage of 0.6/1KV and below. Currently, this product has been widely used in industries such as metallurgy, power, shipbuilding, and automobile manufacturing.
二：產品執行標準 Q/HL009-2004. 阻燃性能試驗執行GB12666-90規定
2： Product execution standard Q/HL009-2004. Flame retardant performance test shall comply with GB12666-90 regulations
1、額定電壓U0/U:0.6/1kv
1. Rated voltage U0/U: 0.6/1kv
2、電纜允許工作溫度范圍:-60℃~+180℃;
2. Allowable working temperature range for cables: -60 ℃~+180 ℃;
3、短路時(最長持續不超過5S)電纜導體的最高溫度不超過250℃。
3. The maximum temperature of the cable conductor during a short circuit (with a maximum duration of no more than 5 seconds) shall not exceed 250 ℃.
4、電纜敷設溫度應不低于-20℃。
4. The temperature for cable laying should not be lower than -20 ℃.
5、電纜敷設時的最小彎曲半徑規定如下:
5. The minimum bending radius for cable laying is specified as follows:
單芯電纜:其彎曲半徑不小于電纜外徑的15D;
Single core cable: Its bending radius shall not be less than 15D of the outer diameter of the cable;
三芯電纜:其彎曲半徑不小于電纜外徑的12D。(D=電纜外徑)
Three core cable: Its bending radius shall not be less than 12D of the outer diameter of the cable. (D=outer diameter of the cable)
本產品適用于交流額定電壓0.6/1KV及以下固定敷設用動力傳輸線或移動電器用連接電纜，產品具有耐熱輻射、耐寒、耐酸堿及腐蝕性氣體、防水等特性，電纜結構柔軟
This product is suitable for fixed installation of power transmission lines or connecting cables for mobile appliances with AC rated voltage of 0.6/1KV and below. The product has the characteristics of heat radiation resistance, cold resistance, acid and alkali resistance, corrosive gas resistance, waterproofing, etc. The cable structure is soft
鋼絲加強型扁平電纜YVFRB-2G線纜結構：
Wire reinforced flat cable YVFRB-2G cable structure:
導體：采用多股柔性無氧銅絲符合DIN VDE 0295等級5
Conductor: Made of multi strand flexible oxygen free copper wire in accordance with DIN VDE 0295 grade 5
絕緣：優質耐油、阻燃丁晴混合體 顏色：彩色線芯或編碼線芯 接地黃綠芯線
Insulation: High quality oil resistant, flame-retardant nitrile mixture Color: Colored core or coded core Grounding yellow green core wire
護套：優質耐油、阻燃丁晴混合體 顏色：黑色或灰色
Sheath: High quality oil resistant, flame-retardant nitrile mixture color: black or gray
YVFB起重機電纜，行車電纜，起重機電纜 YFFB行車起重電纜 安徽天康YVFB起重機電纜，行車電纜，起重機電纜 YFFB行車起重電纜
YVFB Crane Cable, Crane Cable, YFFB Crane Crane Cable Anhui Tiankang YVFB Crane Cable, Crane Cable, YFFB Crane Crane Cable
電氣特性：
Electrical characteristics:
額定電壓：U0/U 300/500 V 測試電壓: U 2500V
Rated voltage: U0/U 300/500 V Test voltage: U 2500V
溫度范圍：℃ 移動安裝：-15℃～+70℃ 固定安裝：-30℃～+70℃
Temperature range: ℃ Mobile installation: -15 ℃~+70 ℃ Fixed installation: -30 ℃~+70 ℃
型號 芯數 截面 近似寬度mm 近似厚度mm 近似密度(kg/km)
Model Number of cores Section approximate width mm approximate thickness mm approximate density (kg/km)
產品大致形狀
Product rough shape
YFFB 2 0.75 8.0±1.0 4.6±0.5 69 一字排列
YFFB 2 0.75 8.0 ± 1.0 4.6 ± 0.5 69 arranged in a straight line
YFFB 3 0.75 10.4±1.0 4.6±0.5 91 一字排列
YFFB 3 0.75 10.4 ± 1.0 4.6 ± 0.5 91 arranged in a straight line
YFFB 4 0.75 13.7±1.0 4.6±0.5 119 一字排列
YFFB 4 0.75 13.7 ± 1.0 4.6 ± 0.5 119 arranged in a straight line
YFFB 66 0.75 73.5±2.5 8.4±0.5 1197 梅花排列
YFFB 66 0.75 73.5 ± 2.5 8.4 ± 0.5 1197 plum blossom arrangement
YFFB(G) 2 0.75 13.5±1.0 4.6±0.5 113 一字排列(帶鋼絲)
YFFB (G) 2 0.75 13.5 ± 1.0 4.6 ± 0.5 113 arranged in a straight line (with steel wire)
YFFB(G) 3 0.75 15.9±1.0 4.6±0.5 133 一字排列(帶鋼絲)
YFFB (G) 3 0.75 15.9 ± 1.0 4.6 ± 0.5 133 arranged in a straight line (with steel wire)
YVFB 2 0.75 8.0±1.0 4.6±0.5 69 一字排列
YVFB 2 0.75 8.0 ± 1.0 4.6 ± 0.5 69 arranged in a straight line
YVFB 3 0.75 10.4±1.0 4.6±0.5 91 一字排列
YVFB 3 0.75 10.4 ± 1.0 4.6 ± 0.5 91 arranged in a straight line
YVFB 4 0.75 13.7±1.0 4.6±0.5 119 一字排列
YVFB 4 0.75 13.7 ± 1.0 4.6 ± 0.5 119 arranged in a straight line
YVFB 66 0.75 73.5±2.5 8.4±0.5 1197 梅花排列
YVFB 66 0.75 73.5 ± 2.5 8.4 ± 0.5 1197 plum blossom arrangement
YVFB(G) 2 0.75 13.5±1.0 4.6±0.5 113 一字排列(帶鋼絲)
YVFB (G) 2 0.75 13.5 ± 1.0 4.6 ± 0.5 113 arranged in a straight line (with steel wire)
YVFB(G) 3 0.75 15.9±1.0 4.6±0.5 133 一字排列(帶鋼絲
YVFB (G) 3 0.75 15.9 ± 1.0 4.6 ± 0.5 133 arranged in a straight line (with steel wire)本產品適用于額定電壓0.6/1kv及以下的高溫范圍和惡劣環境內、作電器設備電能傳輸線。它具有優良的耐高溫、阻燃、耐輻射、耐老化、耐臭氧、防水等特性，并具有很好的耐寒性、耐候性。
This product is suitable for high temperature range and harsh environment with rated voltage of 0.6/1kv and below, as well as power transmission lines for electrical equipment. It has excellent characteristics such as high temperature resistance, flame retardancy, radiation resistance, aging resistance, ozone resistance, waterproofing, and has good cold resistance and weather resistance.
執行標準:采用企業標準
Execution standard: Adopt enterprise standards
使用特性:ZR-YVFR阻燃電纜
Usage characteristics: ZR-YVFR flame-retardant cable
一：產品特點及用途本產品具有耐寒、柔軟、耐磨、防油等特性，適用于交流額定電壓0.6/1KV及以下具有耐寒、防油等特殊要求的移動電器用連接電纜，目前本產品已廣泛應用于冶金、電力、船舶、汽車制造等行業。
1： Product features and uses: This product has the characteristics of cold resistance, softness, wear resistance, oil resistance, etc. It is suitable for connecting cables for mobile electrical appliances with special requirements for cold resistance, oil resistance, etc. for AC rated voltage of 0.6/1KV and below. Currently, this product has been widely used in industries such as metallurgy, power, shipbuilding, and automobile manufacturing.
二：產品執行標準 Q/HL009-2004. 阻燃性能試驗執行GB12666-90規定
2： Product execution standard Q/HL009-2004. Flame retardant performance test shall comply with GB12666-90 regulations
1、額定電壓U0/U:0.6/1kv
1. Rated voltage U0/U: 0.6/1kv
2、電纜允許工作溫度范圍:-60℃~+180℃;
2. Allowable working temperature range for cables: -60 ℃~+180 ℃;
3、短路時(最長持續不超過5S)電纜導體的最高溫度不超過250℃。
3. The maximum temperature of the cable conductor during a short circuit (with a maximum duration of no more than 5 seconds) shall not exceed 250 ℃.
4、電纜敷設溫度應不低于-20℃。
4. The temperature for cable laying should not be lower than -20 ℃.
5、電纜敷設時的最小彎曲半徑規定如下:
5. The minimum bending radius for cable laying is specified as follows:
單芯電纜:其彎曲半徑不小于電纜外徑的15D;
Single core cable: Its bending radius shall not be less than 15D of the outer diameter of the cable;
三芯電纜:其彎曲半徑不小于電纜外徑的12D。(D=電纜外徑)
Three core cable: Its bending radius shall not be less than 12D of the outer diameter of the cable. (D=outer diameter of the cable)
本產品適用于交流額定電壓0.6/1KV及以下固定敷設用動力傳輸線或移動電器用連接電纜，產品具有耐熱輻射、耐寒、耐酸堿及腐蝕性氣體、防水等特性，電纜結構柔軟
This product is suitable for fixed installation of power transmission lines or connecting cables for mobile appliances with AC rated voltage of 0.6/1KV and below. The product has the characteristics of heat radiation resistance, cold resistance, acid and alkali resistance, corrosive gas resistance, waterproofing, etc. The cable structure is soft
鋼絲加強型扁平電纜YVFB-G-3*10本產品具有耐寒、柔軟、耐磨、防油等特性。廣泛應用于行車、臺車、傳輸機械等移動設備。如冶金、電力、船舶、物流輸送系統、港口機械。YVFB-G鋼絲加強型扁平電纜，YVFB起重機電纜，行車電纜，起重機電纜 YFFB行車起重電纜 安徽天康YVFB起重機電纜，行車電纜
The steel wire reinforced flat cable YVFB-G-3 * 10 has the characteristics of cold resistance, softness, wear resistance, and oil resistance. Widely used in mobile devices such as vehicles, trolleys, and transmission machinery. Such as metallurgy, electricity, ships, logistics and transportation systems, and port machinery. YVFB-G steel wire reinforced flat cable, YVFB crane cable, crane cable, YFFB crane cable, Anhui Tiankang YVFB crane cable, crane cable
鋼絲加強型扁平電纜YVFRB-2G廣泛應用于行車、臺車、傳輸機械等移動設備。如冶金、電力、船舶、物流輸送系統、港口機械。動力傳輸及控制電纜。產品特點：
The steel wire reinforced flat cable YVFRB-2G is widely used in mobile equipment such as cranes, trolleys, and transmission machinery. Such as metallurgy, electricity, ships, logistics and transportation systems, and port machinery. Power transmission and control cables. Product features:
鋼絲加強型扁平電纜YVFRB-2G本產品具有耐寒、柔軟、耐磨、防油等特性。
The steel wire reinforced flat cable YVFRB-2G has the characteristics of cold resistance, softness, wear resistance, and oil resistance.
比圓電纜的彎曲半徑小，節省安裝空間。
The bending radius is smaller than that of circular cables, saving installation space.
可多根線纜重疊捆綁使用。
Multiple cables can be overlapped and bundled for use.
芯線單排一字型排列時：懸掛長度＞40m 移動速度＞2m/s 建議增加承力鋼絲或紡綸紗
When the core wire is arranged in a single row in a straight line: suspension length>40m, moving speed>2m/s, it is recommended to increase the load-bearing steel wire or spun nylon yarn
芯線梅花型絞合排列時：懸掛長度＞80m 移動速度＞4-10m/s建議增加承力鋼絲
When the core wire is twisted in a plum blossom pattern: suspension length>80m, moving speed>4-10m/s, it is recommended to increase the load-bearing steel wire
鋼絲加強型扁平電纜YVFRB-2G線纜結構：
Wire reinforced flat cable YVFRB-2G cable structure:
導體：采用多股柔性無氧銅絲符合DIN VDE 0295等級5
Conductor: Made of multi strand flexible oxygen free copper wire in accordance with DIN VDE 0295 grade 5
絕緣：優質耐油、阻燃丁晴混合體 顏色：彩色線芯或編碼線芯 接地黃綠芯線
Insulation: High quality oil resistant, flame-retardant nitrile mixture Color: Colored core or coded core Grounding yellow green core wire
護套：優質耐油、阻燃丁晴混合體 顏色：黑色或灰色
Sheath: High quality oil resistant, flame-retardant nitrile mixture color: black or gray
YVFB起重機電纜，行車電纜，起重機電纜 YFFB行車起重電纜 安徽天康YVFB起重機電纜，行車電纜，起重機電纜 YFFB行車起重電纜
YVFB Crane Cable, Crane Cable, YFFB Crane Crane Cable Anhui Tiankang YVFB Crane Cable, Crane Cable, YFFB Crane Crane Cable
電氣特性：
Electrical characteristics:
額定電壓：U0/U 300/500 V 測試電壓: U 2500V
Rated voltage: U0/U 300/500 V Test voltage: U 2500V
溫度范圍：℃ 移動安裝：-15℃～+70℃ 固定安裝：-30℃～+70℃
Temperature range: ℃ Mobile installation: -15 ℃~+70 ℃ Fixed installation: -30 ℃~+70 ℃
型號 芯數 截面 近似寬度mm 近似厚度mm 近似密度(kg/km) 產品大致形狀
Model Number of cores Section approximate width mm approximate thickness mm approximate density (kg/km) Product approximate shape
YFFB 2 0.75 8.0±1.0 4.6±0.5 69 一字排列
YFFB 2 0.75 8.0 ± 1.0 4.6 ± 0.5 69 arranged in a straight line
YFFB 3 0.75 10.4±1.0 4.6±0.5 91 一字排列
YFFB 3 0.75 10.4 ± 1.0 4.6 ± 0.5 91 arranged in a straight line
YFFB 4 0.75 13.7±1.0 4.6±0.5 119 一字排列
YFFB 4 0.75 13.7 ± 1.0 4.6 ± 0.5 119 arranged in a straight line
YFFB 66 0.75 73.5±2.5 8.4±0.5 1197 梅花排列
YFFB 66 0.75 73.5 ± 2.5 8.4 ± 0.5 1197 plum blossom arrangement
YFFB(G) 2 0.75 13.5±1.0 4.6±0.5 113 一字排列(帶鋼絲)
YFFB (G) 2 0.75 13.5 ± 1.0 4.6 ± 0.5 113 arranged in a straight line (with steel wire)
YFFB(G) 3 0.75 15.9±1.0 4.6±0.5 133 一字排列(帶鋼絲)
YFFB (G) 3 0.75 15.9 ± 1.0 4.6 ± 0.5 133 arranged in a straight line (with steel wire)
YVFB 2 0.75 8.0±1.0 4.6±0.5 69 一字排列
YVFB 2 0.75 8.0 ± 1.0 4.6 ± 0.5 69 arranged in a straight line
YVFB 3 0.75 10.4±1.0 4.6±0.5 91 一字排列
YVFB 3 0.75 10.4 ± 1.0 4.6 ± 0.5 91 arranged in a straight line
YVFB 4 0.75 13.7±1.0 4.6±0.5 119 一字排列
YVFB 4 0.75 13.7 ± 1.0 4.6 ± 0.5 119 arranged in a straight line
YVFB 66 0.75 73.5±2.5 8.4±0.5 1197 梅花排列
YVFB 66 0.75 73.5 ± 2.5 8.4 ± 0.5 1197 plum blossom arrangement
YVFB(G) 2 0.75 13.5±1.0 4.6±0.5 113 一字排列(帶鋼絲)
YVFB (G) 2 0.75 13.5 ± 1.0 4.6 ± 0.5 113 arranged in a straight line (with steel wire)
YVFB(G) 3 0.75 15.9±1.0 4.6±0.5 133 一字排列(帶鋼絲
YVFB (G) 3 0.75 15.9 ± 1.0 4.6 ± 0.5 133 arranged in a straight line (with steel wire)本產品適用于額定電壓0.6/1kv及以下的高溫范圍和惡劣環境內、作電器設備電能傳輸線。它具有優良的耐高溫、阻燃、耐輻射、耐老化、耐臭氧、防水等特性，并具有很好的耐寒性、耐候性。
This product is suitable for high temperature range and harsh environment with rated voltage of 0.6/1kv and below, as well as power transmission lines for electrical equipment. It has excellent characteristics such as high temperature resistance, flame retardancy, radiation resistance, aging resistance, ozone resistance, waterproofing, and has good cold resistance and weather resistance.
執行標準:采用企業標準
Execution standard: Adopt enterprise standards
使用特性:ZR-YVFR阻燃電纜
Usage characteristics: ZR-YVFR flame-retardant cable
一：產品特點及用途本產品具有耐寒、柔軟、耐磨、防油等特性，適用于交流額定電壓0.6/1KV及以下具有耐寒、防油等特殊要求的移動電器用連接電纜，目前本產品已廣泛應用于冶金、電力、船舶、汽車制造等行業。
1： Product features and uses: This product has the characteristics of cold resistance, softness, wear resistance, oil resistance, etc. It is suitable for connecting cables for mobile electrical appliances with special requirements for cold resistance, oil resistance, etc. for AC rated voltage of 0.6/1KV and below. Currently, this product has been widely used in industries such as metallurgy, power, shipbuilding, and automobile manufacturing.
二：產品執行標準 Q/HL009-2004. 阻燃性能試驗執行GB12666-90規定
2： Product execution standard Q/HL009-2004. Flame retardant performance test shall comply with GB12666-90 regulations
1、額定電壓U0/U:0.6/1kv
1. Rated voltage U0/U: 0.6/1kv
2、電纜允許工作溫度范圍:-60℃~+180℃;
2. Allowable working temperature range for cables: -60 ℃~+180 ℃;
3、短路時(最長持續不超過5S)電纜導體的最高溫度不超過250℃。
3. The maximum temperature of the cable conductor during a short circuit (with a maximum duration of no more than 5 seconds) shall not exceed 250 ℃.
4、電纜敷設溫度應不低于-20℃。
4. The temperature for cable laying should not be lower than -20 ℃.
5、電纜敷設時的最小彎曲半徑規定如下:
5. The minimum bending radius for cable laying is specified as follows:
單芯電纜:其彎曲半徑不小于電纜外徑的15D;
Single core cable: Its bending radius shall not be less than 15D of the outer diameter of the cable;
三芯電纜:其彎曲半徑不小于電纜外徑的12D。(D=電纜外徑)
Three core cable: Its bending radius shall not be less than 12D of the outer diameter of the cable. (D=outer diameter of the cable)
本產品適用于交流額定電壓0.6/1KV及以下固定敷設用動力傳輸線或移動電器用連接電纜，產品具有耐熱輻射、耐寒、耐酸堿及腐蝕性氣體、防水等特性，電纜結構柔軟
This product is suitable for fixed installation of power transmission lines or connecting cables for mobile appliances with AC rated voltage of 0.6/1KV and below. The product has the characteristics of heat radiation resistance, cold resistance, acid and alkali resistance, corrosive gas resistance, waterproofing, etc. The cable structure is soft

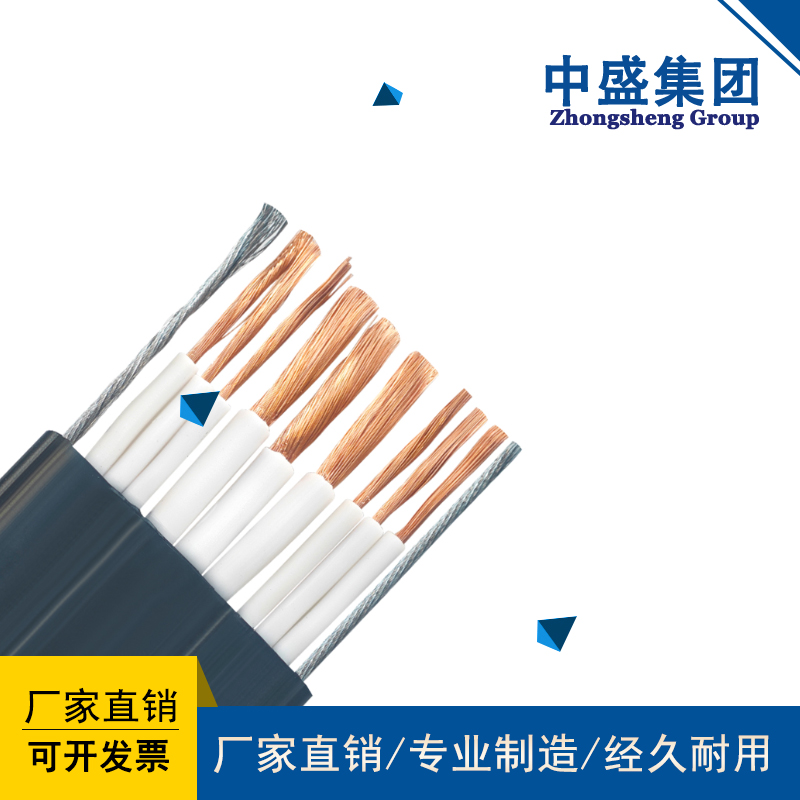

鋼絲加強型扁平電纜YVFB-G-3*10本產品具有耐寒、柔軟、耐磨、防油等特性。廣泛應用于行車、臺車、傳輸機械等移動設備。如冶金、電力、船舶、物流輸送系統、港口機械。YVFB-G鋼絲加強型扁平電纜，YVFB起重機電纜，行車電纜，起重機電纜 YFFB行車起重電纜 安徽天康YVFB起重機電纜，行車電纜
The steel wire reinforced flat cable YVFB-G-3 * 10 has the characteristics of cold resistance, softness, wear resistance, and oil resistance. Widely used in mobile devices such as vehicles, trolleys, and transmission machinery. Such as metallurgy, electricity, ships, logistics and transportation systems, and port machinery. YVFB-G steel wire reinforced flat cable, YVFB crane cable, crane cable, YFFB crane cable, Anhui Tiankang YVFB crane cable, crane cable
鋼絲加強型扁平電纜YVFRB-2G廣泛應用于行車、臺車、傳輸機械等移動設備。如冶金、電力、船舶、物流輸送系統、港口機械。動力傳輸及控制電纜。產品特點：
The steel wire reinforced flat cable YVFRB-2G is widely used in mobile equipment such as cranes, trolleys, and transmission machinery. Such as metallurgy, electricity, ships, logistics and transportation systems, and port machinery. Power transmission and control cables. Product features:
鋼絲加強型扁平電纜YVFRB-2G本產品具有耐寒、柔軟、耐磨、防油等特性。
The steel wire reinforced flat cable YVFRB-2G has the characteristics of cold resistance, softness, wear resistance, and oil resistance.
比圓電纜的彎曲半徑小，節省安裝空間。
The bending radius is smaller than that of circular cables, saving installation space.
可多根線纜重疊捆綁使用。
Multiple cables can be overlapped and bundled for use.
芯線單排一字型排列時：懸掛長度＞40m 移動速度＞2m/s 建議增加承力鋼絲或紡綸紗
When the core wire is arranged in a single row in a straight line: suspension length>40m, moving speed>2m/s, it is recommended to increase the load-bearing steel wire or spun nylon yarn
芯線梅花型絞合排列時：懸掛長度＞80m 移動速度＞4-10m/s建議增加承力鋼絲
When the core wire is twisted in a plum blossom pattern: suspension length>80m, moving speed>4-10m/s, it is recommended to increase the load-bearing steel wire
鋼絲加強型扁平電纜YVFRB-2G線纜結構：
Wire reinforced flat cable YVFRB-2G cable structure:
導體：采用多股柔性無氧銅絲符合DIN VDE 0295等級5
Conductor: Made of multi strand flexible oxygen free copper wire in accordance with DIN VDE 0295 grade 5
絕緣：優質耐油、阻燃丁晴混合體 顏色：彩色線芯或編碼線芯 接地黃綠芯線
Insulation: High quality oil resistant, flame-retardant nitrile mixture Color: Colored core or coded core Grounding yellow green core wire
護套：優質耐油、阻燃丁晴混合體 顏色：黑色或灰色
Sheath: High quality oil resistant, flame-retardant nitrile mixture color: black or gray
YVFB起重機電纜，行車電纜，起重機電纜 YFFB行車起重電纜 安徽天康YVFB起重機電纜，行車電纜，起重機電纜 YFFB行車起重電纜
YVFB Crane Cable, Crane Cable, YFFB Crane Crane Cable Anhui Tiankang YVFB Crane Cable, Crane Cable, YFFB Crane Crane Cable
電氣特性：
Electrical characteristics:
額定電壓：U0/U 300/500 V 測試電壓: U 2500V
Rated voltage: U0/U 300/500 V Test voltage: U 2500V
溫度范圍：℃ 移動安裝：-15℃～+70℃ 固定安裝：-30℃～+70℃
Temperature range: ℃ Mobile installation: -15 ℃~+70 ℃ Fixed installation: -30 ℃~+70 ℃
型號 芯數 截面 近似寬度mm 近似厚度mm 近似密度(kg/km) 產品大致形狀
Model Number of cores Section approximate width mm approximate thickness mm approximate density (kg/km) Product approximate shape
YFFB 2 0.75 8.0±1.0 4.6±0.5 69 一字排列
YFFB 2 0.75 8.0 ± 1.0 4.6 ± 0.5 69 arranged in a straight line
YFFB 3 0.75 10.4±1.0 4.6±0.5 91 一字排列
YFFB 3 0.75 10.4 ± 1.0 4.6 ± 0.5 91 arranged in a straight line
YFFB 4 0.75 13.7±1.0 4.6±0.5 119 一字排列
YFFB 4 0.75 13.7 ± 1.0 4.6 ± 0.5 119 arranged in a straight line
YFFB 66 0.75 73.5±2.5 8.4±0.5 1197 梅花排列
YFFB 66 0.75 73.5 ± 2.5 8.4 ± 0.5 1197 plum blossom arrangement
YFFB(G) 2 0.75 13.5±1.0 4.6±0.5 113 一字排列(帶鋼絲)
YFFB (G) 2 0.75 13.5 ± 1.0 4.6 ± 0.5 113 arranged in a straight line (with steel wire)
YFFB(G) 3 0.75 15.9±1.0 4.6±0.5 133 一字排列(帶鋼絲)
YFFB (G) 3 0.75 15.9 ± 1.0 4.6 ± 0.5 133 arranged in a straight line (with steel wire)
YVFB 2 0.75 8.0±1.0 4.6±0.5 69 一字排列
YVFB 2 0.75 8.0 ± 1.0 4.6 ± 0.5 69 arranged in a straight line
YVFB 3 0.75 10.4±1.0 4.6±0.5 91 一字排列
YVFB 3 0.75 10.4 ± 1.0 4.6 ± 0.5 91 arranged in a straight line
YVFB 4 0.75 13.7±1.0 4.6±0.5 119 一字排列
YVFB 4 0.75 13.7 ± 1.0 4.6 ± 0.5 119 arranged in a straight line
YVFB 66 0.75 73.5±2.5 8.4±0.5 1197 梅花排列
YVFB 66 0.75 73.5 ± 2.5 8.4 ± 0.5 1197 plum blossom arrangement
YVFB(G) 2 0.75 13.5±1.0 4.6±0.5 113 一字排列(帶鋼絲)
YVFB (G) 2 0.75 13.5 ± 1.0 4.6 ± 0.5 113 arranged in a straight line (with steel wire)
YVFB(G) 3 0.75 15.9±1.0 4.6±0.5 133 一字排列(帶鋼絲
YVFB (G) 3 0.75 15.9 ± 1.0 4.6 ± 0.5 133 arranged in a straight line (with steel wire)
