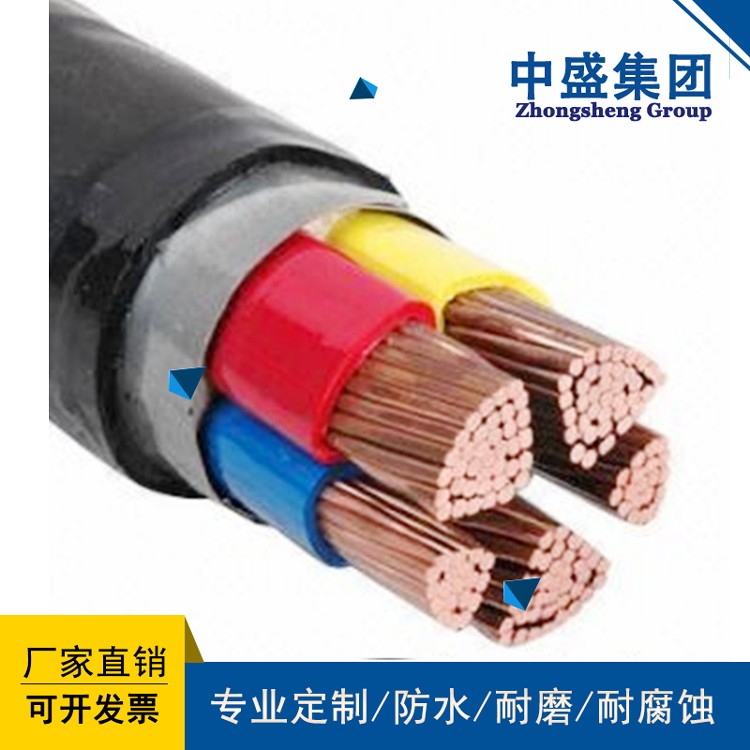

- 產品名稱：變頻電纜 BPYJVPX12R-TK
- 瀏覽：
- 添加時間：2025-06-02 09:22:43
- 推薦度：
變頻電纜 BPYJVPX12R-TK主要用于變頻電源和變頻電機之間連接用的電纜,以及額定電壓1KV及以下的輸配電線路中,作輸送電能用.尤其適用于造紙、冶金、金屬加工、礦山、鐵路和食品加工等行業。 The variable frequency cable BPYJVPX12R-TK is mainly used as a cable for connecting variable frequency power supplies and variable frequency motors, as well as for transmitting electrical energy in transmission and distribution lines with a rated voltage of 1KV or below Especially suitable for industries such as papermaking, metallurgy, metal processing, mining, railways, and food processing. 變頻電纜 BPYJVPX12R-TK使用條件 Usage conditions for frequency conversion cable BPYJVPX12R-TK 1、額定電壓U0/U：0.6/1KV. 1. Rated voltage U0/U: 0.6/1KV 2、電纜導體長期允許zui高溫度為90度,短路時zui高溫度250度 2. The maximum allowable temperature for cable conductors in the long term is 90 degrees Celsius, and the maximum allowable temperature during short circuits is 250 degrees Celsius 3、安裝敷設環境溫度不低于0度,固定敷設時環境溫度不低于-10度. 3. The installation and laying environment temperature shall not be lower than 0 degrees, and the fixed laying environment temperature shall not be lower than -10 degrees 4、電纜允許zui小彎曲半徑不小于15D（D-電纜外徑,mm） 4. The maximum allowable bending radius for cables is not less than 15D (D - cable outer diameter, mm） 產品性能 Product Performance 1、BRYJVP12R-TK、ZRBPYJVP12R-TK型設計采用符合GB/T3956-1997規定的第5類軟絞合銅導體。 1. The BRYJVP12R-TK and ZRBPYJVP12R-TK designs use Class 5 soft stranded copper conductors that comply with GB/T3956-1997 regulations. 2、交聯聚乙烯絕緣、耐溫耐候性好。 2. Cross linked polyethylene insulation has good temperature and weather resistance. 3、低傳輸阻抗，電磁兼容性好。 3. Low transmission impedance, good electromagnetic compatibility. 4、低工作電容 4. Low working capacitance 5、良好的抗干擾和低輻射性能。 5. Good anti-interference and low radiation performance. 6、對稱的三芯電纜結構設計，具有比四芯電纜更好的傳輸性能。 6. The symmetrical three core cable structure design has better transmission performance than four core cables. 變頻電纜型號名稱 Variable frequency cable model name BPYJVTP2-TK 銅芯交聯聚乙烯絕緣聚氯乙烯護套銅絲纏繞銅帶繞包屏蔽變頻器用回路電纜。 BPYJVTP2-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper wire wrapped copper tape wrapped shielded frequency converter circuit cable. ZRBPYJVTP2-TK銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套銅絲纏繞銅帶繞包屏蔽變頻器用回路電纜。 ZRBPYJVTP2-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper wire wrapped copper tape wrapped shielded frequency converter circuit cable. BPYJVP12-TK銅芯交聯聚乙烯絕緣聚氯乙烯護套銅帶繞包銅絲編織雙重屏蔽變頻器用回路電纜。 BPYJVP12-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped copper wire braided double shielded frequency converter circuit cable. ZRBPYJVP12-TK銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套銅帶繞包銅絲編織雙重屏蔽變頻器用回路電纜。 ZRBPYJVP12-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper tape wrapped copper wire braided double shielded frequency converter circuit cable. BPYJVPX12R-TK銅芯交聯聚乙烯絕緣聚氯乙烯護套銅帶繞包鍍錫銅絲編織雙重屏蔽變頻器用回路電纜。 BPYJVPX12R-TK copper core cross-linked polyethylene insulated polyvinyl chloride sheathed copper tape wrapped tin plated copper wire braided double shielded frequency converter circuit cable. ZRBPYJVPX12R-TK銅芯交聯聚乙烯絕緣阻燃聚氯乙烯護套銅帶繞包鍍錫銅絲編織雙重屏蔽變頻器用回路電纜。 ZRBPYJVPX12R-TK copper core cross-linked polyethylene insulated flame-retardant polyvinyl chloride sheathed copper tape wrapped tin plated copper wire braided double shielded frequency converter circuit cable. 變頻電纜規格范圍 Range of specifications for variable frequency cables 型號 芯數 標稱截面（MM） Model, number of cores, nominal cross-section (mm) BPYJVTP2-TK 3 1.5~240 BPYJVTP2-TK 3 1.5~240 ZRBPYJVTP2-TK 3 1.5~240 ZRBPYJVTP2-TK 3 1.5~240 BPYJVP12R-TK 3+3 主線芯截面:2.5-240,副線芯截面:0.5-35 BPYJVP12R-TK 3+3 main core section: 2.5-240, secondary core section: 0.5-35 BPYJVPX12R-TK 3+3 主線芯截面:2.5-240,副線芯截面:0.5-35 BPYJVPX12R-TK 3+3 main core section: 2.5-240, secondary core section: 0.5-35 ZRBPYJVP12R-TK 3+3 主線芯截面:2.5-240,副線芯截面:0.5-35 ZRBPYJVP12R-TK 3+3 main core section: 2.5-240, secondary core section: 0.5-35 ZRBPYJVPX12-TK 3+3 主線芯截面:2.5-240,副線芯截面:0.5-35 ZRBPYJVPX12-TK 3+3 main core section: 2.5-240, secondary core section: 0.5-35 注:另可根據用戶需要提供鎧裝結構變頻電纜. Note: Armored structure frequency conversion cables can also be provided according to user needs 型號說明 Model Description 項目 代號 說明 Project code description 系列代號 BP 變頻電纜 Series code BP variable frequency cable 絕緣代號 YJ 交聯聚乙烯絕緣 Insulation code YJ cross-linked polyethylene insulation 護套代號 V 聚氯乙烯護套 Sheath code V PVC sheath 護套代號 E 無鹵低煙聚烯烴護套 Sheath code E: halogen-free low smoke polyolefin sheath 屏蔽代號 TP2 同心導體+銅帶屏蔽結構 Shielding code TP2 concentric conductor+copper strip shielding structure 屏蔽代號 P12 銅帶屏蔽+銅絲編織雙重屏蔽 Shielding code P12 Copper tape shielding+Copper wire braided dual shielding 屏蔽代號 PX12 銅帶屏蔽+鍍錫銅絲編織雙重屏蔽 Shielding code PX12: Copper tape shielding+Tin plated copper wire braided dual shielding 鎧裝代號 22 鋼帶鎧裝 Armor code 22: Steel belt armor 阻燃代號 ZR 阻燃型 Flame retardant code ZR flame retardant type
